← Volver atrás

FRONT MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

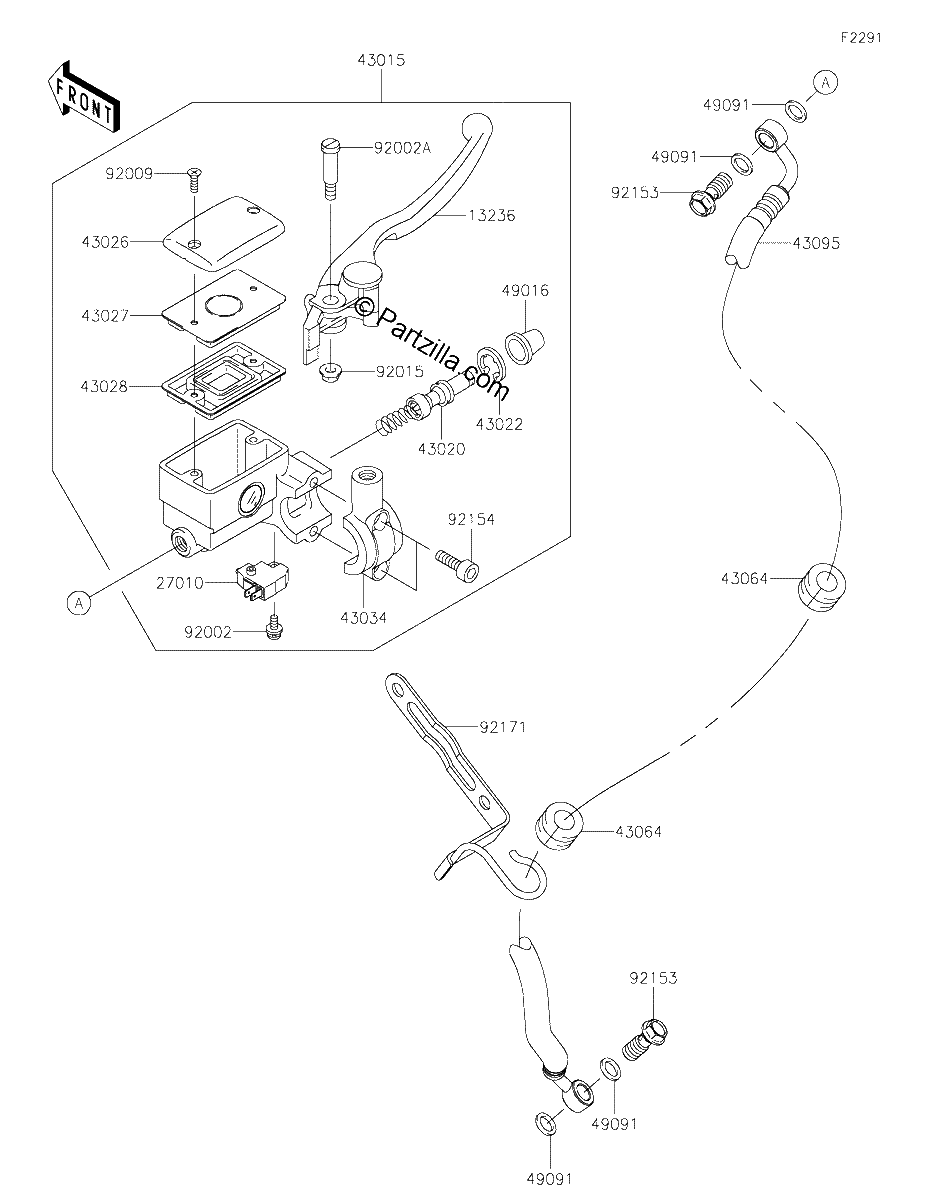

Diagrama de FRONT MASTER CYLINDER

Repuestos

#13236
13236-1315
LEVER-COMP,FRONT BRAKE
$52.44¢26 220
1
#27010
27010-0762
SWITCH,BRAKE
$36.71¢18 354
1
#43015
43015-0701
CYLINDER Assembly MASTER,Front
$482.56¢241 282
1
#43020
43020-1098
PISTON-COMP-BRAKE
$53.67¢26 835
1
#43022
43022-1010
STOPPER-BRAKE,PISTON
$4.24¢2 122
1
#43026
43026-0025
CAP-BRAKE
$74.13¢37 064
1
#43027
43027-1059
PLATE DIAPHRAGM
$6.92¢3 461
1
#43028
43028-1058
DIAPHRAGM,MASTER CYLINDER
$22.17¢11 086
1
#43034
43034-0071
HOLDER-BRAKE
$41.34¢20 671
1
#43064
43064-006
GROMMET,HOSE CLAMP
$3.94¢1 972
1
#43095
43095-0681
HOSE-BRAKE,FR
$111.02¢55 511
1
#49016
49016-1044
COVER SEAL,MASTER CYLINDER
$7.93¢3 968
1
#49091
49091-0001
WASHER-SEAL,10.1X14.5X1.5
$1.87¢937
1
#92002A
92002-1561
BOLT,LEVER SET
$12.09¢6 043
1
#92002
92002-1323
BOLT,SCREW,4X12
$3.59¢1 794
1
#92009
92009-1458
SCREW,4MM
$2.68¢1 340
1
#92015
92015-1528
NUT,FLANGED,6MM
$5.01¢2 507
1
#92153
92153-1419
BOLT,OIL,L=23
$3.58¢1 788
1
#92154
92154-0541
BOLT,SOCKET,6MM
$7.89¢3 944
1
#92171
92171-0770
CLAMP,BRAKE HOSE
$32.14¢16 071
1
#92173
92173-2698
Clamp
$4.14¢2 070
1
