CHASSIS ELECTRICAL EQUIPMENT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

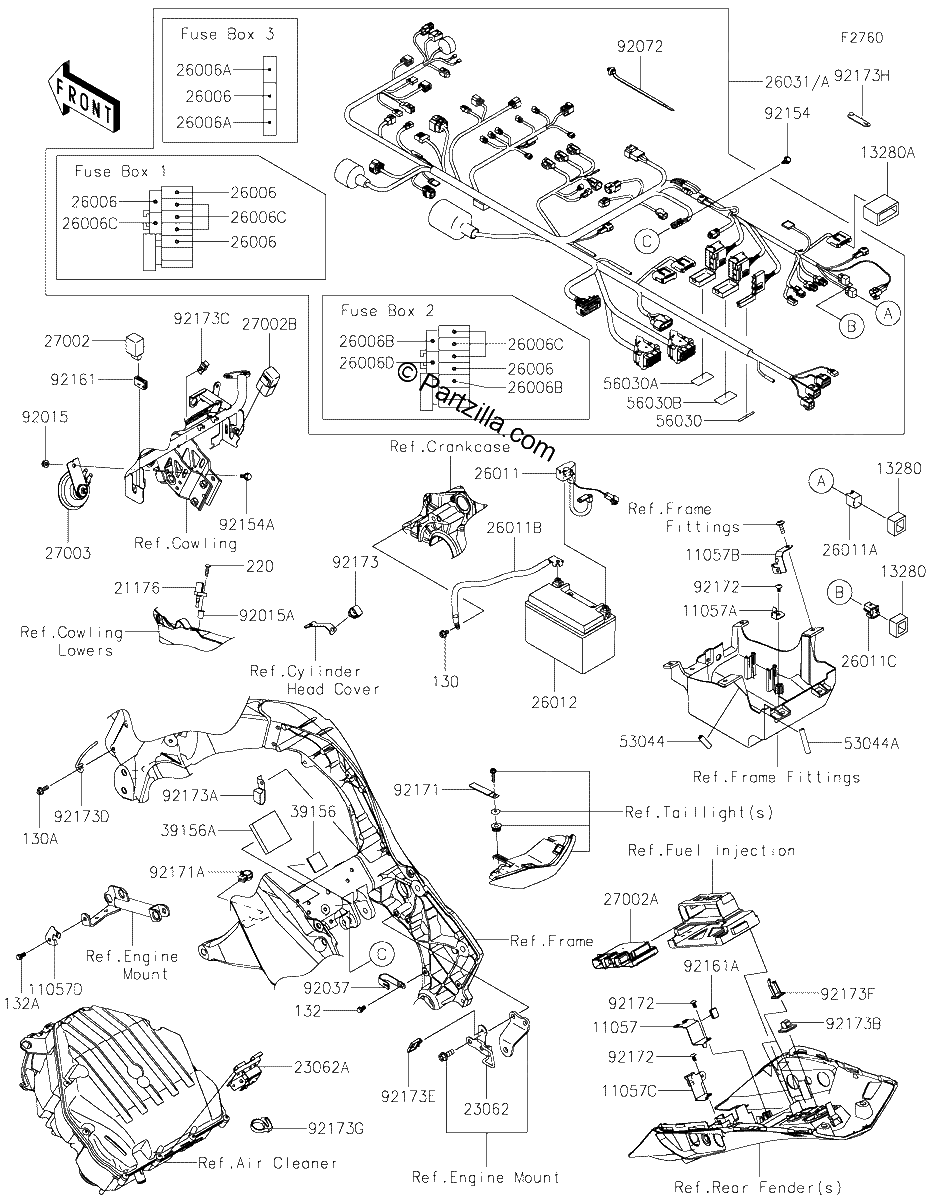

Diagrama de CHASSIS ELECTRICAL EQUIPMENT

Repuestos

#130
130BA0610
BOLT FLANGED,6X10
$1.16¢581
1
#130A
130BB0616
BOLT FLANGED,6X16
$1.78¢891
1
#132
132BA0610
BOLT-FLANGED-SMALL,6X10
$1.53¢765
1
#132A
132BA0612
BOLT-FLANGED-SMALL,6X12
$1.16¢581
1
#220
220AB0518
SCREW-PAN-CROS,5X18
$3.36¢1 679
1
#11057
11057-2891
BRACKET,RR SIGNAL LAMP
$3.96¢1 978
1
#11057A
11057-2892
BRACKET,BATTERY(+)
$2.83¢1 414
1
#11057B
11057-2893
BRACKET,FUEL PUMP
$5.28¢2 639
1
#11057C
11057-2894
BRACKET
$5.28¢2 639
1
#11057D
11057-2907
BRACKET,QUICK-SHIFTER CONNECTO
$2.46¢1 231
1
#13280
13280-0959
HOLDER,DIAG CONNECTOR
$1.90¢949
1
#13280A
13280-0994
HOLDER
$9.36¢4 681
1
#21176
21176-0048
SENSOR,AIR TEMPERATURE
$26.09¢13 047
1
#23062A
23062-1263
BRACKET-COMP,O2 SENSOR
$16.88¢8 441
1
#23062
23062-0811
BRACKET COMP,CABLE GUIDE
$19.09¢9 545
1
#26006
26006-0001
FUSE,MINI BLADE,15A,BLUE
$5.75¢2 875
1
#26006A
26006-0020
FUSE,MINI BLADE,25A,NATURAL
$6.15¢3 076
1
#26006B
26006-0054
FUSE,MINI BLADE,3A,VIOLET
$6.15¢3 076
1
#26006C
26006-1078
FUSE,MINI BLADE,10A,RED
$4.02¢2 012
1
#26006D
26006-1080
FUSE,MINI BLADE,30A,GREEN
$4.66¢2 329
1
#26011
26011-0252
WIRE LEAD,BATTERY(+)
$48.27¢24 133
1
#26011A
26011-0275
WIRE-LEAD,CONNECTOR COVER
$14.46¢7 228
1
#26011B
26011-0822
WIRE LEAD,BATTERY( )
$32.98¢16 491
1
#26011C
26011-1901
WIRE-LEAD,DIAG CONNECTOR
$41.25¢20 625
1
#26012
26012-0838
BATTERY,YTX9 BS,12V 8AH
No Disponible
1
#26031
26031-2864
HARNESS,MAIN
$1396.34¢698 171
1
#26031
26031-2865
HARNESS,MAIN
$1396.34¢698 171
1
#27002B
27002-1086
RELAY Assembly
$38.66¢19 332
1
#27002A
27002-0042
RELAY-ASSY
$149.93¢74 963
1
#27002
27002-0006
RELAY Assembly,SIGNAL LAMP
$60.36¢30 182
1
#27003
27003-0126
HORN
$78.18¢39 088
1
#39156A
39156-2216
PAD,60X60X10
$13.52¢6 762
1
#39156
39156-1766
PAD,30X30X3
$1.26¢633
1
#53044A
53044-0012
TRIM,L=40
$2.61¢1 305
1
#53044
53044-0001
TRIM,L=30
$2.46¢1 231
1
#56030A
56030-1376
LABEL,FUSE BOX1
$2.81¢1 403
1
#56030B
56030-1528
LABEL,FUSE BOX2
$2.67¢1 334
1
#56030
56030-0400
LABEL,FUSE BOX3
$4.22¢2 110
1
#92015A
92015-1757
NUT,WELL,5MM
$6.68¢3 341
1
#92015
92015-1367
NUT,FLANGED,6MM
$3.02¢1 512
1
#92037
92037-2014
CLAMP,CABLE,STEEL SHEET
$1.83¢914
1
#92072
92072-1414
BAND
$3.40¢1 702
1
#92154A
92154-1851
BOLT,FLANGED,6X16
$1.87¢937
1
#92154
92154-0551
BOLT,FLANGED,6X16
$1.55¢776
1
#92161A
92161-1696
DAMPER,16X23X2
$1.00¢500
1
#92161
92161-0283
DAMPER,SIGNAL RELAY
$2.61¢1 305
1
#92171A
92171-1722
CLAMP,EDGE CLIP
$8.51¢4 255
1
#92171
92171-0652
CLAMP,L=60
$2.22¢1 110
1
#92172
92172-0262
SCREW,TAPPING,5X10
$1.24¢621
1
#92173G
92173-1632
CLAMP,SNP-22-0W
$5.37¢2 685
1
#92173F
92173-1269
CLAMP,LOCKING WIRE SADDLE
$4.48¢2 242
1
#92173E
92173-1242
CLAMP,CABLE CLIP
$1.59¢793
1
#92173D
92173-1199
CLAMP,IRON WIRE
$5.63¢2 818
1
#92173C
92173-1163
CLAMP
$1.49¢747
1
#92173B
92173-1055
CLAMP,DRAIN
$5.97¢2 984
1
#92173A
92173-1008
CLAMP,84MM
$5.04¢2 519
1
#92173
92173-0736
CLAMP,12MM DIA.
$4.61¢2 306
1
#92173H
92173-2198
CLAMP
$1.43¢713
1
