GEAR CHANGE MECHANISM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

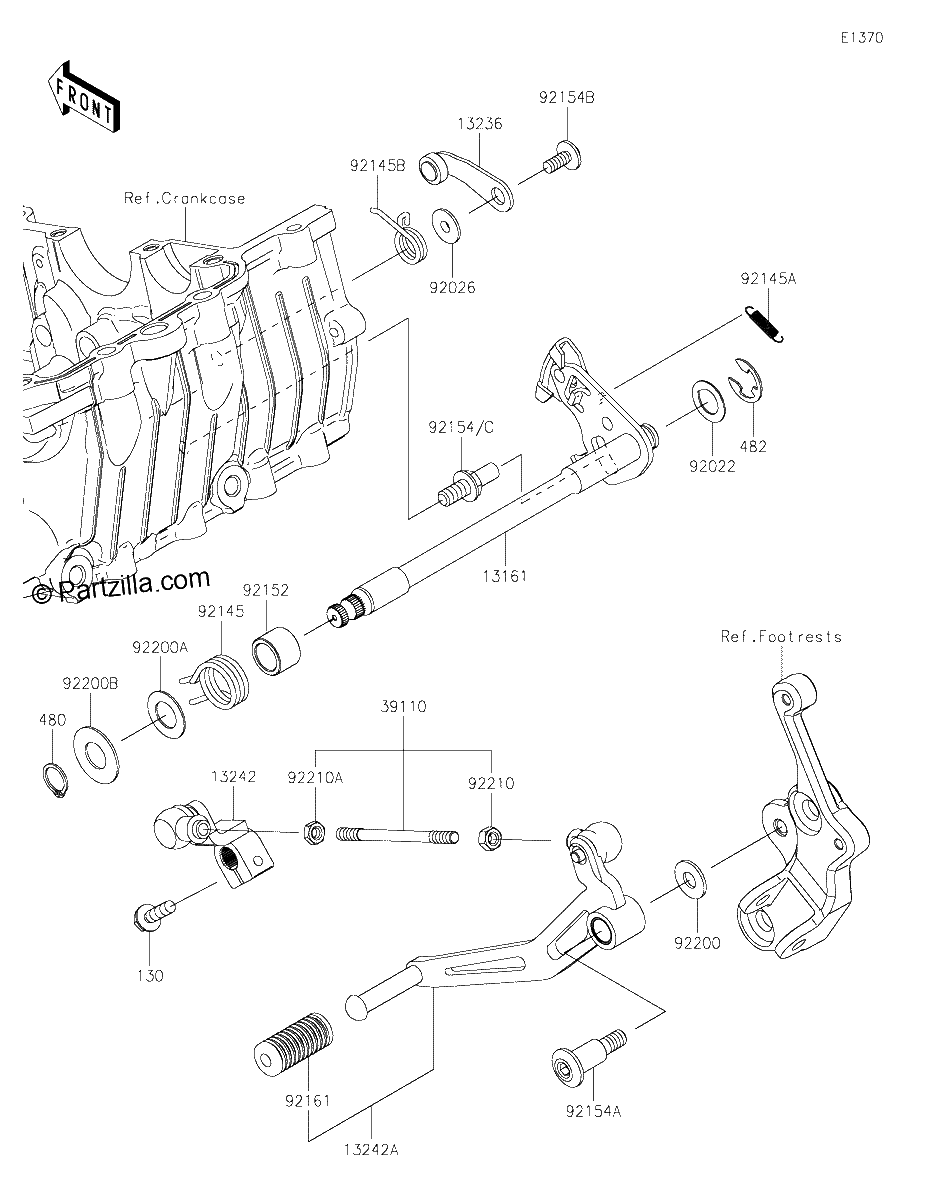

Diagrama de GEAR CHANGE MECHANISM

Repuestos

#130
130CB0620
BOLT-FLANGED,6X20
$7.00¢3 502
1
#480
480J1400
CIRCLIP-TYPE-C,14MM
$4.57¢2 283
1
#482
482J0200
CIRCLIP-TYPE-E,12MM
$3.79¢1 897
1
#13161
13161-0610
LEVER-COMP-CHANGE SHAFT
$101.57¢50 784
1
#13236
13236-0794
LEVER-COMP,POSITION
$10.78¢5 388
1
#13242A
13242-0146
LEVER-ASSY-CHANGE,PEDAL
$55.56¢27 778
1
#13242
13242-0145
LEVER-ASSY-CHANGE
$36.12¢18 061
1
#39110
39110-0045
ROD-ASSY-TIE
$13.56¢6 779
1
#92022
92022-1628
WASHER,CHANGE SHAFT
$6.15¢3 076
1
#92026
92026-1217
SPACER
$5.01¢2 507
1
#92145B
92145-1814
SPRING,DRUM POSITION
$0.95¢477
1
#92145A
92145-1813
SPRING,PAWL RETURN
$0.95¢477
1
#92145
92145-1783
SPRING,RETURN
$2.36¢1 179
1
#92152
92152-2370
COLLAR,14.2X19.9X14.3
$4.40¢2 202
1
#92154
92154-4400
BOLT,RETURN SPRING
$2.92¢1 461
1
#92154B
92154-2731
BOLT,SOCKET,6X14
$1.95¢977
1
#92154A
92154-2730
BOLT
$8.21¢4 105
1
#92154
92154-1838
BOLT,RETURN SPRING
$9.49¢4 744
1
#92161
92161-1466
DAMPER,CHANGE PEDAL
$2.77¢1 386
1
#92200B
92200-2295
WASHER,14.3X30X1.2
$2.28¢1 138
1
#92200A
92200-1933
WASHER,14.2X25X1
$0.75¢374
1
#92200
92200-0490
WASHER,8.5X20X1.6
$2.74¢1 368
1
#92210
92210-1596
NUT,6MM
$2.08¢1 041
1
#92210A
92210-1597
NUT,LEFT HANDED,6MM
$2.63¢1 317
1
