HEADLIGHT S

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

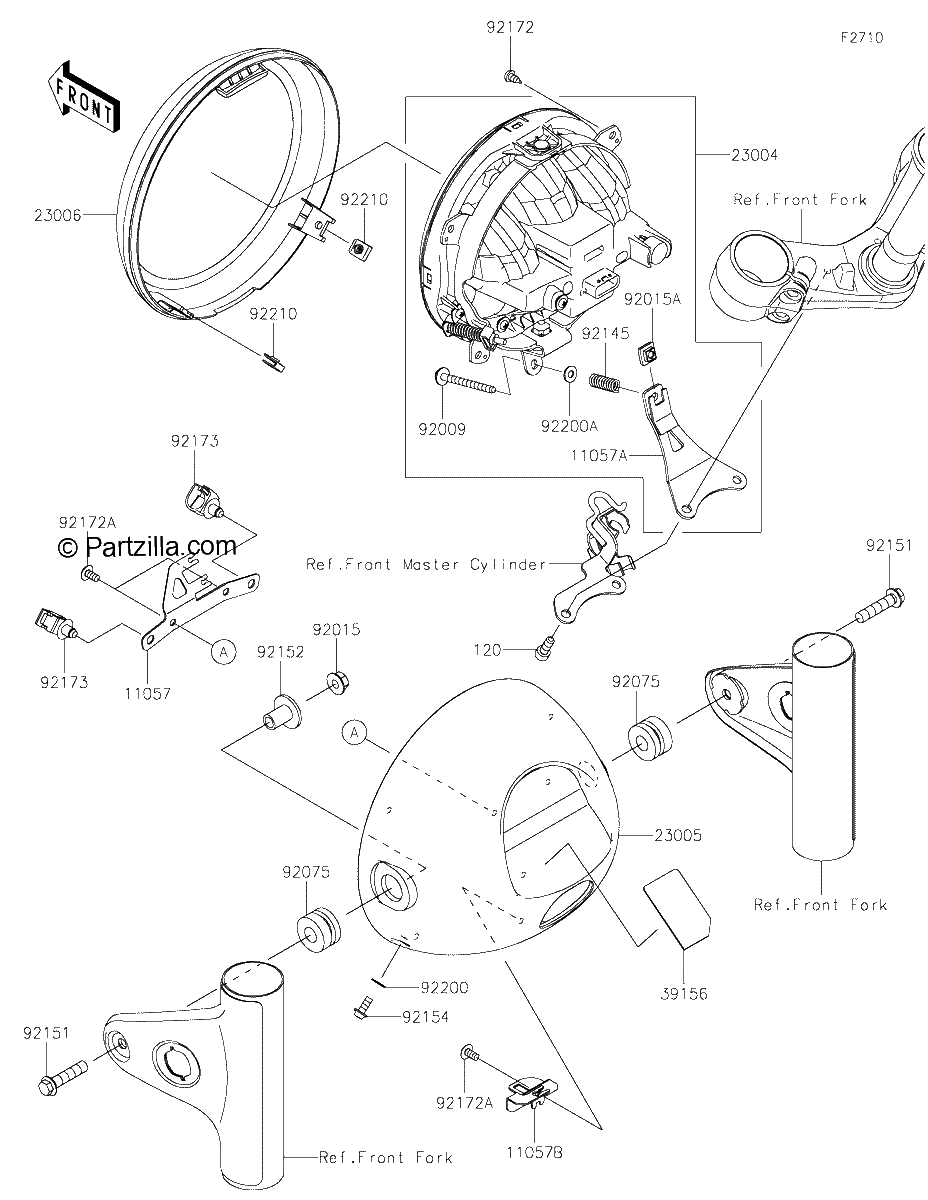

Diagrama de HEADLIGHT S

Repuestos

#120
120CC0616
BOLT-SOCKET,6X16
$2.12¢1 058
1
#11057
11057-2298
BRACKET
$4.05¢2 024
1
#11057A
11057-2697
BRACKET,HEAD LAMP AIMING
$16.79¢8 395
1
#11057B
11057-2856
BRACKET,ABS SENSOR
$4.67¢2 335
1
#23004
23004-0390
LAMP-HEAD,LED
$1303.36¢651 682
1
#23005
23005-0049-H8
BODY-COMP-HEAD LAMP,EBONY
$189.55¢94 777
1
#23006
23006-0019
RIM-LAMP
$129.95¢64 975
1
#39156
39156-2565
PAD
$13.52¢6 762
1
#92009
92009-1683
SCREW,ADJUST,5X55
$6.21¢3 105
1
#92015
92015-1014
NUT,FLANGED,8MM
$0.68¢339
1
#92015A
92015-1897
NUT,5MM
No Disponible
1
#92075
92075-1736
DAMPER
$5.91¢2 956
1
#92145
92145-1887
SPRING
$22.09¢11 046
1
#92151
92151-1537
BOLT,FLANGED,8X35
$2.36¢1 179
1
#92152
92152-2433
COLLAR,8X12X20.3
$8.36¢4 180
1
#92154
92154-0917
BOLT,SOCKET,5X12
$4.30¢2 151
1
#92172A
92172-0262
SCREW,TAPPING,5X10
$1.24¢621
1
#92172
92172-0239
SCREW,TAPPING,5X12
$1.00¢500
1
#92173
92173-0736
CLAMP,12MM DIA.
$4.61¢2 306
1
#92200A
92200-2282
WASHER
$4.40¢2 202
1
#92200
92200-1480
WASHER,NYLON,5.3X11.5X0.5
$1.44¢719
1
#92210
92210-0571
NUT
$3.22¢1 610
1
