REAR FENDER S

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

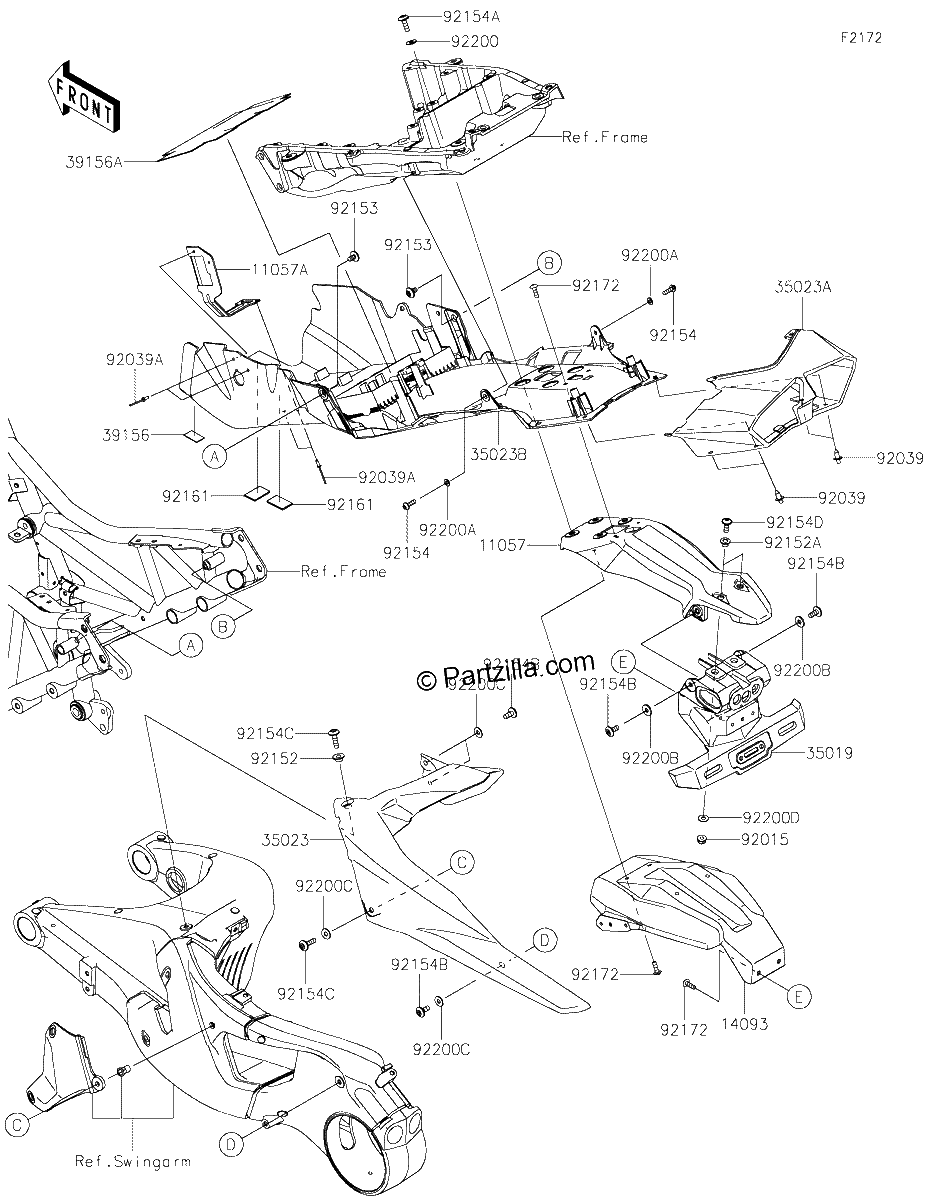

Diagrama de REAR FENDER S

Repuestos

#11057
11057-1276
BRACKET,FLAP STAY
$78.11¢39 054
1
#11057A
11057-1627
BRACKET,KEY CYLINDER
$17.45¢8 723
1
#14093
14093-0657
COVER,HARNESS
$51.95¢25 973
1
#35019
35019-0641
FLAP
$71.86¢35 932
1
#35023B
35023-0458
FENDER-REAR
$164.44¢82 219
1
#35023A
35023-0443
FENDER-REAR,TAIL
$54.23¢27 117
1
#35023
35023-0442
FENDER-REAR,HUGGER
$74.53¢37 266
1
#39156A
39156-2487
PAD
$26.07¢13 035
1
#39156
39156-2119
PAD,15X25X1
$1.71¢857
1
#92015
92015-1603
NUT,LOCK,FLANGED,6MM
$4.28¢2 139
1
#92039A
92039-0752
RIVET,3.2X9.5
$0.97¢483
1
#92039
92039-0068
RIVET
$2.51¢1 254
1
#92152A
92152-2462
COLLAR,6.1X13.3X7.5
$12.80¢6 400
1
#92152
92152-2152
COLLAR,6.5X10X6.2
$2.85¢1 426
1
#92153
92153-0410
BOLT,SOCKET,6X10
$2.37¢1 185
1
#92154D
92154-3728
BOLT,6X18
$1.59¢793
1
#92154C
92154-1810
BOLT,SOCKET,6X22
$3.53¢1 765
1
#92154B
92154-1807
BOLT,SOCKET,6X14
$2.74¢1 368
1
#92154A
92154-1694
BOLT,SOCKET,6X18
$2.06¢1 029
1
#92154
92154-0209
BOLT,SOCKET,5X16
$2.33¢1 167
1
#92161
92161-0833
DAMPER,30X20X2
$1.55¢776
1
#92172
92172-0175
SCREW,TAPPING,5X16
$1.59¢793
1
#92200C
92200-1937
WASHER,6.2X15X1.2
$2.17¢1 087
1
#92200B
92200-1834
WASHER,6.5X16X2
$1.03¢518
1
#92200A
92200-1820
WASHER,5.2X10X1.0
$0.71¢357
1
#92200
92200-1762
WASHER,6.2X15X1.2
$1.14¢569
1
#92200D
92200-1948
WASHER,6.1X14X1
$2.59¢1 294
1
