CHASSIS ELECTRICAL EQUIPMENT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

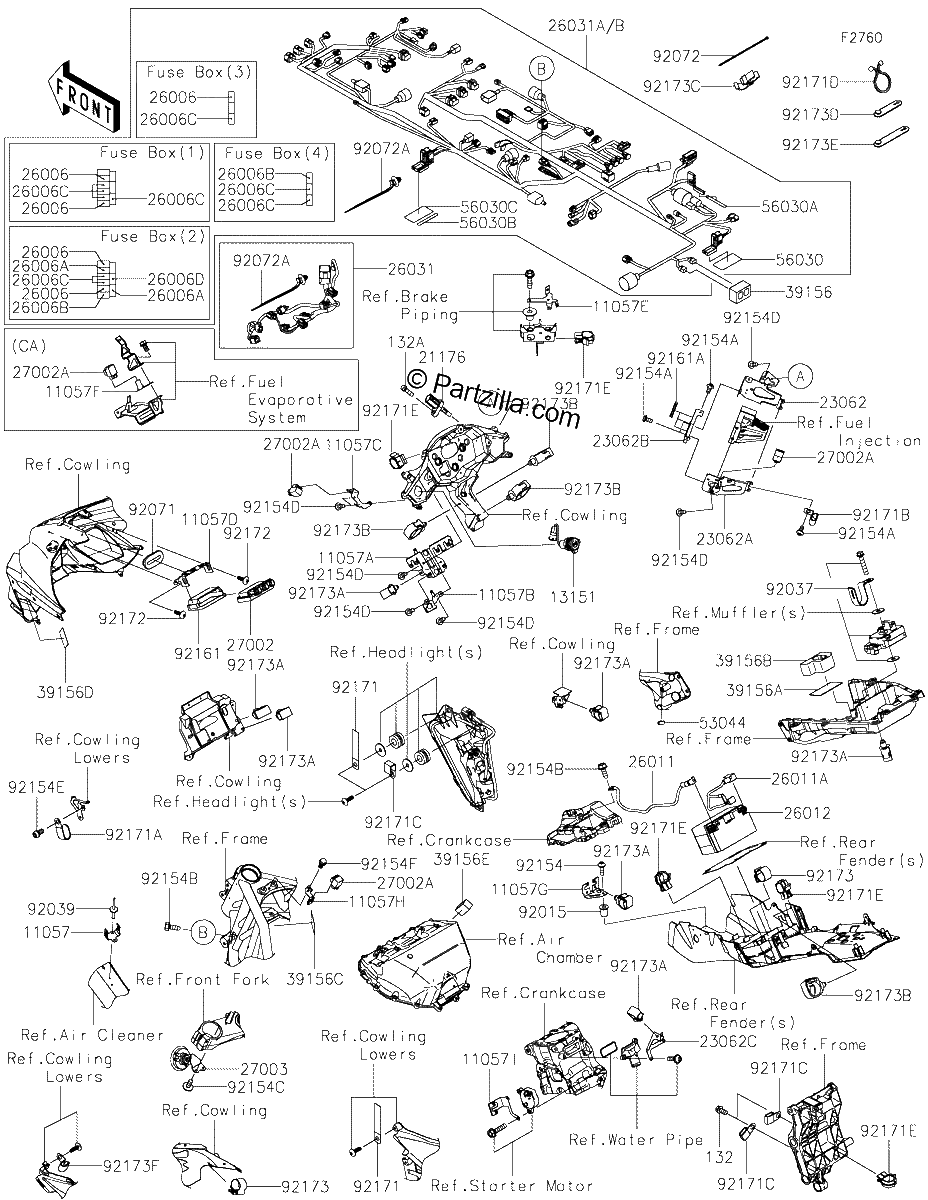

Diagrama de CHASSIS ELECTRICAL EQUIPMENT

Repuestos

#132A
132BB0516
BOLT FLANGED SMALL
$1.26¢633
1
#132
132BA0612
BOLT-FLANGED-SMALL,6X12
$1.16¢581
1
#11057
11057-1280
BRACKET,GRIP HEATER
$5.97¢2 984
1
#11057A
11057-1281
BRACKET,GYRO SENSOR
$45.05¢22 523
1
#11057I
11057-1655
BRACKET,STARTER
$16.17¢8 085
1
#11057H
11057-1636
BRACKET,RELAY
$13.12¢6 561
1
#11057G
11057-1481
BRACKET,RR FENDER
$12.87¢6 434
1
#11057F
11057-1477
BRACKET,RELAY
$8.67¢4 336
1
#11057E
11057-1476
BRACKET,SUB HARNESS CONNECTOR
$10.26¢5 129
1
#11057D
11057-1284
BRACKET,RELAY BOX
$12.09¢6 043
1
#11057C
11057-1283
BRACKET,FUSE BOX
$8.67¢4 336
1
#11057B
11057-1282
BRACKET,CONNECTOR
$14.95¢7 475
1
#13151
13151-0579
SWITCH-COMP,DC OUTLET
$167.76¢83 881
1
#21176
21176-0048
SENSOR,AIR TEMPERATURE
$26.09¢13 047
1
#23062A
23062-0974
BRACKET-COMP,ECU,INNER
$51.68¢25 840
1
#23062
23062-0973
BRACKET-COMP,ECU,OUTER
$53.37¢26 686
1
#23062C
23062-1154
BRACKET-COMP,WATER PIPE
$12.94¢6 469
1
#23062B
23062-0994
BRACKET-COMP,ECU,COVER
$43.02¢21 511
1
#26006
26006-0001
FUSE,MINI BLADE,15A,BLUE
$5.75¢2 875
1
#26006A
26006-0020
FUSE,MINI BLADE,25A,NATURAL
$6.15¢3 076
1
#26006D
26006-1080
FUSE,MINI BLADE,30A,GREEN
$4.66¢2 329
1
#26006C
26006-1078
FUSE,MINI BLADE,10A,RED
$4.02¢2 012
1
#26006B
26006-0055
FUSE,MINI BLADE,7.5A,BROWN
$6.15¢3 076
1
#26011A
26011-1872
WIRE-LEAD,BATTERY(+)
$49.36¢24 679
1
#26011
26011-1856
WIRE-LEAD,BATTERY(-)
$73.73¢36 863
1
#26012
26012-0564
BATTERY,YTZ10S,12V 8.6AH
No Disponible
1
#26031A
26031-2564
HARNESS,MAIN
$1876.27¢938 135
1
#26031A
26031-2563
HARNESS,MAIN
$1876.27¢938 135
1
#26031
26031-2370
HARNESS,SUB
$242.56¢121 279
1
#27002A
27002-1062
RELAY-ASSY
$47.54¢23 771
1
#27002
27002-0025
RELAY-ASSY,BOX
$149.93¢74 963
1
#27003
27003-0147
HORN
$93.02¢46 512
1
#39156E
39156-2491
PAD,25X50X20
$1.77¢886
1
#39156D
39156-2476
PAD,55X25X1
$1.37¢684
1
#39156C
39156-2467
PAD,73X38X1
$2.36¢1 179
1
#39156B
39156-2426
PAD,FUSE BOX
$11.57¢5 784
1
#39156A
39156-2339
PAD,40X90X2
$2.79¢1 397
1
#39156
39156-1991
PAD,DIAG,40X30X56
$4.82¢2 409
1
#53044
53044-0596
TRIM,9X20
$3.96¢1 978
1
#56030
56030-1408
LABEL,FUSE BOX2
$2.81¢1 403
1
#56030C
56030-1461
LABEL,FUSE BOX1
$2.55¢1 277
1
#56030B
56030-1460
LABEL,FUSE BOX3
$2.55¢1 277
1
#56030A
56030-1458
LABEL,FUSE BOX4
$2.55¢1 277
1
#92015
92015-1757
NUT,WELL,5MM
$6.68¢3 341
1
#92037
92037-2014
CLAMP,CABLE,STEEL SHEET
$1.83¢914
1
#92039
92039-0039
RIVET
$3.78¢1 892
1
#92071
92071-0013
GROMMET
$5.22¢2 610
1
#92072A
92072-1414
BAND
$3.40¢1 702
1
#92072
92072-0782
BAND,202X3.6
$1.81¢903
1
#92154C
92154-0745
BOLT,SOCKET,6X14
$1.99¢995
1
#92154B
92154-0551
BOLT,FLANGED,6X16
$1.55¢776
1
#92154A
92154-0211
BOLT,SOCKET,5X10
$1.84¢920
1
#92154E
92154-1453
BOLT,SOCKET,6X12
$1.18¢592
1
#92154
92154-0209
BOLT,SOCKET,5X16
$2.33¢1 167
1
#92154D
92154-0917
BOLT,SOCKET,5X12
$4.30¢2 151
1
#92154F
92154-2819
BOLT,FLANGED,6X10
$1.95¢977
1
#92161
92161-0203
DAMPER,RELAY BOX
$10.79¢5 394
1
#92161A
92161-2071
DAMPER,ECU
$5.13¢2 565
1
#92171E
92171-1722
CLAMP,EDGE CLIP
$8.51¢4 255
1
#92171D
92171-1185
CLAMP
$2.18¢1 092
1
#92171C
92171-0813
CLAMP
$9.11¢4 554
1
#92171B
92171-0766
CLAMP
$5.32¢2 662
1
#92171A
92171-0739
CLAMP
$5.32¢2 662
1
#92171
92171-0652
CLAMP,L=60
$2.22¢1 110
1
#92172
92172-0335
SCREW,TAPPING,5X10
$1.87¢937
1
#92173E
92173-1526
CLAMP
$3.83¢1 915
1
#92173D
92173-1229
CLAMP,RUBBER PLATE
$3.83¢1 915
1
#92173C
92173-0985
CLAMP,PIPE
$4.23¢2 116
1
#92173B
92173-0861
CLAMP
$2.53¢1 265
1
#92173A
92173-0736
CLAMP,12MM DIA.
$4.61¢2 306
1
#92173
92173-0127
CLAMP,CLIP
$15.92¢7 958
1
#92173F
92173-1839
CLAMP,12X45
$5.07¢2 536
1
