CRANKCASE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

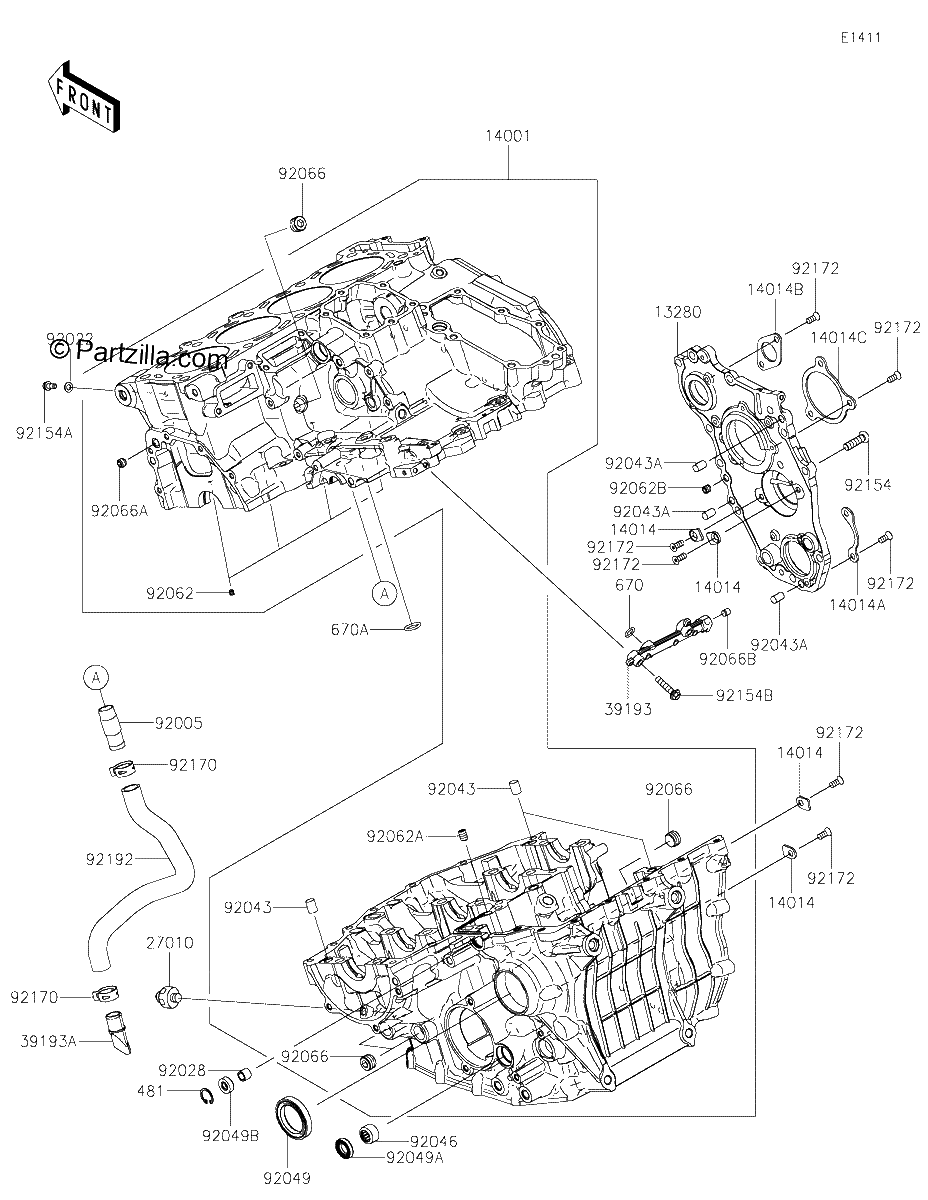

Diagrama de CRANKCASE

Repuestos

#481
481J1800
CIRCLIP-TYPE-C,18MM
$4.50¢2 250
1
#670A
670D2015
O RING,15MM
$1.63¢813
1
#670
670B1510
O RING,9.8X1.9
$4.29¢2 144
1
#13280
13280-0799
HOLDER,TRANSMISSION
$355.05¢177 525
1
#14001
14001-0680
SET-CRANKCASE
$3458.88¢1 729 438
1
#14014C
14014-0575
PLATE-POSITION
$28.11¢14 056
1
#14014B
14014-0572
PLATE-POSITION,COUNTER SHAFT
$21.27¢10 638
1
#14014A
14014-0571
PLATE-POSITION,CHANGE DRUM
$19.06¢9 531
1
#14014
14014-0569
PLATE-POSITION
$8.47¢4 238
1
#27010
27010-1313
SWITCH,OIL PRESSURE
$45.69¢22 844
1
#39193A
39193-0582
PIPE-OIL
$25.54¢12 769
1
#39193
39193-0581
PIPE OIL
$201.26¢100 631
1
#92005
92005-0773
FITTING
$23.88¢11 938
1
#92022
92022-304
WASHER,6.2X11X1
$3.60¢1 800
1
#92028
92028-1750
BUSHING,8X12X10
$8.39¢4 194
1
#92043A
92043-1567
PIN,8X14
$2.11¢1 056
1
#92043
92043-1506
PIN,10X14
$3.00¢1 500
1
#92046
92046-0043
BEARING-NEEDLE,HK1412FM
$16.91¢8 456
1
#92049B
92049-1566
SEAL-OIL
$7.61¢3 806
1
#92049A
92049-1520
SEAL OIL,TC14245
$13.73¢6 863
1
#92049
92049-1452
SEAL-OIL,TC 35X50X8
$13.60¢6 800
1
#92062B
92062-0032
NOZZLE
$16.59¢8 294
1
#92062A
92062-0031
NOZZLE
$17.66¢8 831
1
#92062
92062-0004
NOZZLE
$4.69¢2 344
1
#92066B
92066-1012
PLUG,OIL LINE,7.2X8
$6.05¢3 025
1
#92066A
92066-0876
PLUG,PT1/8X7
$29.79¢14 894
1
#92066
92066-0831
PLUG
$5.55¢2 775
1
#92154B
92154-1845
BOLT,FLANGED,6X28
$2.13¢1 063
1
#92154A
92154-1453
BOLT,SOCKET,6X12
$1.29¢644
1
#92154
92154-0415
BOLT,TORX,8X28
$2.46¢1 231
1
#92170
92170-1640
CLAMP
$2.20¢1 100
1
#92172
92172-0906
SCREW,TORX,6X14
$2.20¢1 100
1
#92192
92192-1437
TUBE,BREATHER DRAIN
$105.14¢52 569
1
