GEAR CHANGE MECHANISM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

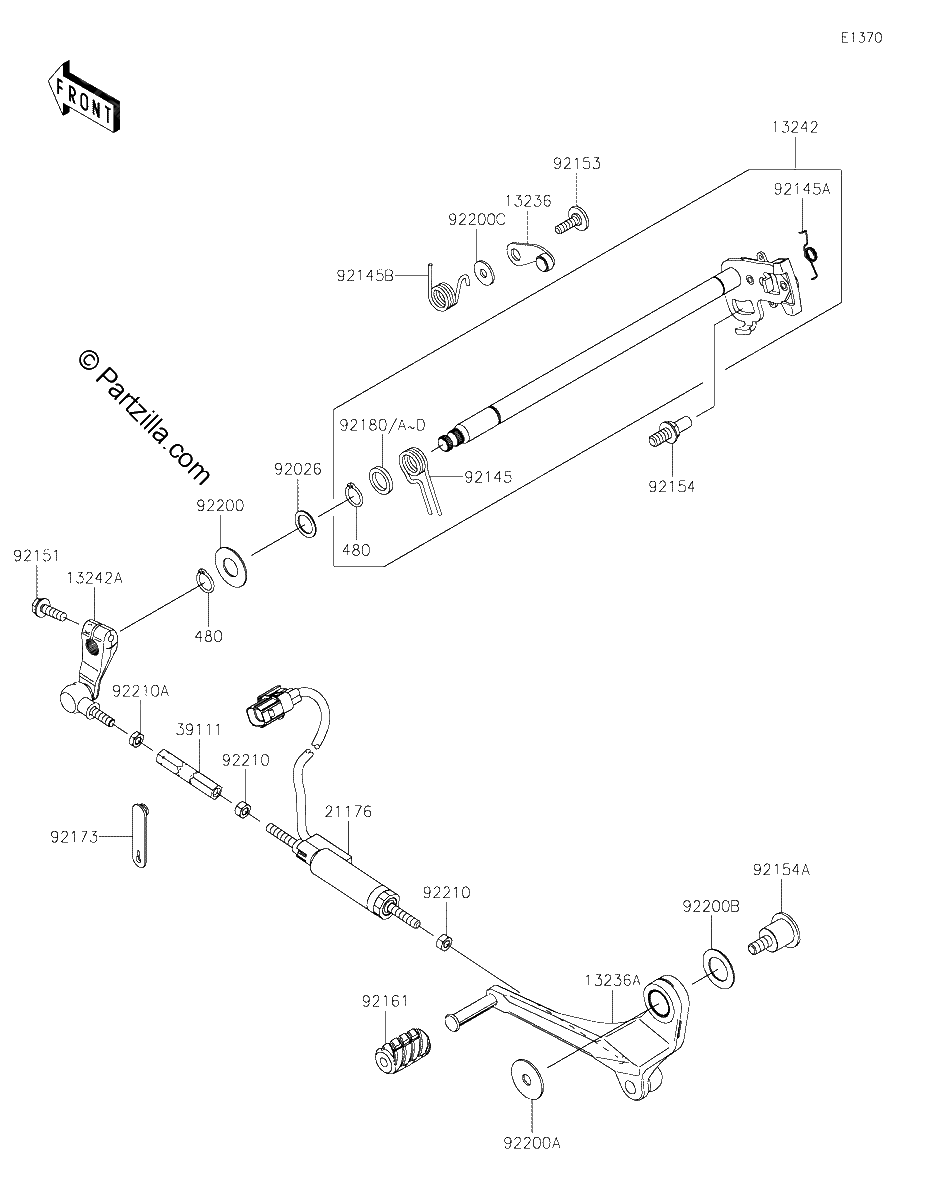

Diagrama de GEAR CHANGE MECHANISM

Repuestos

#480
480J1400
CIRCLIP-TYPE-C,14MM
$4.57¢2 283
1
#13236
13236-0785
LEVER-COMP,POSITION
$22.47¢11 235
1
#13236A
13236-0799
LEVER-COMP,CHANGE,PEDAL
$258.49¢129 243
1
#13242A
13242-0150
LEVER-ASSY-CHANGE
$86.81¢43 407
1
#13242
13242-0138
LEVER-ASSY-CHANGE
$137.37¢68 684
1
#21176
21176-0865
SENSOR,QUICK SHIFTER
$265.58¢132 790
1
#39111
39111-0356
ROD-TIE
$33.91¢16 957
1
#92026
92026-1534
SPACER,14X20X1.0
$4.14¢2 070
1
#92145B
92145-1664
SPRING,POSITION LEVER
$11.78¢5 888
1
#92145A
92145-1663
SPRING
$11.03¢5 514
1
#92145
92145-0415
SPRING,RETURN
$12.19¢6 095
1
#92151
92151-1226
BOLT,FLANGED,6X20
$2.10¢1 052
1
#92153
92153-1505
BOLT,6X20
$8.20¢4 100
1
#92154A
92154-2822
BOLT
$45.18¢22 592
1
#92154
92154-1838
BOLT,RETURN SPRING
$9.49¢4 744
1
#92161
92161-1769
DAMPER
$11.88¢5 940
1
#92173
92173-1229
CLAMP,RUBBER PLATE
$3.83¢1 915
1
#92180
92180-0967
SHIM,T=3.4
$32.29¢16 146
1
#92180
92180-0966
SHIM,T=3.2
$32.29¢16 146
1
#92180
92180-0965
SHIM,T=3.0
$32.29¢16 146
1
#92180
92180-0964
SHIM,T=2.8
$32.29¢16 146
1
#92180
92180-0963
SHIM,T=2.6
$32.29¢16 146
1
#92200C
92200-0996
WASHER,6.5X18X1.6
$8.51¢4 255
1
#92200B
92200-0812
WASHER,18.3X30X1
$3.96¢1 978
1
#92200A
92200-0810
WASHER,8.2X30X1.5
$4.02¢2 012
1
#92200
92200-0265
WASHER
$2.22¢1 110
1
#92210
92210-1100
NUT,6MM
$2.01¢1 006
1
#92210A
92210-1101
NUT,LEFT HANDED,6MM
$1.44¢719
1
