HEADLIGHT S

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

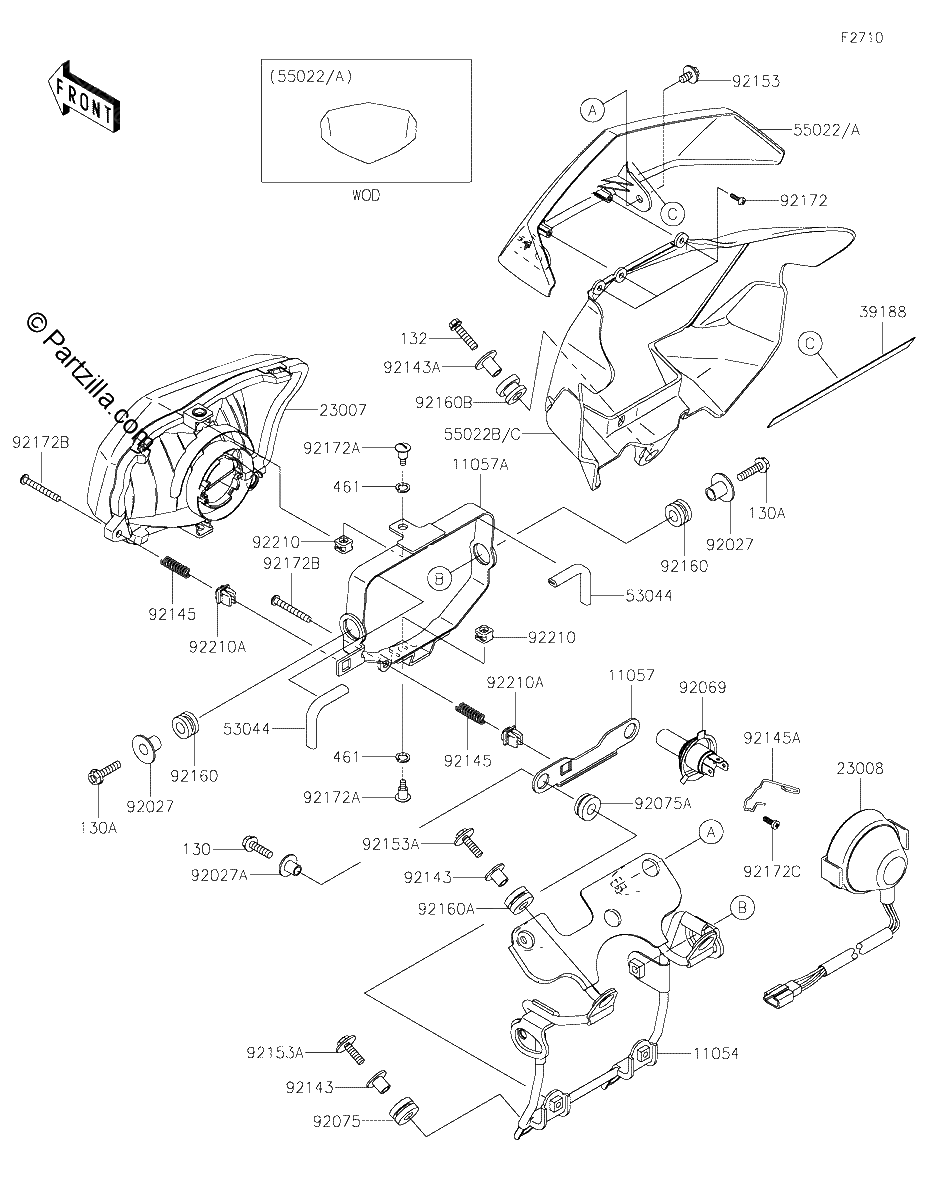

Diagrama de HEADLIGHT S

Repuestos

#130
130BB0622
BOLT-FLANGED,6X22
$3.35¢1 673
1
#130A
130BB0825
BOLT-FLANGED,8X25
$3.15¢1 576
1
#132
132BB0625
BOLT FLANGED SMALL,6X25
$2.37¢1 185
1
#461
461DA0800
WASHER-SPRING,8MM
$0.53¢265
1
#11054
11054-1692
BRACKET,HEAD LAMPMETER
$148.29¢74 146
1
#11057
11057-1035
BRACKET,HEAD LAMP,BIG PLATE
$42.88¢21 442
1
#11057A
11057-1036
BRACKET,HEAD LAMP,LWR PLATE
$15.11¢7 555
1
#23007
23007-0109
LENS COMP,HEAD LAMP
$209.65¢104 823
1
#23008
23008-0089
SOCKET Assembly,HEAD LAMP
$92.03¢46 017
1
#39188
39188-0011
TAPE
$7.65¢3 824
1
#53044
53044-0033
TRIM,L=90
$2.22¢1 110
1
#55022
55022-0044-6C
COVER-HEAD LAMP,UPP,EBONY
$48.33¢24 167
1
#55022
55022-0044-266
COVER-HEAD LAMP,UPP,B.WHITE
$46.25¢23 126
1
#55022B
55022-0052-6C
COVER HEAD LAMP,Lower,EBONY
$65.31¢32 654
1
#55022B
55022-0052-290
COVER HEAD LAMP,Lower,L GREEN
$66.45¢33 224
1
#92027
92027-1134
COLLAR,L=14
$9.38¢4 692
1
#92027A
92027-1651
COLLAR,FLANGED,L=12.1,BLACK
$4.77¢2 386
1
#92069
92069-0050
BULB,12V 60/55W,H4
$16.53¢8 263
1
#92075A
92075-277
DAMPER
$2.28¢1 138
1
#92075
92075-209
DAMPER
$4.28¢2 139
1
#92143A
92143-1960
COLLAR
$5.82¢2 909
1
#92143
92143-1353
COLLAR
$7.83¢3 916
1
#92145A
92145-0753
SPRING
$8.49¢4 244
1
#92145
92145-0565
SPRING,FOCUS ADJUSTING
$3.48¢1 742
1
#92153A
92153-0640
BOLT,UPSET WP,6X22
$1.84¢920
1
#92153
92153-0503
BOLT,6X12
$2.37¢1 185
1
#92160A
92160-1167
DAMPER,10X20X12
$4.28¢2 139
1
#92160B
92160-1615
DAMPER
$3.54¢1 771
1
#92160
92160-1007
DAMPER
$5.01¢2 507
1
#92172A
92172-0345
SCREW,5X16.7
$1.24¢621
1
#92172B
92172-0346
SCREW,5X45
$1.62¢811
1
#92172C
92172-0456
SCREW
$3.36¢1 679
1
#92172
92172-0233
SCREW,TAPPING,4X12
$1.24¢621
1
#92210
92210-0426
NUT,PLASTIC
$5.57¢2 783
1
#92210A
92210-0427
NUT,5MM
$3.52¢1 759
1
