HEADLIGHT S

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

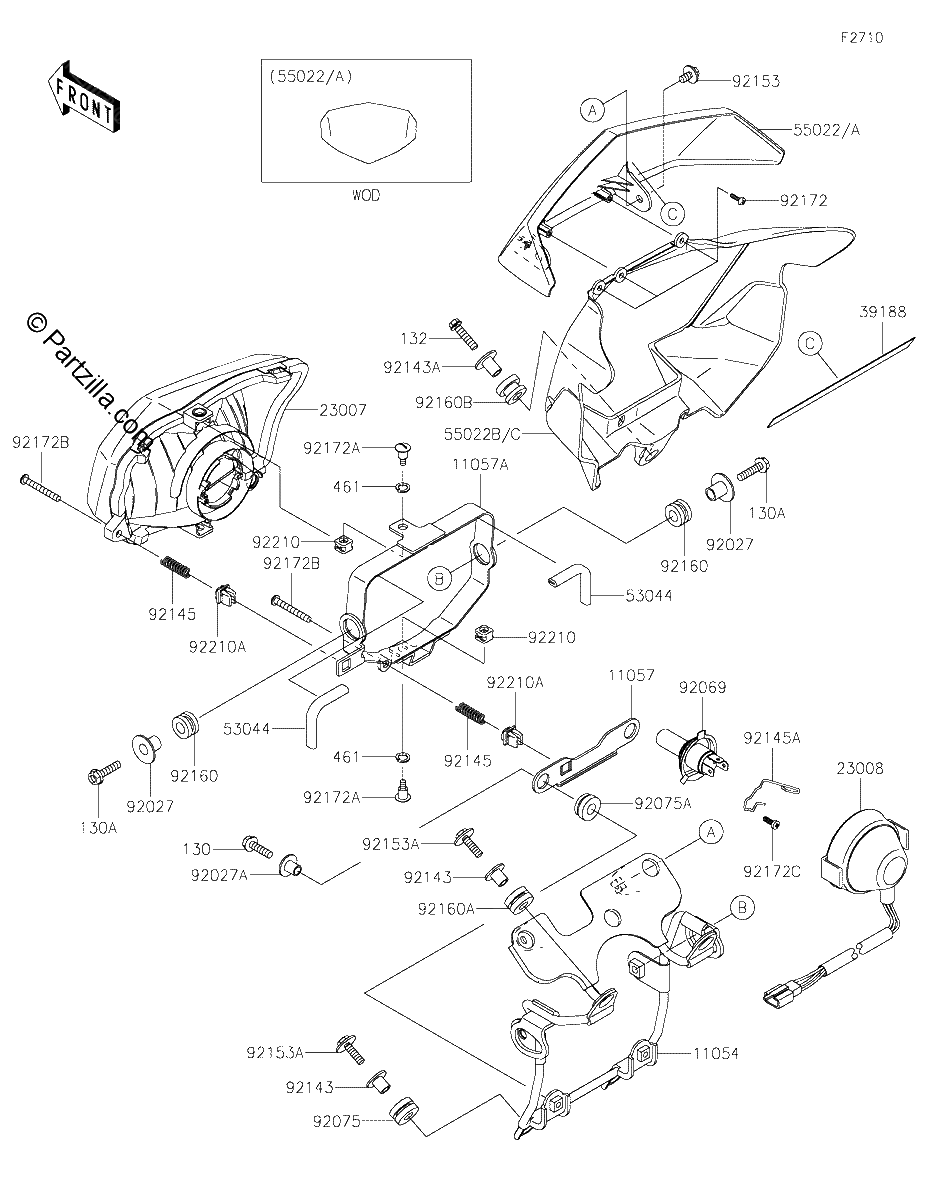

Diagrama de HEADLIGHT S

Repuestos

#130
130BB0622
BOLT-FLANGED,6X22
$3.64¢1 819
1
#130A
130BB0825
BOLT-FLANGED,8X25
$3.43¢1 713
1
#132
132BB0625
BOLT FLANGED SMALL,6X25
$2.58¢1 288
1
#461
461DA0800
WASHER-SPRING,8MM
$0.58¢288
1
#11054
11054-1692
BRACKET,HEAD LAMPMETER
$161.19¢80 594
1
#11057
11057-1035
BRACKET,HEAD LAMP,BIG PLATE
$46.61¢23 306
1
#11057A
11057-1036
BRACKET,HEAD LAMP,LWR PLATE
$16.43¢8 213
1
#23007
23007-0109
LENS COMP,HEAD LAMP
$227.88¢113 938
1
#23008
23008-0089
SOCKET Assembly,HEAD LAMP
$100.04¢50 019
1
#39188
39188-0011
TAPE
$8.31¢4 156
1
#53044
53044-0033
TRIM,L=90
$2.41¢1 206
1
#55022
55022-0044-6C
COVER-HEAD LAMP,UPP,EBONY
$52.54¢26 269
1
#55022
55022-0044-266
COVER-HEAD LAMP,UPP,B.WHITE
$50.27¢25 138
1
#55022B
55022-0052-6C
COVER HEAD LAMP,Lower,EBONY
$70.99¢35 494
1
#55022B
55022-0052-290
COVER HEAD LAMP,Lower,L GREEN
$72.22¢36 113
1
#92027
92027-1134
COLLAR,L=14
$10.20¢5 100
1
#92027A
92027-1651
COLLAR,FLANGED,L=12.1,BLACK
$5.19¢2 594
1
#92069
92069-0050
BULB,12V 60/55W,H4
$17.96¢8 981
1
#92075A
92075-277
DAMPER
$2.48¢1 238
1
#92075
92075-209
DAMPER
$4.65¢2 325
1
#92143A
92143-1960
COLLAR
$6.32¢3 162
1
#92143
92143-1353
COLLAR
$8.51¢4 256
1
#92145A
92145-0753
SPRING
$9.22¢4 613
1
#92145
92145-0565
SPRING,FOCUS ADJUSTING
$3.79¢1 894
1
#92153A
92153-0640
BOLT,UPSET WP,6X22
$2.00¢1 000
1
#92153
92153-0503
BOLT,6X12
$2.58¢1 288
1
#92160A
92160-1167
DAMPER,10X20X12
$4.65¢2 325
1
#92160B
92160-1615
DAMPER
$3.85¢1 925
1
#92160
92160-1007
DAMPER
$5.45¢2 725
1
#92172A
92172-0345
SCREW,5X16.7
$1.35¢675
1
#92172B
92172-0346
SCREW,5X45
$1.76¢881
1
#92172C
92172-0456
SCREW
$3.65¢1 825
1
#92172
92172-0233
SCREW,TAPPING,4X12
$1.35¢675
1
#92210
92210-0426
NUT,PLASTIC
$6.05¢3 025
1
#92210A
92210-0427
NUT,5MM
$3.83¢1 913
1
