COWLING FHF FHFA

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

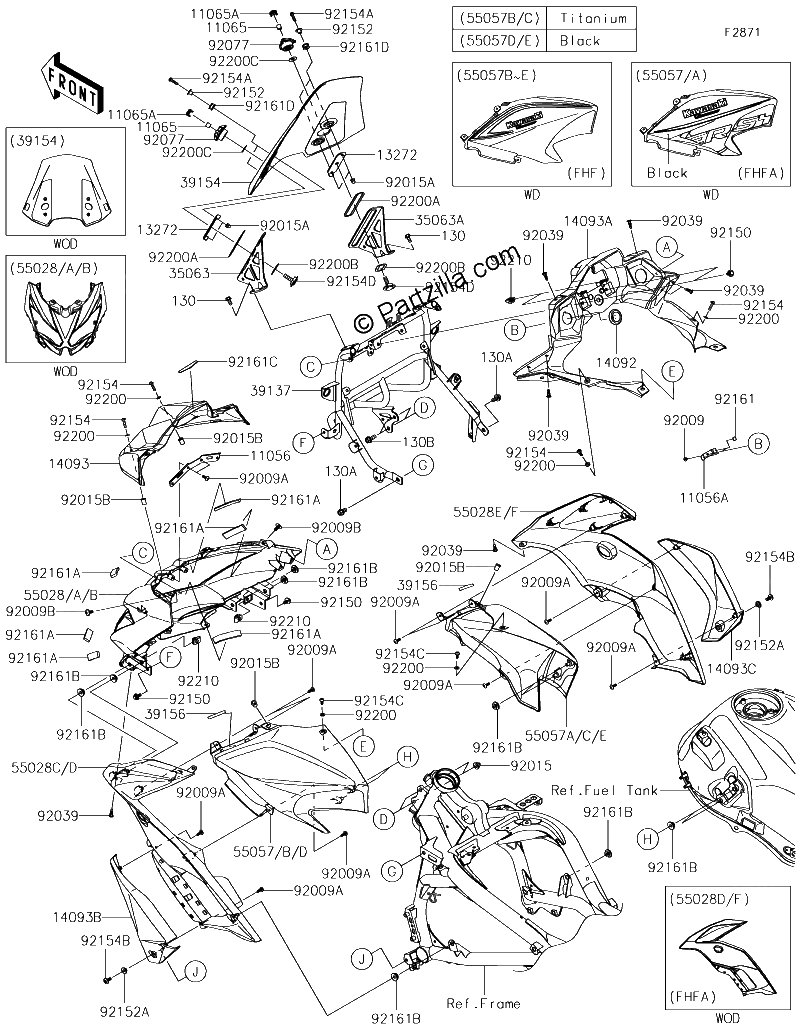

Diagrama de COWLING FHF FHFA

Repuestos

#130
130BA0614
BOLT FLANGED,6X14
$1.26¢631
1
#130A
130BA0814
BOLT FLANGED,8X14
$2.00¢1 000
1
#130B
130BA0820
BOLT FLANGED,8X20
$3.96¢1 981
1
#11056
11056-3975
BRACKET,HEAD LAMP
$6.89¢3 444
1
#11056A
11056-4313
BRACKET,CAP COVER
$1.29¢644
1
#11065
11065-0156
CAP
$2.01¢1 006
1
#11065A
11065-0734
CAP,KNOB
$5.24¢2 619
1
#13272
13272-2333
PLATE,WINDSHIELD
$4.65¢2 325
1
#14092
14092-0214
COVER,DC SOCKET
$6.69¢3 344
1
#14093B
14093-0095
COVER,RADIATOR,Left Hand
$70.81¢35 406
1
#14093
14093-0093
COVER,METER,Upper
$173.16¢86 581
1
#14093A
14093-0094
COVER,METER
$167.84¢83 919
1
#14093C
14093-0096
COVER,RADIATOR Right Hand
$70.81¢35 406
1
#35063
35063-1321
STAY,WINDSHIELD,Left Hand
$35.16¢17 581
1
#35063A
35063-1322
STAY,WINDSHIELD,Right Hand
$35.16¢17 581
1
#39137
39137-0669
STAY COMP,Upper COWL.
$225.56¢112 781
1
#39154
39154-0361
WINDSHIELD
$204.85¢102 425
1
#39156
39156-1920
PAD,6X70
$1.77¢888
1
#55028
55028-0514-51P
COWLING,Upper,C L GREEN
$432.54¢216 269
1
#55028D
55028-0515-660
COWLING,SIDE,Left Hand,M S BLACK
$288.25¢144 125
1
#55028F
55028-0516-660
COWLING,SIDE,Right Hand,M S BLACK
$323.20¢161 600
1
#55057
55057-5352-660
COWLING,TANK SIDE,LH,M.S.BLACK
$579.51¢289 756
1
#55057A
55057-5353-660
COWLING,TANK SIDE,RH,M.S.BLACK
$520.06¢260 031
1
#92009B
92009-1662
SCREW,6X14
$3.90¢1 950
1
#92009A
92009-1197
SCREW,TAPPING,5X14
$3.90¢1 950
1
#92009
92009-1155
SCREW,TAPPING,4X8
$2.84¢1 419
1
#92015A
92015-1263
NUT,LOCK,FLANGE CAP,5MM
$6.42¢3 213
1
#92015B
92015-1757
NUT,WELL,5MM
$7.26¢3 631
1
#92015
92015-1151
NUT,CAP,8MM
$4.96¢2 481
1
#92039
92039-0709
RIVET
$2.46¢1 231
1
#92077
92077-0034
KNOB,ADJUSTERS
$14.30¢7 150
1
#92150
92150-1689
BOLT,FLANGED,6X14
$3.93¢1 963
1
#92152
92152-0092
COLLAR
$6.46¢3 231
1
#92152A
92152-0445
COLLAR,6.5X10X5.6
$4.88¢2 438
1
#92154B
92154-0932
BOLT,SOCKET,6X14
$1.88¢938
1
#92154
92154-0216
BOLT,SOCKET,5X20
$2.00¢1 000
1
#92154A
92154-0919
BOLT,SOCKET,5X20
No Disponible
1
#92154C
92154-1421
BOLT,SOCKET,5X12
$1.05¢525
1
#92154D
92154-1438
BOLT,PLATE,8X30
$15.71¢7 856
1
#92161
92161-0816
DAMPER
$3.04¢1 519
1
#92161A
92161-1380
DAMPER,15X70X5
$2.75¢1 375
1
#92161B
92161-1531
DAMPER
$2.75¢1 375
1
#92161C
92161-1758
DAMPER,10X65X2
$1.29¢644
1
#92161D
92161-1938
DAMPER
$2.40¢1 200
1
#92200
92200-0006
WASHER,NYLONE,5.3X11.5X0.5
$1.77¢888
1
#92200A
92200-0801
WASHER
$4.38¢2 188
1
#92200B
92200-0802
WASHER,23.5X32X1
$2.86¢1 431
1
#92200C
92200-1751
WASHER,8.2X20X1
$6.13¢3 063
1
#92210
92210-0933
NUT,CLIP,6MM
$2.20¢1 100
1
