FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

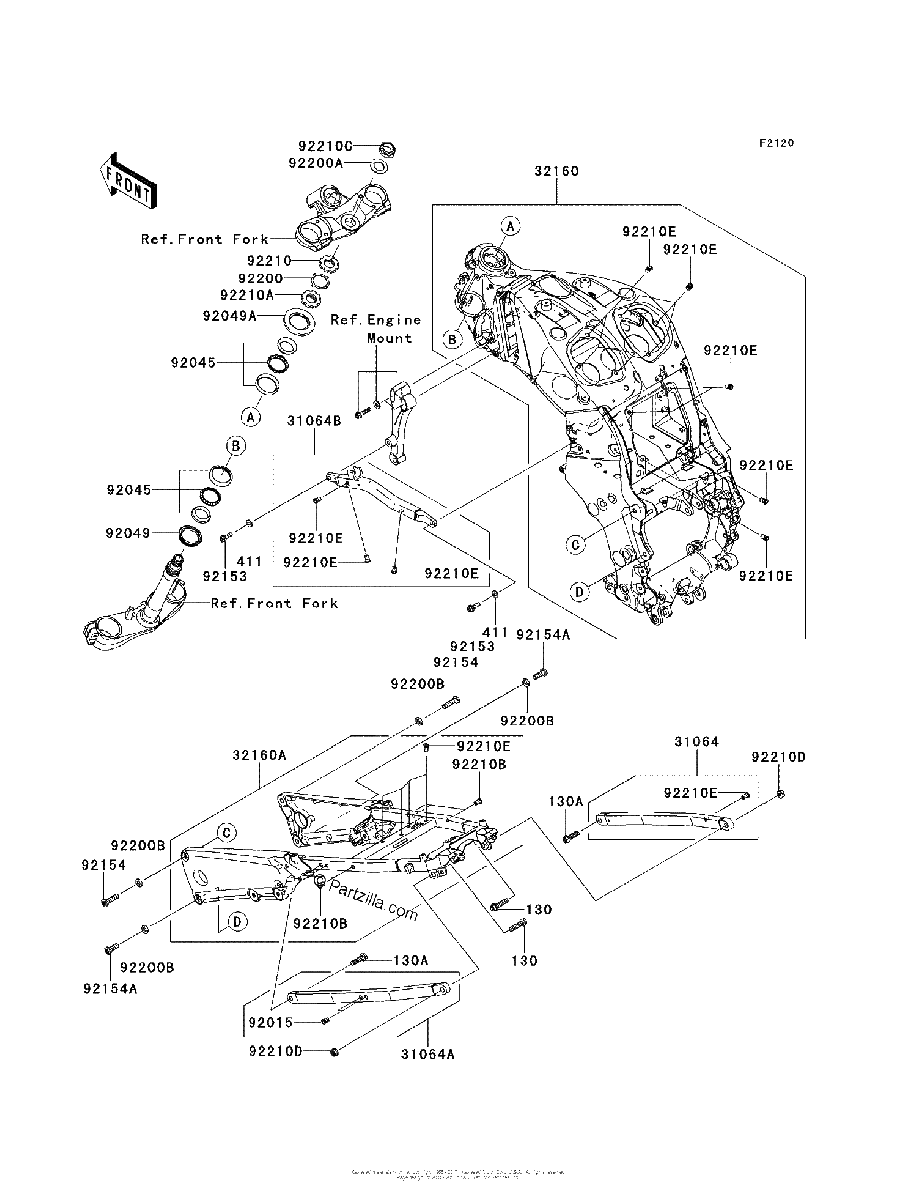

Diagrama de FRAME

Repuestos

#130
130BA1040
BOLT FLANGED,10X40
$1.83¢914
1
#130A
130BB1035
BOLT FLANGED,10X35
$5.86¢2 932
1
#411
411AA0800
WASHER PLAIN,8MM
$0.97¢483
1
#31064
31064-0045-18R
PIPE COMP,Rear,Right Hand,F S BLACK
$141.62¢70 811
1
#31064B
31064-0099
PIPE-COMP,SUB FRAME,LH
$180.86¢90 430
1
#31064A
31064-0065-18R
PIPE COMP,Rear,Left Hand,F S BLACK
$141.62¢70 811
1
#32160
32160-0580-18R
FRAME-COMP,FR,F.S.BLACK
$3808.29¢1 904 147
1
#32160A
32160-0649-18R
FRAME-COMP,RR,F.S.BLACK
No Disponible
1
#92015
92015-1791
NUT,POP,6MM,L=15
$4.28¢2 139
1
#92045
92045-1384
BEARING BALL,SF07A17PX1V1
$47.85¢23 926
1
#92049
92049-0022
SEAL-OIL,DS35X55X4
$15.72¢7 860
1
#92049A
92049-1382
SEAL OIL,XMH 43 75 6.4J
$23.74¢11 868
1
#92153
92153-1768
BOLT,FLANGED,8X25
$3.78¢1 892
1
#92154A
92154-0995
BOLT,SOCKET,10X30
$5.66¢2 829
1
#92154
92154-0994
BOLT,SOCKET,10X40
$6.21¢3 105
1
#92200A
92200-0282
WASHER,25.5X42X2.3
$2.32¢1 162
1
#92200B
92200-0805
WASHER,11X20X3
$8.03¢4 013
1
#92200
92200-0281
WASHER
$3.58¢1 788
1
#92210D
92210-1139
NUT,LOCK,FLANGED,10MM
$3.47¢1 737
1
#92210C
92210-0758
NUT,25MM
$83.48¢41 739
1
#92210B
92210-0324
NUT,POP,6MM,L=16.5
$5.04¢2 519
1
#92210A
92210-0096
NUT,35MM
$19.93¢9 965
1
#92210
92210-0095
NUT,35MM
$16.50¢8 251
1
#92210E
92210-1397
NUT,POP,6MM,L=15
$5.19¢2 593
1
