CAMSHAFT S BEVEL GEAR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

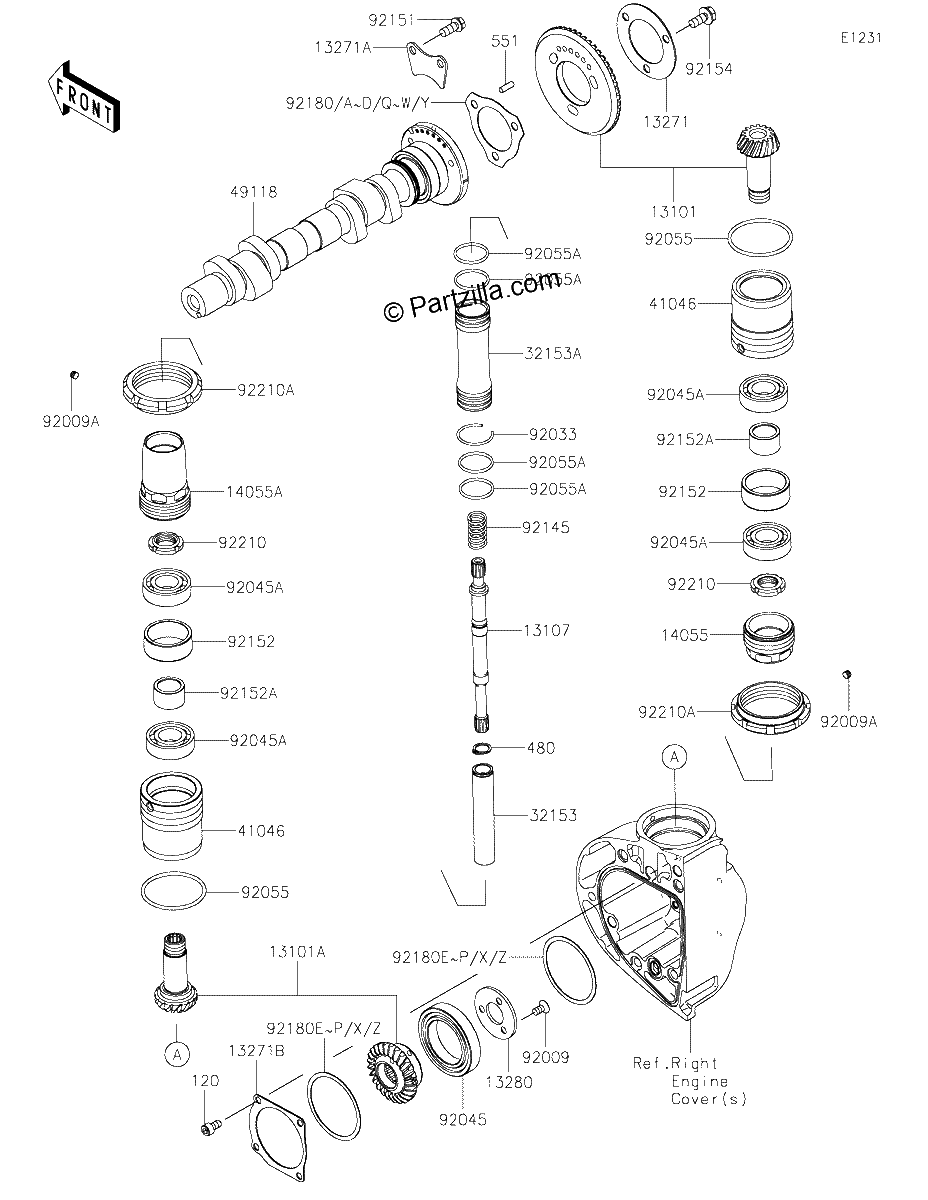

Diagrama de CAMSHAFT S BEVEL GEAR

Repuestos

#120
120CB0510
BOLT SOCKET,5X10
$1.60¢800
1
#480
480J1100
CIRCLIP-TYPE-C,11MM
$1.24¢619
1
#551
551A0412
PIN-DOWEL
$1.63¢813
1
#13101
13101-0580
GEAR Assembly,CAMSHAFT
$607.46¢303 731
1
#13101A
13101-1289
GEAR Assembly,CRANKSHAFT
$559.23¢279 613
1
#13107
13107-1424
SHAFT
$138.20¢69 100
1
#13271
13271-1190
PLATE,PIN
$5.02¢2 512
1
#13271A
13271-1191
PLATE,CAMSHAFT BEARING
$4.35¢2 175
1
#13271B
13271-1192
PLATE,BEARING
$8.61¢4 306
1
#13280
13280-1123
HOLDER,BEARING
$9.25¢4 625
1
#14055
14055-1161
CASE-GEAR
$59.45¢29 725
1
#14055A
14055-1162
CASE-GEAR
$113.85¢56 925
1
#32153
32153-1096
PIPE
$34.46¢17 231
1
#32153A
32153-1097
PIPE
$61.94¢30 969
1
#41046
41046-1104
HOUSING-BEARING
$84.06¢42 031
1
#49118
49118-1231
CAMSHAFT-COMP
$815.31¢407 656
1
#92009
92009-1828
SCREW,5X10
$2.29¢1 144
1
#92009A
92009-1883
SCREW,NUT LOCK
$2.29¢1 144
1
#92033
92033-1307
RING SNAP
$3.57¢1 787
1
#92045
92045-1373
BEARING BALL,6907C2
$35.81¢17 906
1
#92045A
92045-1383
BEARING-BALL,6003SH2-T2
$19.42¢9 712
1
#92055
92055-1593
RING-O,CAMSHAFT BEVEL GEAR
$10.46¢5 231
1
#92055A
92055-1617
RING-O,22.1X1.9
$2.46¢1 231
1
#92145
92145-1285
SPRING
$2.54¢1 269
1
#92151
92151-1647
BOLT,6X14
$2.29¢1 144
1
#92152
92152-1150
COLLAR
$12.29¢6 144
1
#92152A
92152-1151
COLLAR
$9.80¢4 900
1
#92154
92154-0482
BOLT,FLANGED,6X14
$1.69¢844
1
#92180E
92180-1296
SHIM,T=1.20
$3.75¢1 875
1
#92180E
92180-1294
SHIM,T=0.90
$3.81¢1 906
1
#92180E
92180-1293
SHIM,T=0.80
$3.81¢1 906
1
#92180E
92180-1292
SHIM,T=0.70
$3.81¢1 906
1
#92180E
92180-1291
SHIM,T=0.60
$3.81¢1 906
1
#92180E
92180-1289
SHIM,T=0.40
$3.08¢1 538
1
#92180E
92180-1324
SHIM,T=0.13
$3.69¢1 844
1
#92180E
92180-1306
SHIM,T=0.08
$3.69¢1 844
1
#92180
92180-1300
SHIM,T=0.50
$3.81¢1 906
1
#92180
92180-1303
SHIM,T=0.90
$3.81¢1 906
1
#92180
92180-1299
SHIM,T=0.40
$3.08¢1 538
1
#92180
92180-1304
SHIM,T=1.00
$4.35¢2 175
1
#92180
92180-1305
SHIM,T=0.08
$3.69¢1 844
1
#92180
92180-1301
SHIM,T=0.60
$3.81¢1 906
1
#92180
92180-1323
SHIM,T=0.13
$3.69¢1 844
1
#92180
92180-1302
SHIM,T=0.80
$3.81¢1 906
1
#92180E
92180-1290
SHIM,T=0.50
$3.81¢1 906
1
#92180
92180-1279
SHIM,T=0.70
$3.75¢1 875
1
#92180E
92180-1288
SHIM,T=0.30
$3.08¢1 538
1
#92180E
92180-1287
SHIM,T=0.20
$3.08¢1 538
1
#92180
92180-1280
SHIM,T=0.10
$3.08¢1 538
1
#92180
92180-1281
SHIM,T=0.15
$3.08¢1 538
1
#92180
92180-1282
SHIM,T=0.20
$3.08¢1 538
1
#92180
92180-1283
SHIM,T=0.30
$3.81¢1 906
1
#92180E
92180-1284
SHIM,T=1.00
$3.81¢1 906
1
#92180E
92180-1285
SHIM,T=0.10
$3.08¢1 538
1
#92180E
92180-1286
SHIM,T=0.15
$3.08¢1 538
1
#92210
92210-1175
NUT,BEVEL GEAR
$27.66¢13 831
1
#92210A
92210-1176
NUT,BEVEL GEAR HOUSING
$58.41¢29 206
1
