HEADLIGHT S

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

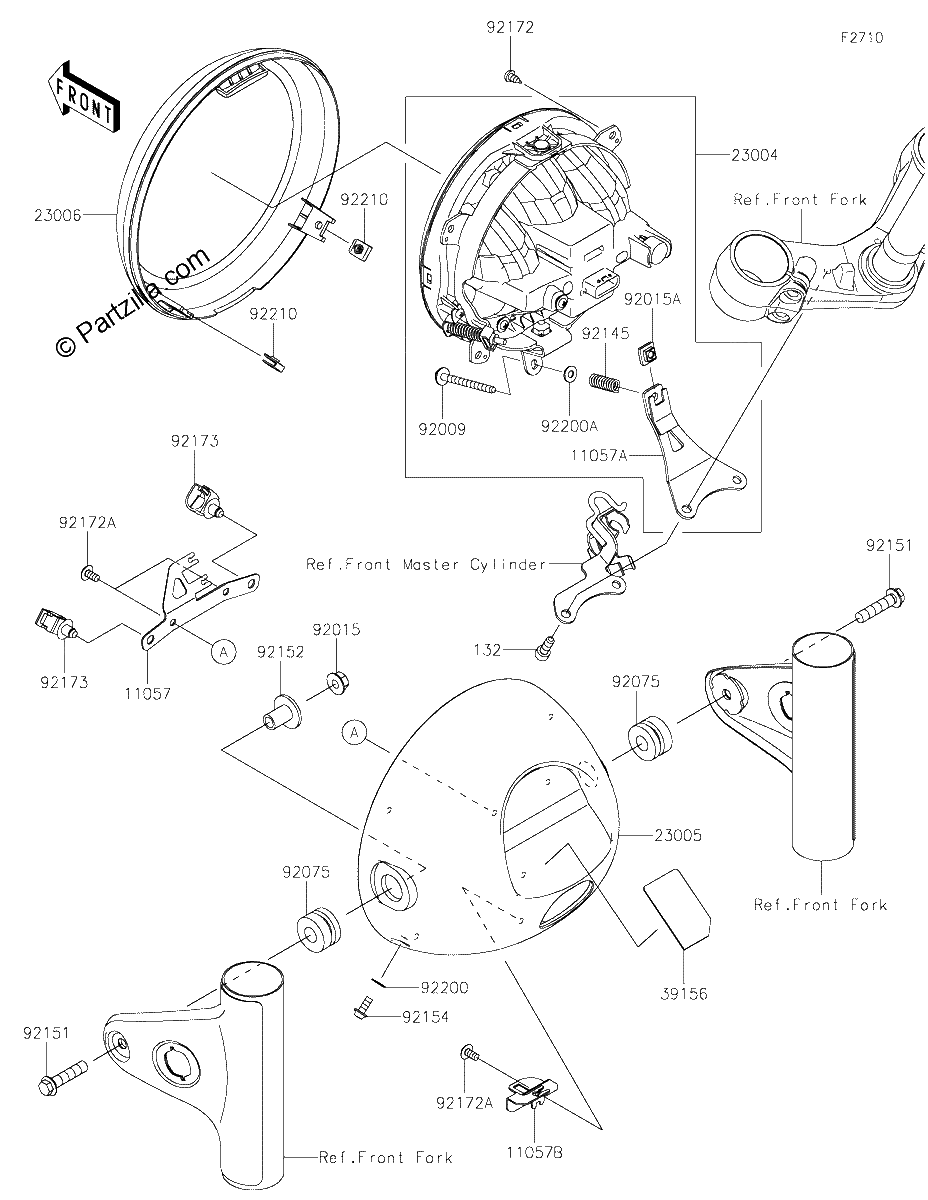

Diagrama de HEADLIGHT S

Repuestos

#132
132BC0616
BOLT FLANGED SMALL,6X16
$0.96¢481
1
#11057
11057-2298
BRACKET
$4.40¢2 200
1
#11057A
11057-2697
BRACKET,HEAD LAMP AIMING
$18.25¢9 125
1
#11057B
11057-2856
BRACKET,ABS SENSOR
$5.07¢2 537
1
#23004
23004-0390
LAMP-HEAD,LED
$1416.70¢708 350
1
#23005
23005-0049-H8
BODY-COMP-HEAD LAMP,EBONY
$206.04¢103 019
1
#23006
23006-0019
RIM-LAMP
$141.25¢70 625
1
#39156
39156-2565
PAD
$14.70¢7 350
1
#92009
92009-1683
SCREW,ADJUST,5X55
$6.75¢3 375
1
#92015
92015-1014
NUT,FLANGED,8MM
$0.74¢369
1
#92015A
92015-1897
NUT,5MM
No Disponible
1
#92075
92075-1736
DAMPER
$6.42¢3 213
1
#92145
92145-1887
SPRING
$24.01¢12 006
1
#92151
92151-1537
BOLT,FLANGED,8X35
$2.56¢1 281
1
#92152
92152-2433
COLLAR,8X12X20.3
$9.09¢4 544
1
#92154
92154-0917
BOLT,SOCKET,5X12
$4.68¢2 338
1
#92172A
92172-0262
SCREW,TAPPING,5X10
$1.35¢675
1
#92172
92172-0239
SCREW,TAPPING,5X12
$1.09¢544
1
#92173
92173-0736
CLAMP,12MM DIA.
$5.01¢2 506
1
#92200A
92200-2282
WASHER
$4.79¢2 394
1
#92200
92200-1480
WASHER,NYLON,5.3X11.5X0.5
$1.56¢781
1
#92210
92210-0571
NUT
$3.50¢1 750
1
