CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

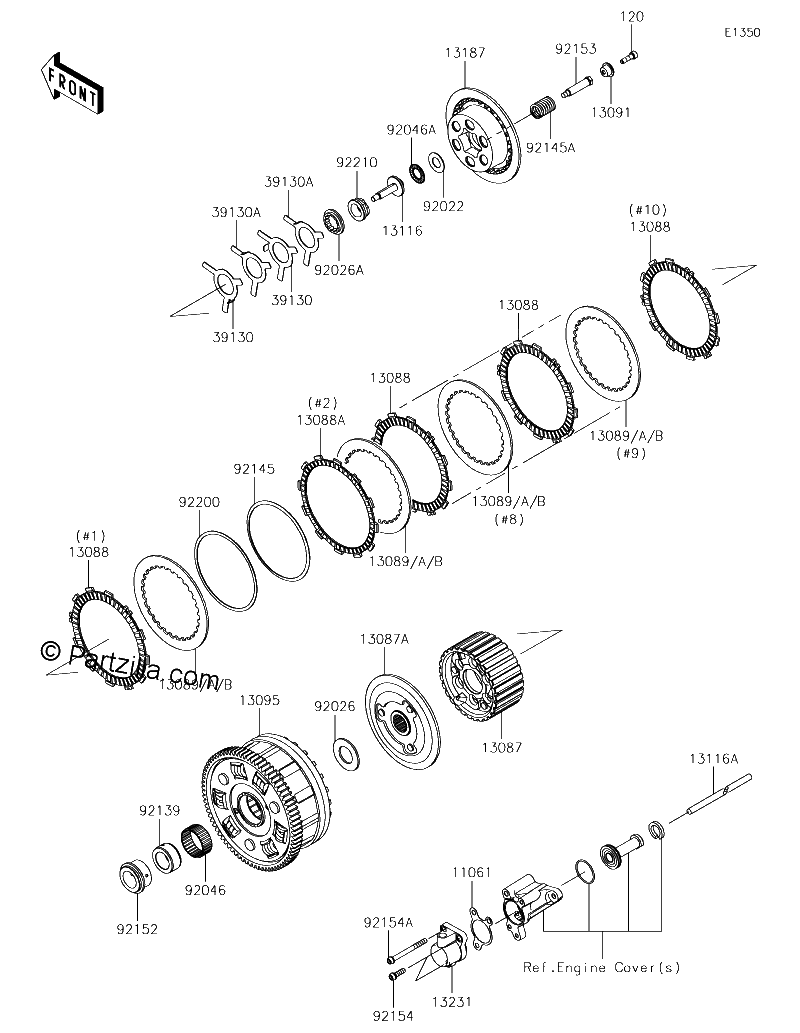

Diagrama de CLUTCH

Repuestos

#120
120Q0620
BOLT SOCKET,6X20
No Disponible
1
#11061
11061-1228
GASKET,CLUTCH RELEASE
$2.27¢1 133
1
#13087
13087-0575
HUB CLUTCH
$371.79¢185 897
1
#13087A
13087-0576
HUB CLUTCH
$194.28¢97 140
1
#13088
13088-0566
PLATE FRICTION
$20.58¢10 292
1
#13088A
13088-0567
PLATE FRICTION
$21.45¢10 724
1
#13089
13089-0021
PLATE-CLUTCH
$10.75¢5 376
1
#13089B
13089-0028
PLATE-CLUTCH,T=2.6
$14.87¢7 435
1
#13089A
13089-0027
PLATE-CLUTCH,T=2.3
$16.63¢8 315
1
#13091
13091-1840
HOLDER,CLUTCH SPRING
$4.24¢2 122
1
#13095
13095-0577
HOUSING-COMP-CLUTCH
$868.66¢434 332
1
#13116
13116-0732
ROD-PUSH
$44.57¢22 287
1
#13116A
13116-0738
ROD-PUSH
$252.68¢126 339
1
#13187
13187-0025
PLATE CLUTCH OPERATING
$106.52¢53 262
1
#13231
13231-0008
RELEASE-ASSY-CLUTCH
$252.68¢126 339
1
#39130A
39130-1079
SPRING-LEAF
$9.02¢4 508
1
#39130
39130-1078
SPRING LEAF
$9.02¢4 508
1
#92022
92022-1463
WASHER,15.1X29X1.0
$4.12¢2 059
1
#92026A
92026-0792
SPACER
$52.22¢26 111
1
#92026
92026-022
SPACER,25.5X47X2.5
$10.32¢5 158
1
#92046A
92046-1052
BEARING-NEEDLE,AXK1102
$13.17¢6 584
1
#92046
92046-0041
BEARING NEEDLE
$21.69¢10 844
1
#92139
92139-0304
BUSHING,25X38X17.3
$41.96¢20 982
1
#92145A
92145-1662
SPRING
$11.03¢5 514
1
#92145
92145-1250
SPRING
$19.43¢9 717
1
#92152
92152-0866
COLLAR
$45.98¢22 988
1
#92153
92153-0797
BOLT
$9.46¢4 732
1
#92154A
92154-1624
BOLT,SOCKET,6X65
$11.12¢5 560
1
#92154
92154-1623
BOLT,SOCKET,6X20
$2.02¢1 012
1
#92200
92200-1579
WASHER,T=1.0
$10.88¢5 440
1
#92210
92210-0397
NUT
$57.01¢28 503
1
