FUEL TANK 1 2 JHFA JJFA JJFB

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

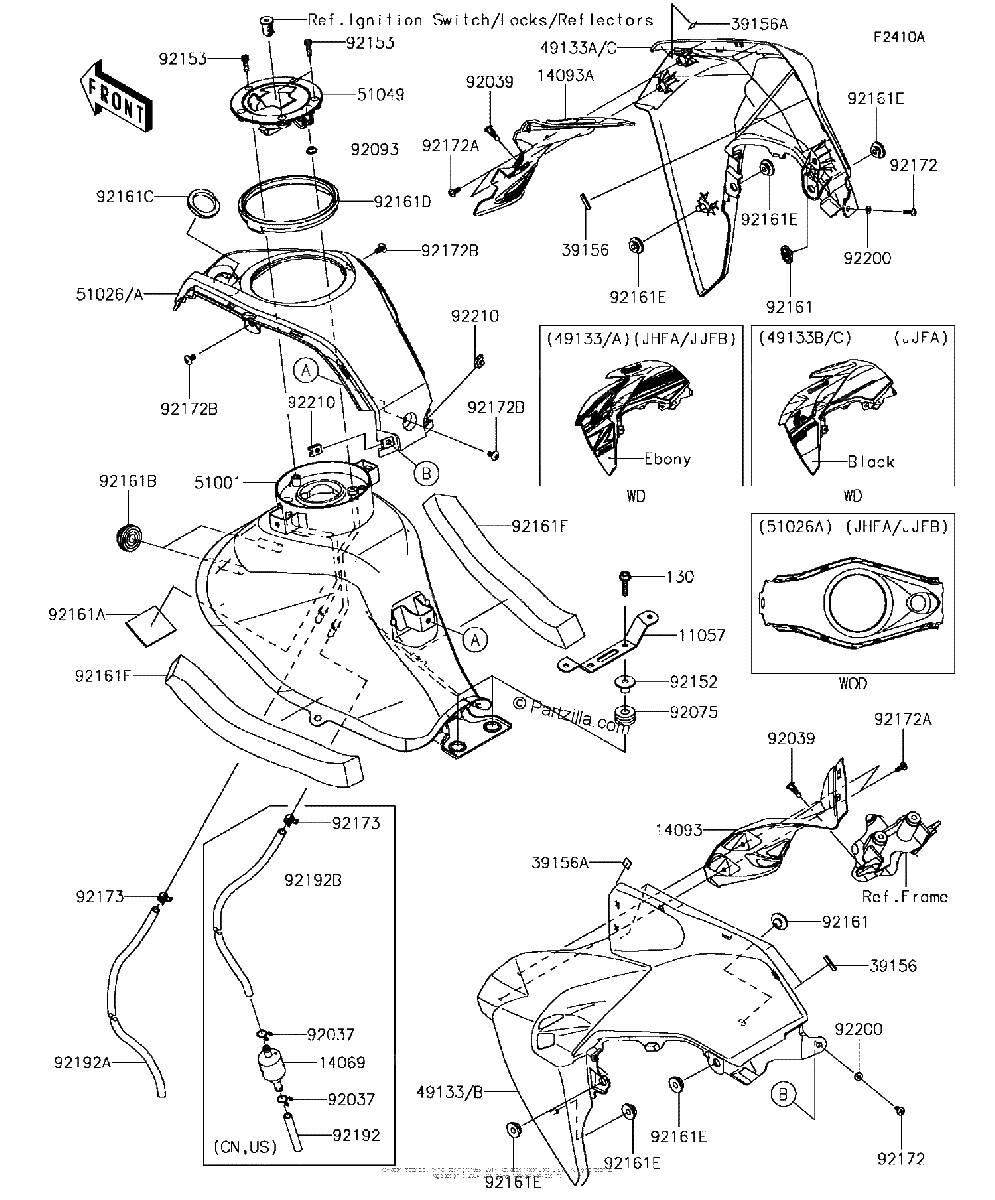

Diagrama de FUEL TANK 1 2 JHFA JJFA JJFB

Repuestos

#11057
11057-0244
BRACKET,SIDE COVER
$9.60¢4 801
1
#14093
14093-0332
COVER,INNER,LH
$12.17¢6 084
1
#14093A
14093-0333
COVER,INNER,RH
$12.17¢6 084
1
#39156
39156-2117
PAD,5X20X2
$0.55¢276
1
#39156A
39156-2118
PAD,10X10X0.2
$0.77¢385
1
#49133C
49133-5302-660
SHROUD,RH,M.S.BLACK
$288.02¢144 009
1
#49133B
49133-5301-660
SHROUD,LH,M.S.BLACK
$288.02¢144 009
1
#51001
51001-0848
TANK-COMP-FUEL
$632.34¢316 170
1
#51026
51026-0012-6Z
COVER TANK,F.BLACK
$79.34¢39 669
1
#51049
51049-0728
CAP-TANK,FUEL
$191.43¢95 715
1
#92039
92039-0709
RIVET
$2.27¢1 133
1
#92075
92075-1690
DAMPER,10X24X12
$4.57¢2 283
1
#92093
92093-1030
SEAL,FUEL TANK CAP
$7.11¢3 553
1
#92152
92152-0697
COLLAR
$1.55¢776
1
#92153
92153-1616
BOLT,SOCKET,5X16
$1.24¢621
1
#92161A
92161-1757
DAMPER,40X50X2
$1.37¢684
1
#92161F
92161-1820
DAMPER
$3.83¢1 915
1
#92161E
92161-1810
DAMPER
$1.14¢569
1
#92161D
92161-1798
DAMPER
$11.12¢5 560
1
#92161C
92161-1797
DAMPER
$2.02¢1 012
1
#92161B
92161-1791
DAMPER,10X32X8
$2.02¢1 012
1
#92161
92161-1685
DAMPER,8X22X10
$0.89¢443
1
#92172A
92172-0959
SCREW,4X12
$0.53¢265
1
#92172
92172-0715
SCREW,4X12
$0.71¢357
1
#92172B
92172-1090
SCREW,5X10
$0.53¢265
1
