CHASSIS ELECTRICAL EQUIPMENT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

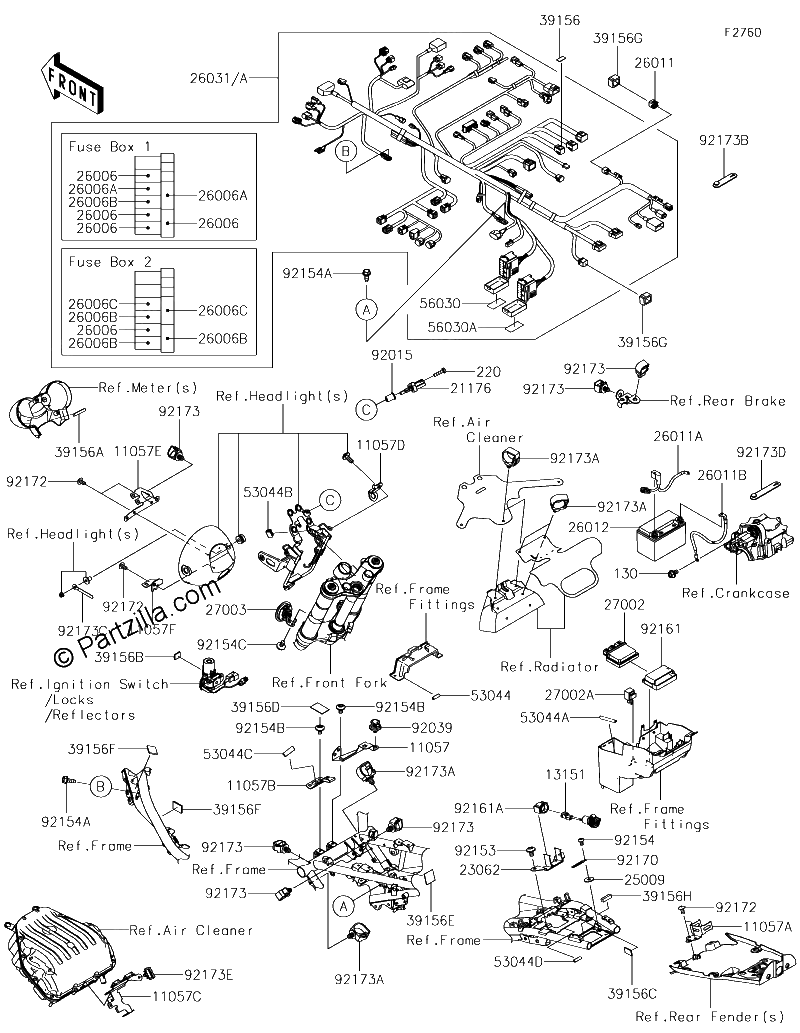

Diagrama de CHASSIS ELECTRICAL EQUIPMENT

Repuestos

#130
130BA0610
BOLT FLANGED,6X10
$1.26¢631
1
#220
220AB0518
SCREW-PAN-CROS,5X18
$3.65¢1 825
1
#11057
11057-0915
BRACKET,MAIN HARNESS
$12.81¢6 406
1
#11057A
11057-0916
BRACKET,MAGNETIC SW.
$7.00¢3 500
1
#11057B
11057-0917
BRACKET,FUEL PUMP CONNECTOR
$6.75¢3 375
1
#11057C
11057-0918
BRACKET,AIR CLEANER
$17.96¢8 981
1
#11057D
11057-0919
BRACKET,METER HARNESS
$5.27¢2 637
1
#11057E
11057-1322
BRACKET,HEAD LAMP COVER,UPP
$10.77¢5 387
1
#11057F
11057-1323
BRACKET,HEAD LAMP COVER,LWR
$3.85¢1 925
1
#13151
13151-0580
SWITCH-COMP,DC OUTLET
$180.26¢90 131
1
#21176
21176-0048
SENSOR,AIR TEMPERATURE
$28.36¢14 181
1
#23062
23062-1000
BRACKET-COMP,DC SOCKET
$14.06¢7 031
1
#25009
25009-004
WASHER,5.2X16X1.2
$3.65¢1 825
1
#26006A
26006-0052
FUSE,MINI BLADE,2A,GRAY
$6.69¢3 344
1
#26006
26006-0001
FUSE,MINI BLADE,15A,BLUE
$6.25¢3 125
1
#26006B
26006-0055
FUSE,MINI BLADE,7.5A,BROWN
$6.69¢3 344
1
#26006C
26006-1080
FUSE,MINI BLADE,30A,GREEN
$5.06¢2 531
1
#26011
26011-0275
WIRE-LEAD,CONNECTOR COVER
$15.71¢7 856
1
#26011A
26011-0971
WIRE-LEAD,BATTERY(+)
$96.95¢48 475
1
#26011B
26011-0972
WIRE-LEAD,BATTERY(-)
$100.21¢50 106
1
#26012
26012-0838
BATTERY,YTX9 BS,12V 8AH
No Disponible
1
#26031
26031-2449
HARNESS,MAIN
$966.18¢483 088
1
#26031A
26031-2450
HARNESS,MAIN
$966.18¢483 088
1
#27002
27002-0025
RELAY-ASSY,BOX
$162.96¢81 481
1
#27002A
27002-1097
RELAY Assembly,SIGNAL LAMP
$56.99¢28 494
1
#27003
27003-0127
HORN
$80.26¢40 131
1
#39156F
39156-2348
PAD,30X40X4
$1.80¢900
1
#39156G
39156-2349
PAD,DIAG CONNECTOR
$5.98¢2 988
1
#39156H
39156-2350
PAD,10X40X10
$1.38¢688
1
#39156D
39156-2287
PAD,17X28X1
$1.56¢781
1
#39156E
39156-2288
PAD,20X20X1
$1.11¢556
1
#39156C
39156-2285
PAD,20X40X4
$1.56¢781
1
#39156B
39156-2284
PAD,20X25X4
$1.38¢688
1
#39156
39156-2241
PAD,10X20X1
$1.11¢556
1
#39156A
39156-2283
PAD,8X50X10
$1.56¢781
1
#53044
53044-0001
TRIM,L=30
$2.68¢1 338
1
#53044A
53044-0018
TRIM
$4.84¢2 419
1
#53044B
53044-0577
TRIM
$2.38¢1 188
1
#53044C
53044-0596
TRIM,9X20
$4.30¢2 150
1
#53044D
53044-0632
TRIM,9X6.5X30
$4.64¢2 319
1
#56030
56030-1339
LABEL,FUSE BOX1
$3.05¢1 525
1
#56030A
56030-1340
LABEL,FUSE BOX2
$3.05¢1 525
1
#92015
92015-1757
NUT,WELL,5MM
$7.26¢3 631
1
#92039
92039-0014
RIVET,HOLE 8MM
$2.97¢1 487
1
#92153
92153-1628
BOLT,SOCKET,6X10
$1.79¢894
1
#92154
92154-0314
BOLT
$1.29¢644
1
#92154A
92154-0551
BOLT,FLANGED,6X16
$1.69¢844
1
#92154B
92154-0774
BOLT,SOCKET,6X10
$1.69¢844
1
#92154C
92154-2706
BOLT,SOCKET,6X12
$1.72¢862
1
#92161
92161-0203
DAMPER,RELAY BOX
$11.73¢5 863
1
#92161A
92161-2069
DAMPER,DC SOCKET
$12.70¢6 350
1
#92170
92170-1514
CLAMP
$4.29¢2 144
1
#92172
92172-0262
SCREW,TAPPING,5X10
$1.35¢675
1
#92173
92173-0736
CLAMP,12MM DIA.
$5.01¢2 506
1
#92173A
92173-0861
CLAMP
$2.75¢1 375
1
#92173B
92173-1229
CLAMP,RUBBER PLATE
$4.16¢2 081
1
#92173C
92173-1306
CLAMP
$1.29¢644
1
#92173D
92173-1526
CLAMP
$4.16¢2 081
1
#92173E
92173-1802
CLAMP,SENSOR WIRE
$1.42¢712
1
