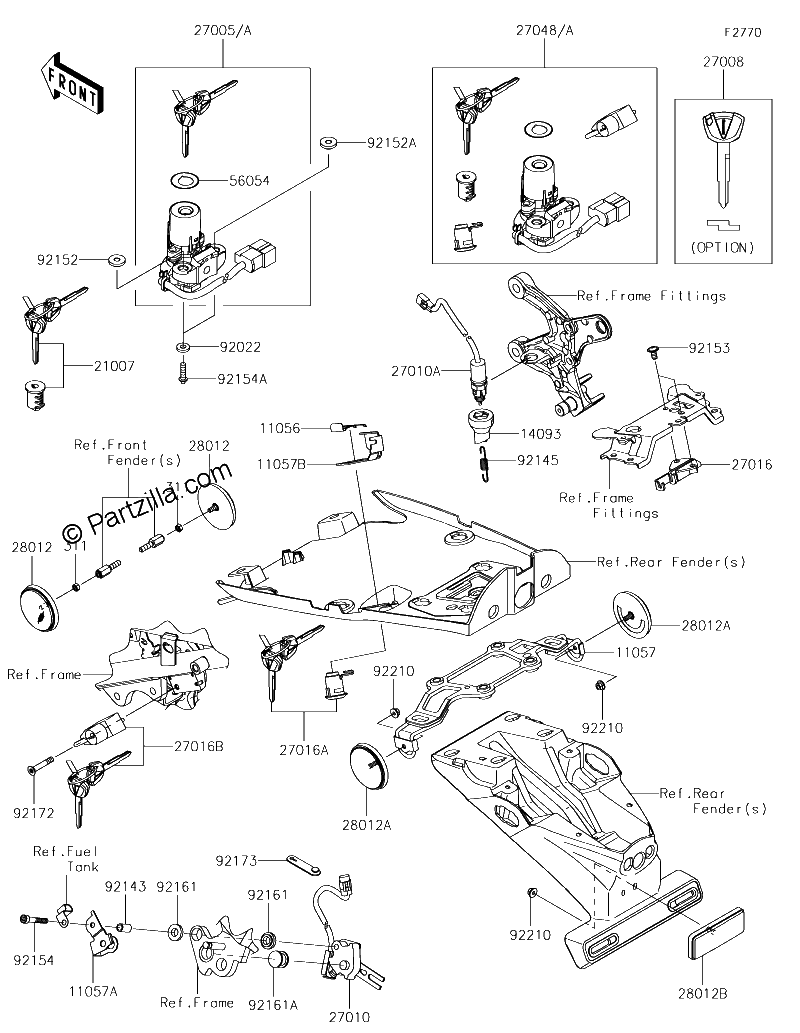

IGNITION SWITCH LOCKS REFLECTORS
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#311
NUT HEX,5MM
$0.60¢300
#11056
BRACKET,CLASP
$5.90¢2 950
#11057
BRACKET,RR REFLECTOR
$188.19¢94 094
#11057A
BRACKET,STAND SW.
$9.11¢4 556
#11057B
BRACKET,SEAT LOCK CABLE
$18.15¢9 075
#14093
COVER,BRAKE SW.
$8.51¢4 256
#21007
ROTOR,LOCK,TANK CAP
$106.38¢53 188
#27005
SWITCH-ASSY-IGNITION *{( JKAZR2C1 JA000651 - )}*
$223.23¢111 613
#27005A
SWITCH-ASSY-IGNITION *{( - JKAZR2C1 JA000650)}*
$270.17¢135 087
#27008
KEY-LOCK,BLANK,IMMOBI *{(OPTION)}*
$71.13¢35 563
#27010
SWITCH,SIDE STAND
$86.25¢43 125
#27010A
SWITCH,RR BRAKE
$40.17¢20 088
#27016
LOCK Assembly,SEAT STRIKER
$34.35¢17 175
#27016A
LOCK-ASSY,SEAT
$108.81¢54 406
#27016B
LOCK-ASSY,HELMET
$82.74¢41 369
#27048
SWITCH-ASSY *{( JKAZR2C1 JA000651 - )}*
$599.35¢299 675
#27048A
SWITCH-ASSY *{( - JKAZR2C1 JA000650)}*
$624.31¢312 156
#28012B
REFLECTOR-REFLEX
$25.47¢12 737
#28012A
REFLECTOR REFLEX
$25.51¢12 756
#28012
REFLECTOR-REFLEX,FR,SIDE
$25.51¢12 756
#56054
MARK,IGNITION
$11.55¢5 775
#92022
WASHER,7X15.5X3
$4.64¢2 319
#92143
COLLAR,6.5X9.5X17
$4.30¢2 150
#92145
SPRING,REAR BRAKE
$5.17¢2 588
#92152A
COLLAR,RH,IGN SW,6.45X20X7.4
$13.65¢6 825
#92152
COLLAR,LH,IGN SW,6X20X7.4
$12.22¢6 113
#92153
BOLT,SOCKET,6X12
$1.35¢675
#92154A
BOLT,TORX,6X22
$3.93¢1 963
#92154
BOLT,SOCKET,6X40
$1.69¢844
#92161A
DAMPER
$2.76¢1 381
#92161
DAMPER
$2.76¢1 381
#92172
SCREW,HEXLOBE,6X35
$2.86¢1 431
#92173
CLAMP,RUBBER PLATE
$4.16¢2 081
#92210
NUT,FLANGED,5MM
$2.48¢1 238
