FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

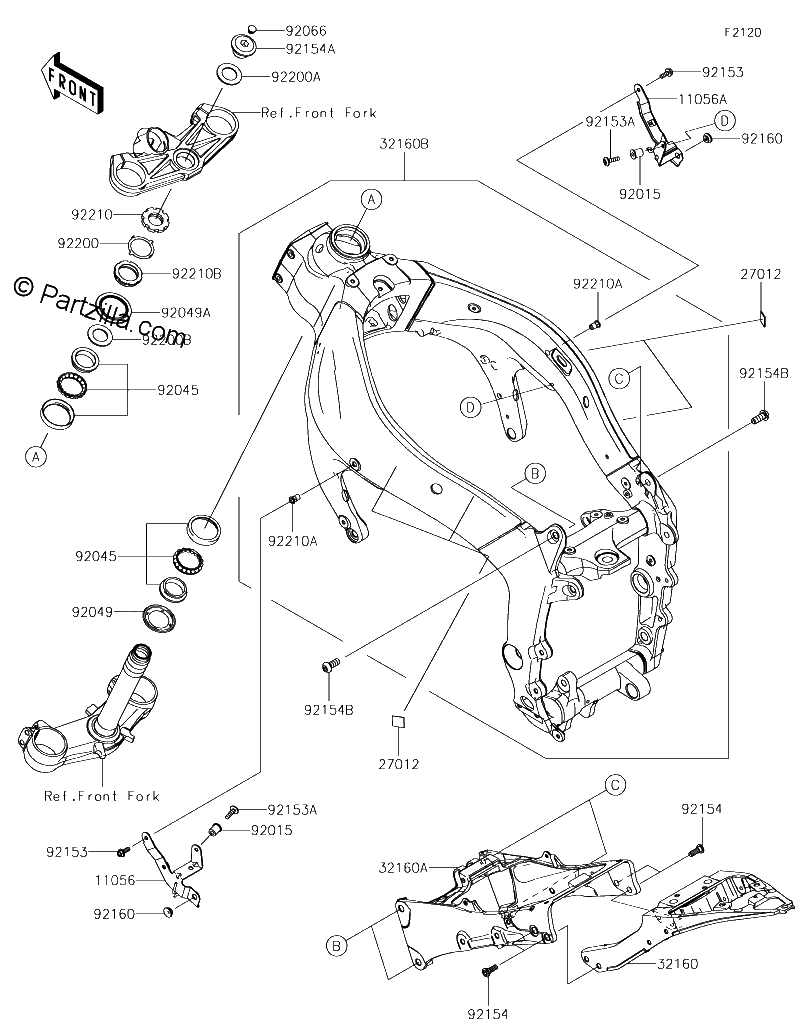

Diagrama de FRAME

Repuestos

#11056
11056-1961
BRACKET,COWLING,Left Hand
$40.01¢20 004
1
#11056A
11056-2390
BRACKET,COWLING,Right Hand
$38.24¢19 119
1
#27012
27012-0741
HOOK,30X30X3.2
$7.19¢3 594
1
#32160
32160-0398
FRAME-COMP,RR,RR
$239.00¢119 502
1
#32160B
32160-0642
FRAME COMP
$2106.03¢1 053 015
1
#32160A
32160-0399
FRAME COMP,Rear,Front
$267.96¢133 981
1
#92015
92015-1700
NUT
$7.84¢3 922
1
#92045
92045-1384
BEARING BALL,SF07A17PX1V1
$47.85¢23 926
1
#92049
92049-0022
SEAL-OIL,DS35X55X4
$15.72¢7 860
1
#92049A
92049-0742
SEAL-OIL,43X55.5X8.6
$18.07¢9 033
1
#92066
92066-0071
PLUG
$2.77¢1 386
1
#92153
92153-0713
BOLT,FLANGED,6X16
$1.84¢920
1
#92153A
92153-1356
BOLT,SOCKET,6X22
$1.87¢937
1
#92154A
92154-1167
BOLT,26X18
$27.66¢13 829
1
#92154B
92154-1900
BOLT,SOCKET,10X25
$4.53¢2 266
1
#92154
92154-0077
BOLT,SOCKET,8X23
$3.29¢1 644
1
#92160
92160-1613
DAMPER
$3.40¢1 702
1
#92200B
92200-0862
WASHER,36X47X0.6
$3.52¢1 759
1
#92200A
92200-0081
WASHER,27X42X2.3
$3.40¢1 702
1
#92200
92200-0036
WASHER
$4.57¢2 283
1
#92210A
92210-0099
NUT,6MM
$5.07¢2 536
1
#92210
92210-0095
NUT,35MM
$16.50¢8 251
1
#92210B
92210-0823
NUT,35MM
$24.59¢12 293
1
