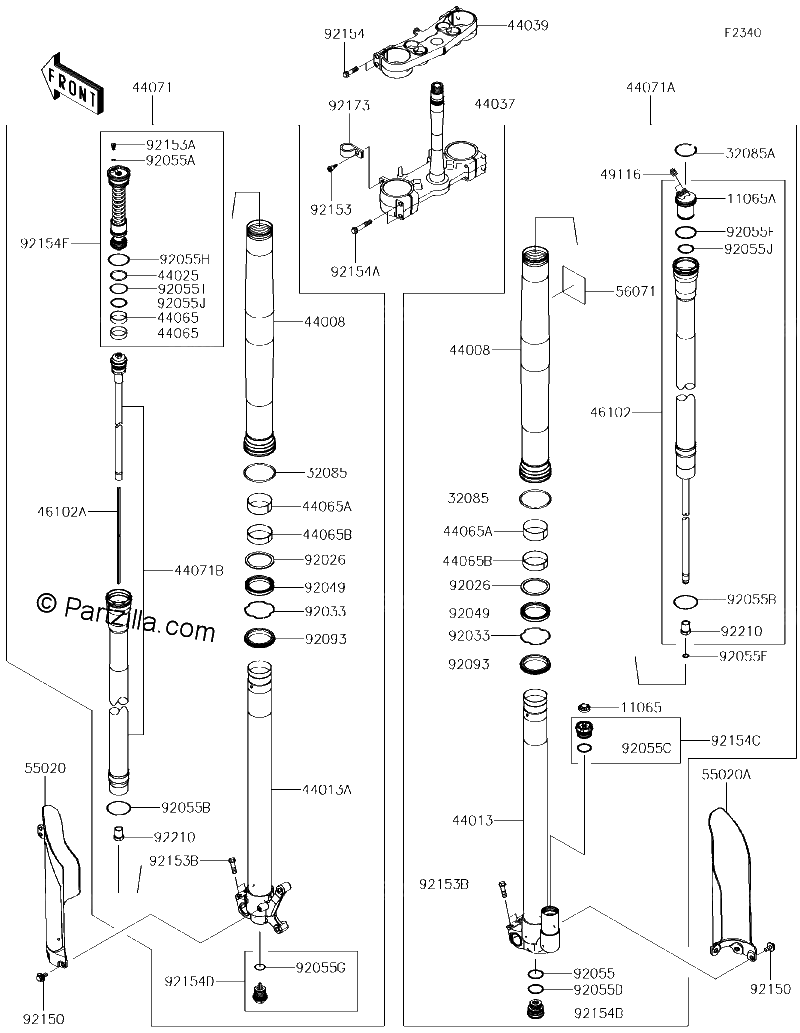

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#11065
CAP,AIR VALVE
$2.74¢1 368
#11065A
CAP,CHAMBER,G.B.GREEN
$116.15¢58 075
#32085
STOPPER,RING
$5.66¢2 829
#32085A
STOPPER
$5.69¢2 846
#44008
PIPE-FORK OUTER
$605.68¢302 841
#44013
PIPE-FORK INNER,RH
$674.24¢337 122
#44013A
PIPE-FORK INNER,LH
$674.24¢337 122
#44025
RING-FORK PISTON
$20.14¢10 068
#44037
HOLDER-FORK UNDER,F.BLACK
$717.47¢358 737
#44039
HOLDER-FORK UPPER,F.BLACK
$294.42¢147 211
#44065
BUSHING-FRONT FORK,SLIDE
$8.29¢4 146
#44065A
BUSHING-FRONT FORK
$13.70¢6 848
#44065B
BUSHING FRONT FORK
$14.80¢7 400
#44071
DAMPER-ASSY,FORK,LH,GR+BLK+BLK
$2725.64¢1 362 819
#44071B
DAMPER-ASSY,COMP
$781.88¢390 942
#44071A
DAMPER-ASSY,FORK,RH,GR+BLK+BLK
$2253.16¢1 126 580
#46102
ROD,G.B.GREEN
$1143.42¢571 711
#46102A
ROD,PUSH
$10.88¢5 440
#49116
VALVE Assembly,AIR
$1.76¢880
#55020
GUARD,FORK,Left Hand,EBONY
$61.61¢30 803
#55020A
GUARD,FORK,Right Hand,EBONY
$61.61¢30 803
#56071
LABEL WARNING
$19.73¢9 867
#92026
SPACER,SEAL
$4.04¢2 018
#92033
RING SNAP
$5.81¢2 904
#92049
SEAL OIL
$34.06¢17 031
#92055G
RING-O
$1.55¢776
#92055H
RING-O
$5.32¢2 662
#92055I
RING-O
$4.57¢2 283
#92055J
RING-O
$5.38¢2 691
#92055E
RING O
$1.40¢701
#92055F
RING-O
$5.38¢2 691
#92055D
RING-O
$1.55¢776
#92055C
RING-O
$3.42¢1 708
#92055
RING-O
$3.83¢1 915
#92055A
RING O
$2.51¢1 254
#92055B
RING O
$3.52¢1 759
#92093
SEAL
$20.93¢10 465
#92150
BOLT,6X14
$4.62¢2 311
#92153B
BOLT,FLANGED,8X40
$4.45¢2 225
#92153A
BOLT,PLUG
$2.92¢1 461
#92153
BOLT,FLANGED
$3.78¢1 892
#92154A
BOLT
$3.45¢1 725
#92154B
BOLT,SEALING
$33.88¢16 940
#92154C
BOLT
$72.88¢36 438
#92154D
BOLT,CNT
$48.27¢24 133
#92154E
BOLT,G.B.GREEN
$451.23¢225 613
#92154
BOLT
$4.23¢2 116
#92173
CLAMP
$15.70¢7 849
#92210
NUT,LOCK
$15.50¢7 751
