CARBURETOR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

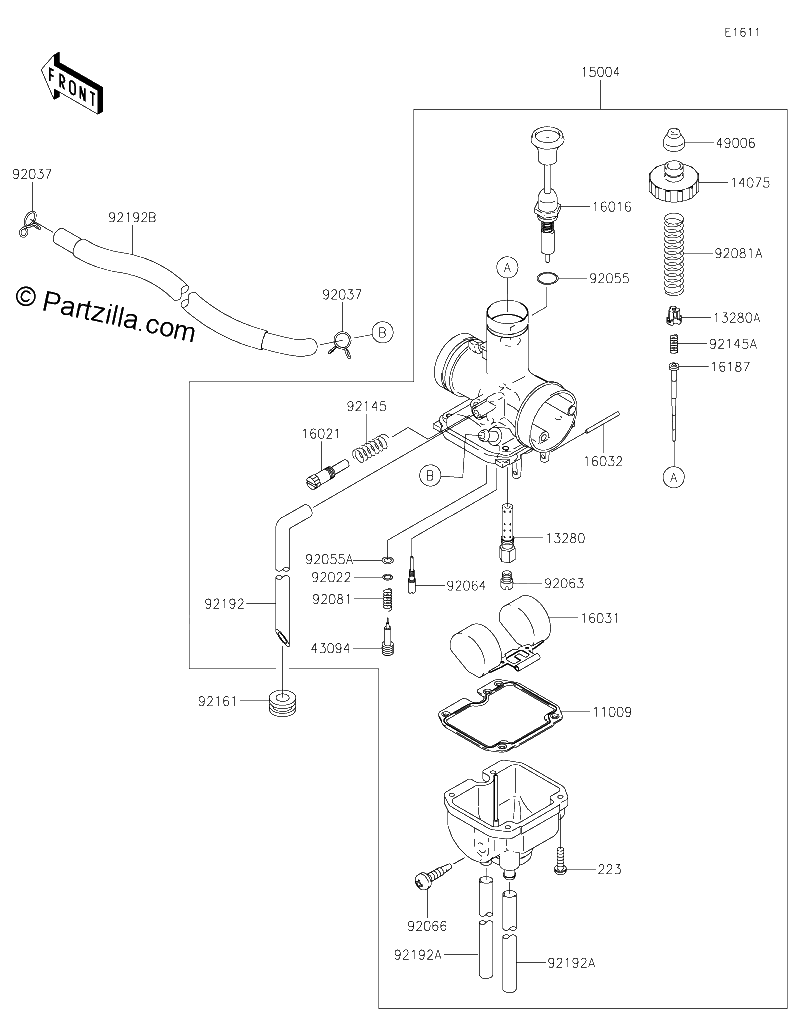

Diagrama de CARBURETOR

Repuestos

#223
223AA0414
SCREW-PAN-WS-CROS,4X14
$1.51¢756
1
#11009
11009-1676
GASKET,FLOAT CHAMBER
$17.44¢8 719
1
#13280
13280-0065
HOLDER,JET
$21.07¢10 538
1
#13280A
13280-0901
HOLDER
$2.56¢1 281
1
#14075
14075-0003
CAP-ASSY
$18.00¢9 000
1
#15004
15004-1000
CARBURETOR-ASSY
$775.10¢387 550
1
#16016
16016-0011
PLUNGER
$70.44¢35 219
1
#16021
16021-1126
SCREW-THROTTLE STOP
$17.90¢8 950
1
#16031
16031-1055
FLOAT
$61.01¢30 506
1
#16032
16032-003
PIN,FLOAT
$6.69¢3 344
1
#16187
16187-0578
NEEDLE-JET
$29.01¢14 506
1
#43094
43094-0001
ADJUSTER
$24.01¢12 006
1
#49006
49006-1203
BOOT,STARTER PLUNGER
$13.95¢6 975
1
#92022
92022-1187
WASHER,ADJUST SCREW
$6.35¢3 175
1
#92037
92037-1712
CLAMP
$4.96¢2 481
1
#92055
92055-1252
RING-O,STARTER PLUNGER
$5.24¢2 619
1
#92055A
92055-1658
RING O,AIR SCREW
$5.90¢2 950
1
#92063
92063-1031
JET-MAIN,#A95R
$15.95¢7 975
1
#92064
92064-0025
JET-PILOT
$47.80¢23 900
1
#92066
92066-0050
PLUG,DRAIN
$17.80¢8 900
1
#92081A
92081-1691
SPRING,THROTTLE VALVE
$15.67¢7 837
1
#92081
92081-1690
SPRING,PILOT AIR SCREW
$6.29¢3 144
1
#92145A
92145-1786
SPRING
$1.93¢963
1
#92145
92145-1559
SPRING
$2.34¢1 169
1
#92161
92161-0031
DAMPER
$0.84¢419
1
#92192A
92192-1066
TUBE
$10.14¢5 069
1
#92192
92192-1065
TUBE
$10.14¢5 069
1
#92192B
92192-1780
TUBE,TAP ASSY-CARBURETOR
$22.91¢11 456
1
