DRIVE SHAFT FINAL GEAR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

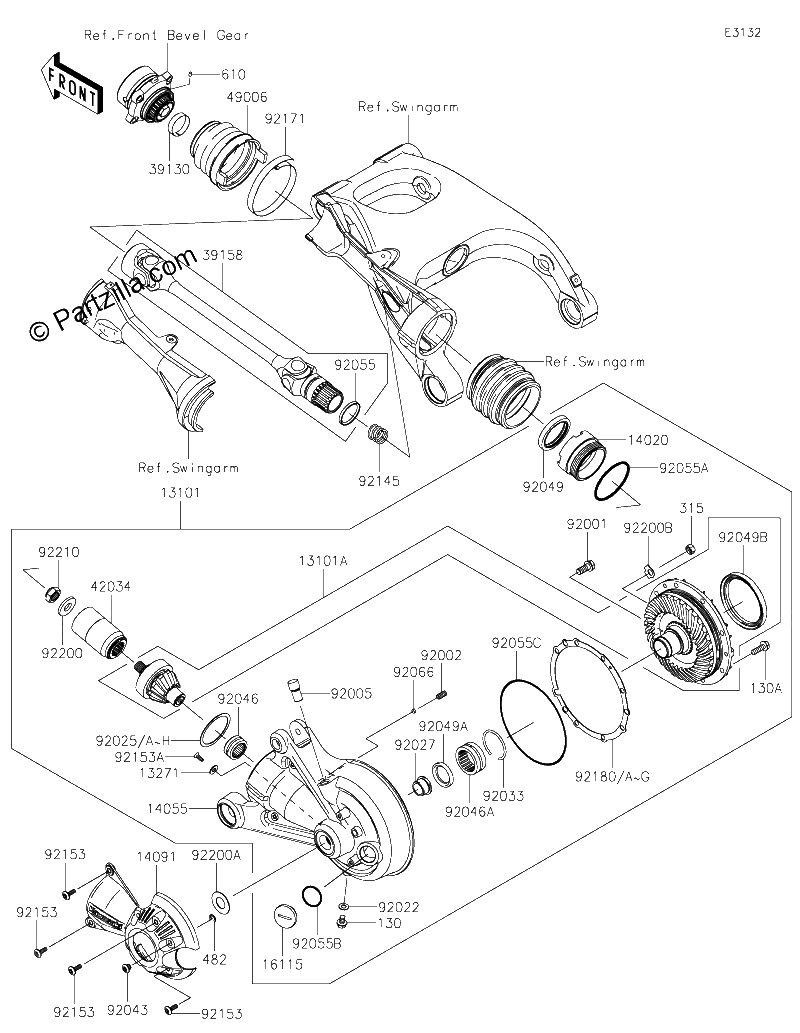

Diagrama de DRIVE SHAFT FINAL GEAR

Repuestos

#130
130BB0812
BOLT-FLANGED,8X12
$0.81¢406
1
#130A
130BD0825
BOLT FLANGED,8X25
$4.11¢2 056
1
#315
315BA1000
NUT HEX FINE,10MM
$1.63¢813
1
#482
482EA7000
CIRCLIP-TYPE-E
$3.90¢1 950
1
#610
610A0406
ROLLER,4X6
$4.29¢2 144
1
#13101
13101-0124-458
GEAR Assembly,P SILVER
$2553.45¢1 276 725
1
#13101A
13101-5095
GEAR Assembly
$1511.22¢755 613
1
#13271
13271-0930
PLATE
$4.11¢2 056
1
#14020
14020-0010
RETAINER
$101.11¢50 556
1
#14055
14055-0034-458
CASE GEAR,P SILVER
$1916.86¢958 431
1
#14091
14091-0908
COVER,DRIVE SHAFT
$100.20¢50 100
1
#16115
16115-1070
CAP-OIL FILLER
$29.60¢14 800
1
#39130
39130-1002
SPRING-LEAF
$4.84¢2 419
1
#39158
39158-0004
SHAFT-ASSY-DRIVE
$1066.42¢533 213
1
#42034
42034-0039
COUPLING
$171.75¢85 875
1
#49006
49006-0071
BOOT
$45.51¢22 756
1
#92001
92001-1778
BOLT,10X23
$6.08¢3 038
1
#92002
92002-1836
SCREW-SET-SOCKET,8X18
$4.88¢2 438
1
#92005
92005-0094
FITTING
$55.75¢27 875
1
#92022
92022-1086
WASHER,8.2X16X1
$3.56¢1 781
1
#92025
92025-1733
SHIM,T=0.10
$20.02¢10 013
1
#92025D
92025-1737
SHIM,T=0.70
$10.75¢5 375
1
#92025A
92025-1734
SHIM,T=0.15
$16.07¢8 038
1
#92025B
92025-1735
SHIM,T=0.50
$10.75¢5 375
1
#92025C
92025-1736
SHIM,T=0.60
$9.96¢4 981
1
#92025E
92025-1738
SHIM,T=0.80
$9.96¢4 981
1
#92025F
92025-1739
SHIM,T=0.90
$9.96¢4 981
1
#92025G
92025-1740
SHIM,T=1.00
$9.96¢4 981
1
#92025H
92025-1741
SHIM,T=1.20
$9.96¢4 981
1
#92027
92027-1557
COLLAR
$11.63¢5 813
1
#92033
92033-1074
RING-SNAP,52MM
$4.84¢2 419
1
#92043
92043-0127
PIN
$5.79¢2 894
1
#92046
92046-1168
BEARING NEEDLE,RNA4904ARD
$57.66¢28 831
1
#92046A
92046-1169
BEARING NEEDLE,38NQ5020WD
$69.69¢34 844
1
#92049A
92049-1025
SEAL OIL,S 35477HS
$14.74¢7 369
1
#92049B
92049-1280
SEAL-OIL,MHSA83X100X9XRT
$37.02¢18 513
1
#92049
92049-0085
SEAL OIL,HTC 50 65 9
$15.16¢7 581
1
#92055B
92055-049
RING-O,31.5X2.6
$4.29¢2 144
1
#92055C
92055-3771
RING-O,OUTSIDE
$15.16¢7 581
1
#92055A
92055-0134
RING O,67.6X3.5
$5.79¢2 894
1
#92055
92055-0115
RING O
$45.81¢22 906
1
#92066
92066-1272
PLUG,6.2X3
$3.01¢1 506
1
#92145
92145-0549
SPRING,25.8X4.0X86.2
$18.47¢9 237
1
#92153A
92153-1787
BOLT,TORX,5X15
$2.13¢1 063
1
#92153
92153-0816
BOLT,6X18
$2.04¢1 019
1
#92171
92171-1715
CLAMP
$14.49¢7 244
1
#92180B
92180-0265
SHIM,T=0.60
$17.56¢8 781
1
#92180A
92180-0264
SHIM,T=0.50
$17.56¢8 781
1
#92180D
92180-0267
SHIM,T=0.80
$17.56¢8 781
1
#92180C
92180-0266
SHIM,T=0.70
$17.56¢8 781
1
#92180E
92180-0268
SHIM,T=0.90
$17.56¢8 781
1
#92180F
92180-0269
SHIM,T=1.00
$17.56¢8 781
1
#92180G
92180-0270
SHIM,T=1.20
$17.56¢8 781
1
#92180
92180-0263
SHIM,T=0.15
$17.56¢8 781
1
#92200A
92200-0321
WASHER,20.5X40X1.2
$4.11¢2 056
1
#92200B
92200-1003
WASHER
$2.50¢1 250
1
#92200
92200-0320
WASHER,16X36X4
$8.63¢4 313
1
#92210
92210-0354
NUT,16MM
$18.65¢9 325
1
