CHASSIS ELECTRICAL EQUIPMENT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

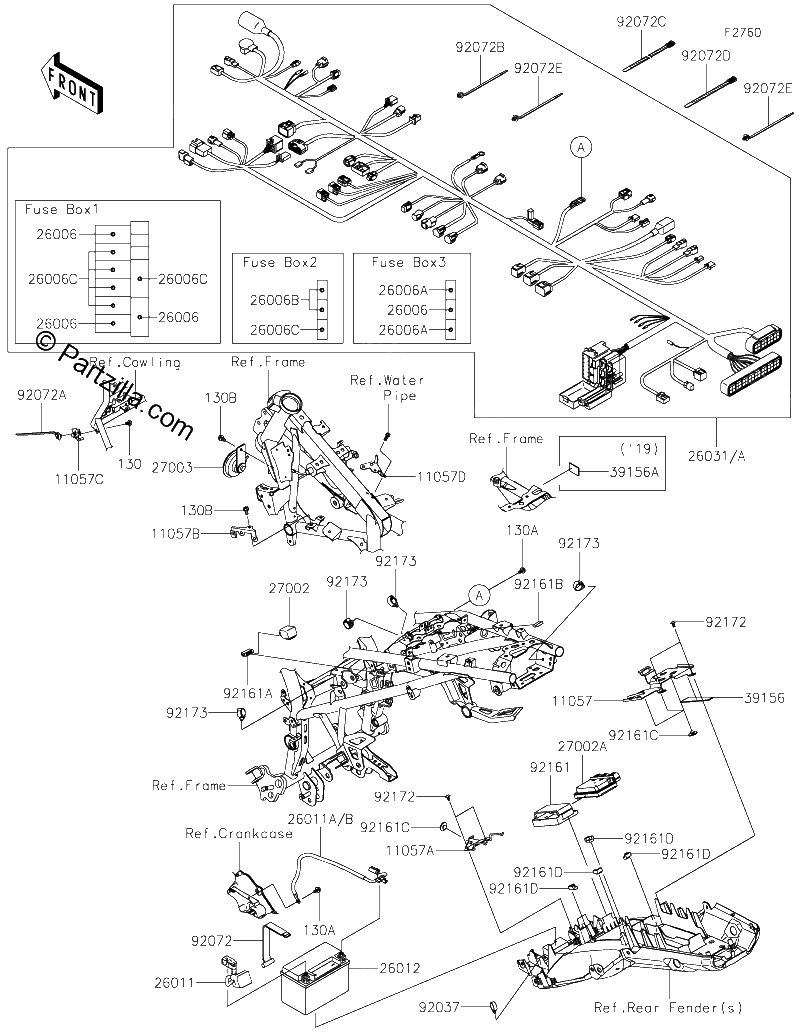

Diagrama de CHASSIS ELECTRICAL EQUIPMENT

Repuestos

#130
130BA0608
BOLT-FLANGED,6X8
$0.81¢406
1
#130B
130BA0612
BOLT-FLANGED,6X12 | [CA]
$1.64¢819
1
#130A
130BA0610
BOLT FLANGED,6X10
$1.26¢631
1
#11057
11057-0558
BRACKET,ECU,UPP
$25.04¢12 519
1
#11057A
11057-0559
BRACKET,RR FENDER
$8.58¢4 288
1
#11057B
11057-0566
BRACKET,FRM PIPE,LH
$6.25¢3 125
1
#11057C
11057-0703
BRACKET,RELAY
$4.11¢2 056
1
#11057D
11057-1220
BRACKET,FRM PIPE,RH
$5.51¢2 756
1
#26006
26006-0001
FUSE,MINI BLADE,15A,BLUE
$6.25¢3 125
1
#26006A
26006-0020
FUSE,MINI BLADE,25A,NATURAL
$6.69¢3 344
1
#26006B
26006-1077
FUSE,MINI BLADE,5A,TAN
$5.06¢2 531
1
#26006C
26006-1078
FUSE,MINI BLADE,10A,RED
$4.38¢2 188
1
#26011
26011-0959
WIRE-LEAD,BATTERY(+)
$71.39¢35 694
1
#26011A
26011-0961
WIRE-LEAD,BATTERY(-)
$38.91¢19 456
1
#26012
26012-0608
BATTERY,FTX9-BS,12V 8AH
No Disponible
1
#26031
26031-2372
HARNESS,MAIN
$1589.74¢794 869
1
#26031A
26031-2373
HARNESS,MAIN
$1575.14¢787 569
1
#27002A
27002-0028
RELAY-ASSY
$162.96¢81 481
1
#27002
27002-0006
RELAY Assembly,SIGNAL LAMP
$65.61¢32 806
1
#27003
27003-0124
HORN
$98.01¢49 006
1
#39156
39156-2145
PAD,28X112X2
$1.80¢900
1
#92037
92037-1827
CLAMP,HOSE
$7.41¢3 706
1
#92072E
92072-1414
BAND
$3.70¢1 850
1
#92072D
92072-1293
BAND,L=140
$6.85¢3 425
1
#92072C
92072-1237
BAND,L=250
$2.01¢1 006
1
#92072B
92072-0813
BAND,POP-2763
$1.05¢525
1
#92072A
92072-0807
BAND
$1.49¢744
1
#92072
92072-0749
BAND
$20.75¢10 375
1
#92161D
92161-1909
DAMPER,ECU CORNER
$1.29¢644
1
#92161C
92161-1685
DAMPER,8X22X10
$0.96¢481
1
#92161B
92161-1472
DAMPER
$2.75¢1 375
1
#92161A
92161-1443
DAMPER,15X25X8.5
$1.95¢975
1
#92161
92161-0203
DAMPER,RELAY BOX
$11.73¢5 863
1
#92172
92172-0262
SCREW,TAPPING,5X10
$1.35¢675
1
#92173
92173-0868
CLAMP,HOLDER CLIP
$2.75¢1 375
1
