SWINGARM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

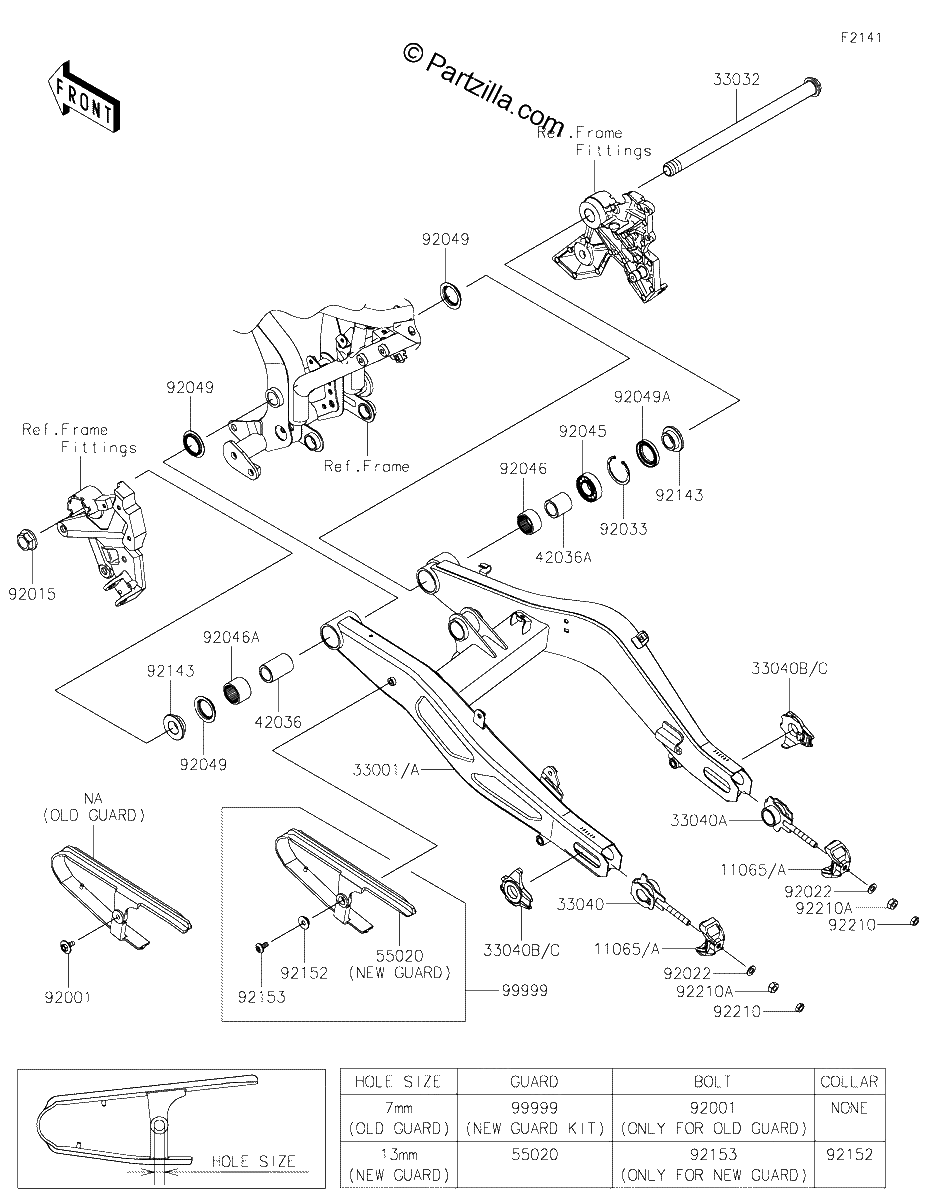

Diagrama de SWINGARM

Repuestos

#11065
11065-0957-10
CAP,BLACK
$16.09¢8 044
1
#11065
11065-0957-18R
CAP,F.S.BLACK
$14.33¢7 163
1
#33001
33001-0663-10
ARM-COMP-SWING,BLACK
$854.11¢427 056
1
#33001
33001-0663-18R
ARM-COMP-SWING,F.S.BLACK
$804.26¢402 131
1
#33032
33032-0050
SHAFT-SWING ARM,20X298
$120.41¢60 206
1
#33040
33040-0085
ADJUSTER-CHAIN,IN,LH
$28.84¢14 419
1
#33040B
33040-0087-18R
ADJUSTER-CHAIN,OUTER,F.S.BLACK
$20.96¢10 481
1
#33040B
33040-0087-10
ADJUSTER CHAIN,OUTER,BLACK
$21.85¢10 925
1
#33040A
33040-0086
ADJUSTER-CHAIN,IN,RH
$28.84¢14 419
1
#42036
42036-0785
SLEEVE,20.1X28X43.5
$38.85¢19 425
1
#42036A
42036-0786
SLEEVE,20.1X28X29.5
$34.80¢17 400
1
#55020
55020-2359
GUARD,CHAIN
$52.58¢26 288
1
#92001
92001-1950
BOLT,6X16
$4.29¢2 144
1
#92015
92015-1724
NUT,FLANGED,20MM
$14.74¢7 369
1
#92022
92022-1582
WASHER,8.5X16X1.2
$1.05¢525
1
#92033
92033-1041
RING SNAP,42MM
$6.04¢3 019
1
#92045
92045-0017
BEARING BALL,6004UL11
$14.24¢7 119
1
#92046A
92046-1202
BEARING-NEEDLE,BM2824
$26.51¢13 256
1
#92046
92046-0008
BEARING NEEDLE,7E HVS 28X34X17
$22.69¢11 344
1
#92049A
92049-0138
SEAL OIL
$10.65¢5 325
1
#92049
92049-0132
SEAL OIL
$9.31¢4 656
1
#92143
92143-1727
COLLAR,SWING ARM,RH,L=12.5
$21.46¢10 731
1
#92152
92152-2786
COLLAR
$4.09¢2 044
1
#92153
92153-1361
BOLT,SOCKET,6X14
$2.52¢1 263
1
#92210A
92210-0117
NUT,8MM
$1.86¢931
1
#92210
92210-0116
NUT,8MM
$1.86¢931
1
#99999
99999-0894
KIT,CHAIN GUARD,Z650/NINJA650
$56.13¢28 063
1
