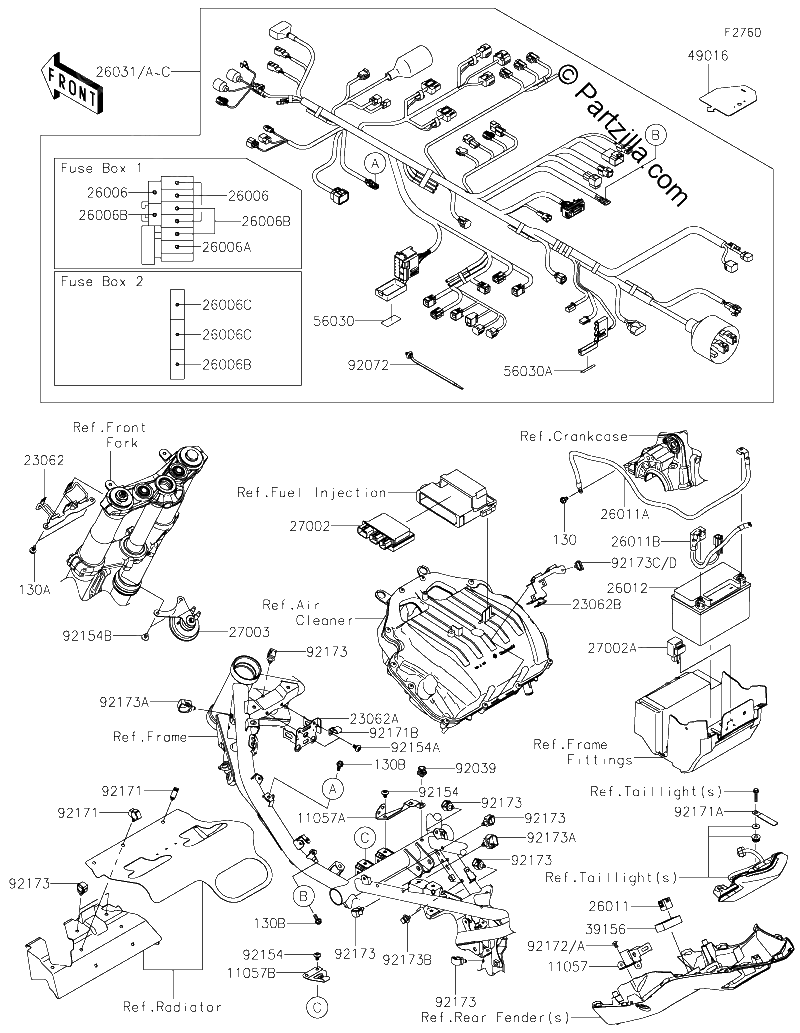

CHASSIS ELECTRICAL EQUIPMENT
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#130
BOLT FLANGED,6X10
$1.16¢581
#130A
BOLT-FLANGED,6X12 | [CA]
$1.51¢753
#130B
BOLT FLANGED,6X16
$1.16¢581
#11057
BRACKET,RELAY
$5.53¢2 766
#11057A
BRACKET,MAIN HARNESS
$11.79¢5 894
#11057B
BRACKET,CONNECTOR
$4.57¢2 283
#23062
BRACKET-COMP,UPP HOLDER
$17.58¢8 792
#23062B
BRACKET-COMP,A/C BOX
$8.16¢4 082
#23062A
BRACKET-COMP,V.D. SENSOR
$14.18¢7 090
#26006
FUSE,MINI BLADE,15A,BLUE
$5.75¢2 875
#26006A
FUSE,MINI BLADE,2A,GRAY
$6.15¢3 076
#26006B
FUSE,MINI BLADE,7.5A,BROWN
$6.15¢3 076
#26006C
FUSE,MINI BLADE,30A,GREEN
$4.66¢2 329
#26011
WIRE-LEAD,CONNECTOR COVER
$14.46¢7 228
#26011B
WIRE-LEAD,BATTERY(+)
$99.33¢49 663
#26011A
WIRE-LEAD,BATTERY(-)
$93.02¢46 512
#26012
BATTERY,FTX9-BS,12V 8AH
No Disponible
#26031
HARNESS,MAIN
$756.62¢378 310
#26031A
HARNESS,MAIN
$756.62¢378 310
#27002A
RELAY Assembly,SIGNAL LAMP
$52.43¢26 214
#27002
RELAY-ASSY,BOX
$149.93¢74 963
#27003
HORN
$76.27¢38 134
#39156
PAD,32X52X15
$13.45¢6 727
#49016
COVER-SEAL
$6.06¢3 030
#56030A
LABEL,FUSE BOX2
$2.81¢1 403
#56030
LABEL,FUSE BOX1
$2.81¢1 403
#92039
RIVET,HOLE 8MM
$2.74¢1 368
#92072
BAND
$3.40¢1 702
#92154A
BOLT,SOCKET,6X12
$1.71¢857
#92154B
BOLT,SOCKET,6X10
$1.14¢569
#92154
BOLT,SOCKET,6X10
$1.55¢776
#92171A
CLAMP,L=60
$2.22¢1 110
#92171B
CLAMP
$7.93¢3 968
#92171
CLAMP,BRAKE HOSE
$3.51¢1 754
#92172A
SCREW,5X10
$1.24¢621
#92173A
CLAMP
$2.53¢1 265
#92173B
CLAMP,CABLE CLIP
$1.49¢747
#92173
CLAMP,12MM DIA.
$4.61¢2 306
#92173C
CLAMP,CLIP,TAIL LAMP,ETC
$1.43¢713
