IGNITION SWITCH LOCKS REFLECTORS

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

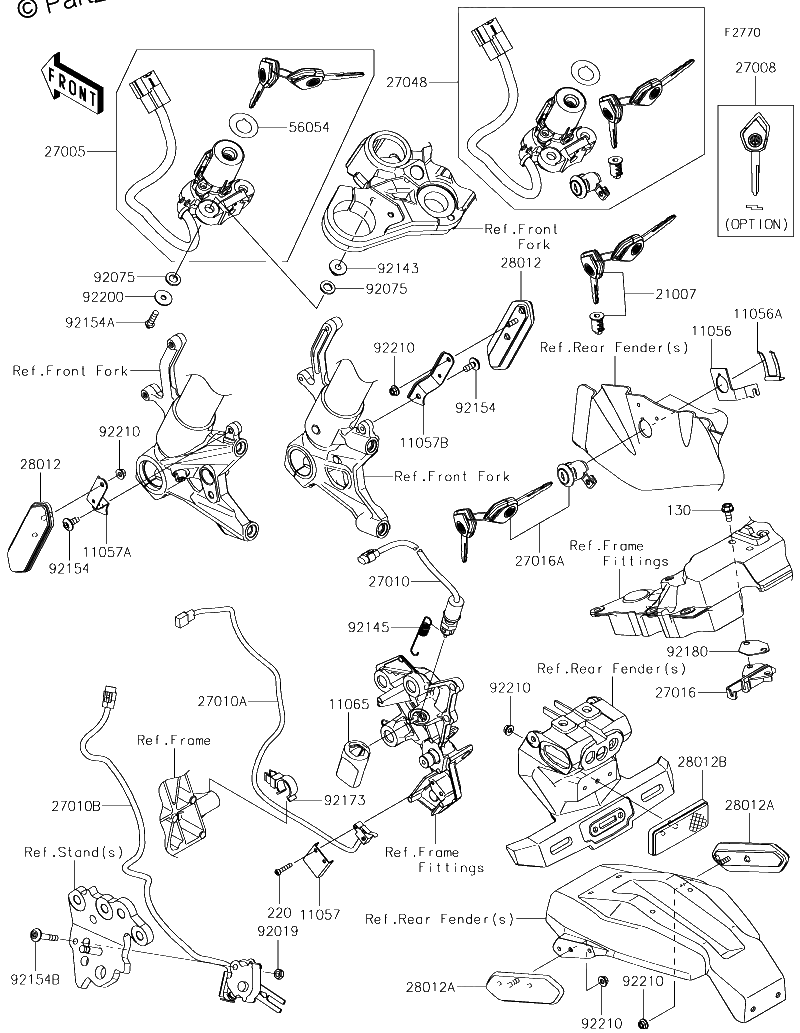

Diagrama de IGNITION SWITCH LOCKS REFLECTORS

Repuestos

#130
130BB0614
BOLT FLANGED,6X14
$2.12¢1 058
1
#220
220AA0420
SCREW-PAN-CROS,4X20
$2.36¢1 179
1
#11056
11056-0237
BRACKET
$4.02¢2 012
1
#11056A
11056-0238
BRACKET,CLASP
$5.43¢2 714
1
#11057
11057-1285
BRACKET
$4.57¢2 283
1
#11057B
11057-1301
BRACKET,REFLECTOR,RH
$5.99¢2 996
1
#11057A
11057-1300
BRACKET,REFLECTOR,LH
$5.99¢2 996
1
#11065
11065-0381
CAP,RR BRAKE SWITCH
$12.49¢6 244
1
#21007
21007-5079
ROTOR,LOCK,TANK CAP
$107.77¢53 883
1
#27005
27005-0641
SWITCH-ASSY-IGNITION
$513.87¢256 933
1
#27008
27008-0590
KEY LOCK,BLANK
$90.10¢45 051
1
#27010
27010-0836
SWITCH,STOP
$39.10¢19 550
1
#27010B
27010-0872
SWITCH,SIDE STAND
$96.78¢48 392
1
#27010A
27010-0865
SWITCH,REAR BRAKE
$85.81¢42 907
1
#27016
27016-1115
LOCK Assembly,SEAT STRIKER
$31.60¢15 801
1
#27016A
27016-5389
LOCK-ASSY,SEAT
$106.82¢53 412
1
#27048
27048-5148
SWITCH-ASSY
$850.72¢425 362
1
#28012B
28012-1077
REFLECTOR-REFLEX
$23.44¢11 718
1
#28012A
28012-0043
REFLECTOR-REFLEX,RED
$16.81¢8 407
1
#28012
28012-0042
REFLECTOR-REFLEX
$16.81¢8 407
1
#56054
56054-1596
MARK,IGNITION
$10.63¢5 313
1
#92019
92019-008
NUT,LOCK,6MM
$3.74¢1 869
1
#92075
92075-1564
DAMPER
$4.98¢2 490
1
#92143
92143-1016
COLLAR,L=9.6
$5.60¢2 800
1
#92145
92145-1794
SPRING
$5.93¢2 967
1
#92154B
92154-2834
BOLT,SOCKET,6X34
$2.61¢1 305
1
#92154A
92154-1858
BOLT,TORX,6X22
$3.61¢1 805
1
#92154
92154-0745
BOLT,SOCKET,6X14
$1.99¢995
1
#92173
92173-1227
CLAMP,PRELOAD ADJUSTER
$4.23¢2 116
1
#92180
92180-1542
SHIM
$3.91¢1 955
1
#92200
92200-0212
WASHER,6X20X1.6
$2.77¢1 386
1
#92210
92210-0007
NUT,FLANGED,5MM
$2.28¢1 138
1
