MUFFLER S

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

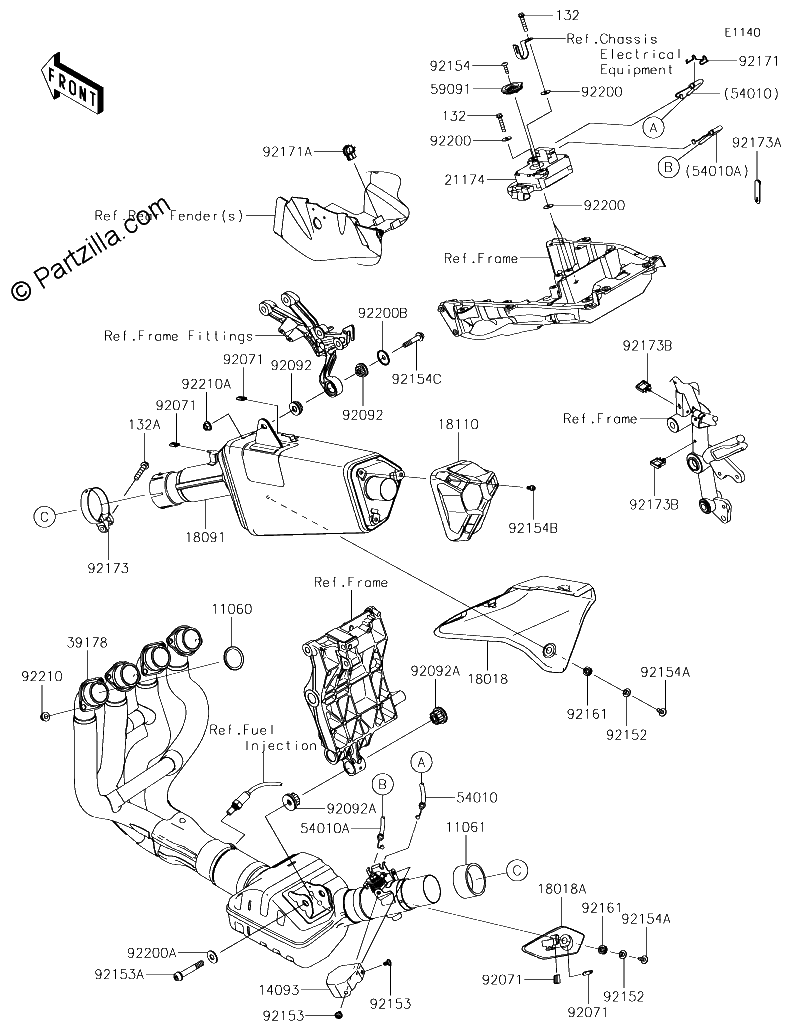

Diagrama de MUFFLER S

Repuestos

#132
132BA0630
BOLT-FLANGED-SMALL,6X30
$2.24¢1 121
1
#132A
132BC0840
BOLT FLANGED SMALL,8X40
$3.38¢1 691
1
#11060
11060-1203
GASKET,EXHAUST PIPE
$9.84¢4 922
1
#11061
11061-0980
GASKET,MUFFLER JOINT
$32.97¢16 485
1
#14093
14093-0643
COVER
$49.61¢24 806
1
#18018
18018-0606
PLATE-HEAT GUARD,RR
$422.43¢211 215
1
#18018A
18018-0614
PLATE-HEAT GUARD,FR
$173.58¢86 791
1
#18091
18091-1151
BODY-COMP-MUFFLER
$3067.05¢1 533 525
1
#18110
18110-0201
BODY END-MUFFLER
$196.06¢98 032
1
#21174
21174-0009
MOTOR ELECTRIC
$396.44¢198 220
1
#39178
39178-0311
MANIFOLD-COMP-EXHAUST
$2978.28¢1 489 141
1
#54010
54010-0622
CABLE,OPEN
$151.39¢75 693
1
#54010A
54010-0623
CABLE,CLOSE
$148.10¢74 048
1
#59091
59091-0007
PULLEY
$22.49¢11 247
1
#92071
92071-1270
GROMMET
$7.68¢3 841
1
#92092
92092-0018
BUSHING RUBBER
$10.52¢5 261
1
#92092A
92092-1081
BUSHING RUBBER
$24.13¢12 064
1
#92152
92152-2461
COLLAR
$5.37¢2 685
1
#92153A
92153-1837
BOLT,SOCKET,10X60
$12.39¢6 193
1
#92153
92153-1527
BOLT,SOCKET,6X10
$1.64¢822
1
#92154B
92154-1453
BOLT,SOCKET,6X12
$1.18¢592
1
#92154C
92154-2808
BOLT,SOCKET,8X40
$17.96¢8 981
1
#92154A
92154-0907
BOLT,SOCKET,6X14
$1.72¢862
1
#92154
92154-0217
BOLT,TORX,5X18
$3.52¢1 759
1
#92161
92161-0306
DAMPER
$5.12¢2 559
1
#92171A
92171-1722
CLAMP,EDGE CLIP
$8.51¢4 255
1
#92171
92171-0292
CLAMP
$10.51¢5 256
1
#92173B
92173-1513
CLAMP
$3.54¢1 771
1
#92173A
92173-1229
CLAMP,RUBBER PLATE
$3.83¢1 915
1
#92173
92173-0284
CLAMP,64.5MM
$36.40¢18 199
1
#92200A
92200-1377
WASHER,10.5X25X2.0
$3.83¢1 915
1
#92200B
92200-1919
WASHER
$4.40¢2 202
1
#92200
92200-0078
WASHER
$1.84¢920
1
#92210
92210-0076
NUT,8MM
$4.98¢2 490
1
#92210A
92210-0121
NUT,8MM
$1.94¢972
1
