IGNITION SWITCH LOCKS REFLECTORS

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

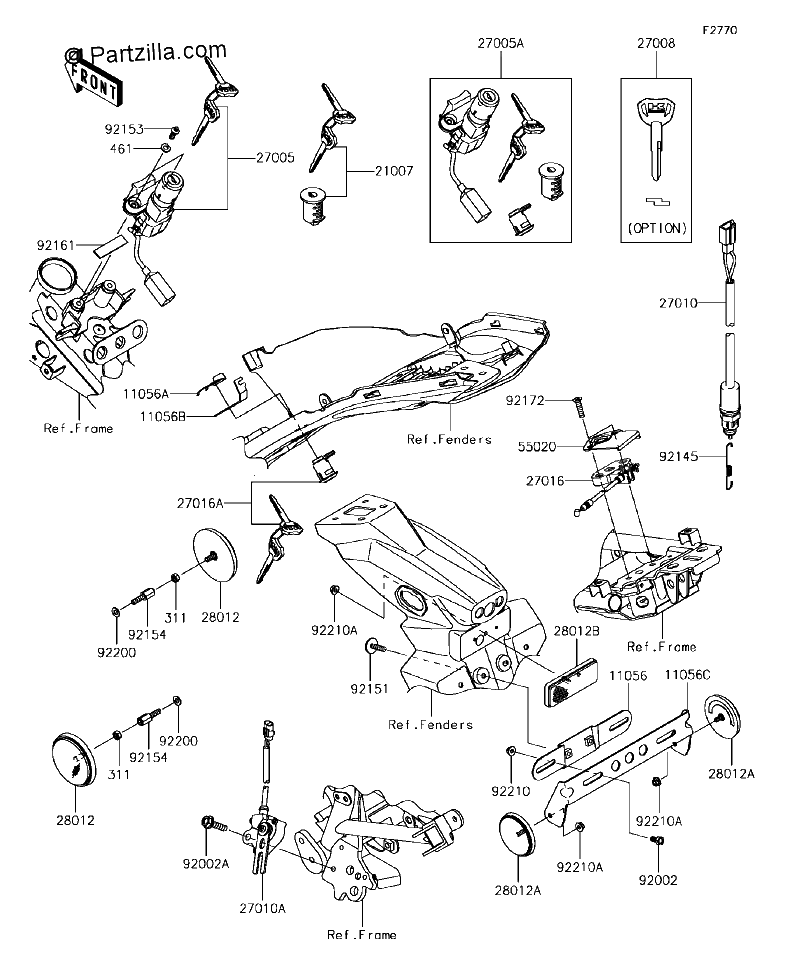

Diagrama de IGNITION SWITCH LOCKS REFLECTORS

Repuestos

#311
311AB0500
NUT HEX,5MM
$0.60¢300
1
#461
461DA0600
WASHER SPRING,6MM
$0.85¢425
1
#11056
11056-0139
BRACKET,LICENSE PLATE
$21.79¢10 894
1
#11056A
11056-0238
BRACKET,CLASP
$5.90¢2 950
1
#11056C
11056-7906
BRACKET
$40.58¢20 288
1
#11056B
11056-2119
BRACKET,SEAT LOCK
$4.60¢2 300
1
#21007
21007-5081
ROTOR
$101.66¢50 831
1
#27005A
27005-5158
SWITCH-ASSY-IGNITION
$308.55¢154 275
1
#27005
27005-0612
SWITCH-ASSY-IGNITION
$178.79¢89 394
1
#27008
27008-0559
KEY LOCK,BLANK
$23.69¢11 844
1
#27010A
27010-0829
SWITCH,SIDE STAND
$149.80¢74 900
1
#27010
27010-0828
SWITCH,RR BRAKE
$43.83¢21 913
1
#27016A
27016-5393
LOCK-ASSY
$82.74¢41 369
1
#27016
27016-0081
LOCK-ASSY,SEAT STRIKER
$53.69¢26 844
1
#28012B
28012-1077
REFLECTOR-REFLEX
$25.47¢12 737
1
#28012A
28012-0002
REFLECTOR REFLEX
$25.51¢12 756
1
#28012
28012-0001
REFLECTOR-REFLEX,FR,SIDE
$25.51¢12 756
1
#55020
55020-0554
GUARD,SEAT LOCK
$18.21¢9 106
1
#92002A
92002-1582
BOLT,FLANGED,6X25
$4.88¢2 438
1
#92002
92002-1132
BOLT,6X12
$1.49¢744
1
#92145
92145-1723
SPRING
$1.29¢644
1
#92151
92151-1241
BOLT,6X25
$4.96¢2 481
1
#92153
92153-0967
BOLT,TORX,6X16
$2.41¢1 206
1
#92154
92154-2193
BOLT,6X20
$10.51¢5 256
1
#92161
92161-1359
DAMPER
$1.29¢644
1
#92172
92172-0965
SCREW,6X25
$0.59¢294
1
#92200
92200-0796
WASHER,6.5X16X1.0
$0.95¢475
1
#92210
92210-1514
NUT,FLANGED,6MM
$4.21¢2 106
1
#92210A
92210-1607
NUT,FLANGED,5MM
$3.85¢1 925
1
