CHASSIS ELECTRICAL EQUIPMENT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

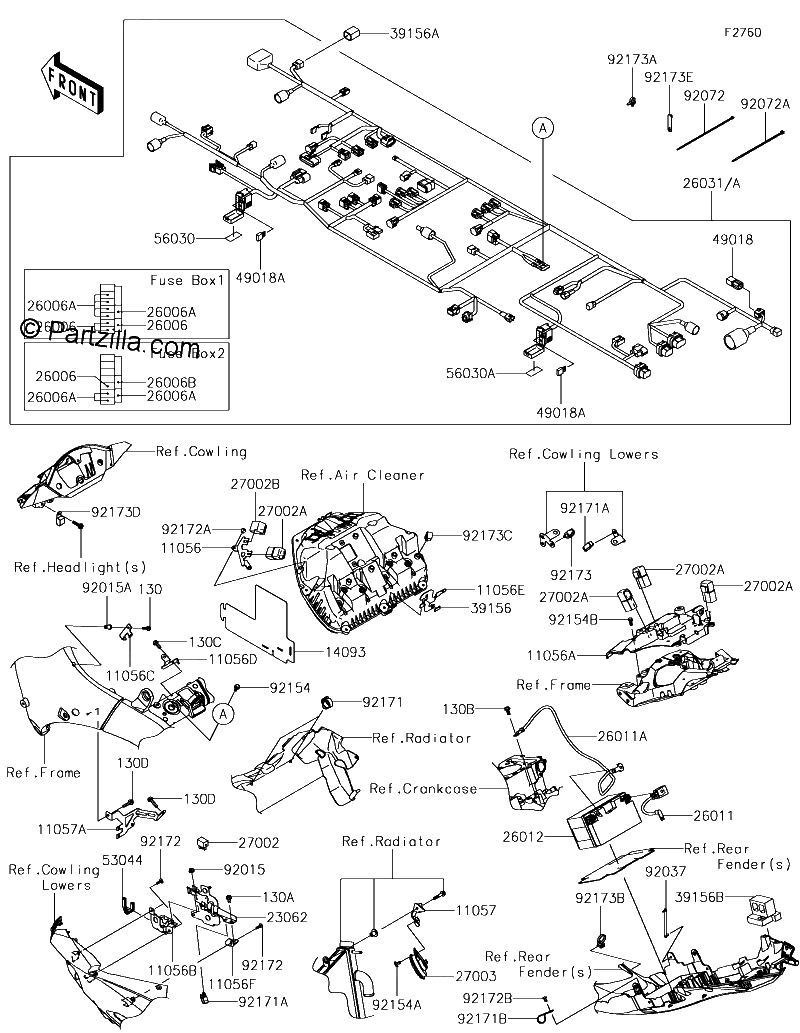

Diagrama de CHASSIS ELECTRICAL EQUIPMENT

Repuestos

#130
130BA0518
BOLT-FLANGED,5X18
$1.40¢701
1
#130C
130BA0616
BOLT FLANGED,6X16
$1.16¢581
1
#130A
130BA0612
BOLT-FLANGED,6X12 | [CA]
$1.51¢753
1
#130B
130BA0614
BOLT FLANGED,6X14
$1.16¢581
1
#130D
130BA0625
BOLT FLANGED,6X25
$1.16¢581
1
#11056
11056-7706
BRACKET,RELAY
$5.15¢2 576
1
#11056A
11056-7717
BRACKET,ECU
$52.92¢26 462
1
#11056B
11056-7809
BRACKET,FUSE
$13.11¢6 555
1
#11056C
11056-7828
BRACKET,FRAME,Left Hand
$5.37¢2 685
1
#11056D
11056-7829
BRACKET,CROSS FRAME
$5.86¢2 932
1
#11056E
11056-7955
BRACKET,HARNESS
$7.80¢3 899
1
#11056F
11056-7959
BRACKET,CONNECTOR,Rear
$5.32¢2 662
1
#11057
11057-0017
BRACKET,HORN
$21.10¢10 551
1
#11057A
11057-0068
BRACKET,SHIFTERGEAR POSITION
$11.12¢5 560
1
#14093
14093-0476
COVER,RELAY
$35.71¢17 854
1
#23062
23062-0873
BRACKET COMP,CONNECTOR
$43.83¢21 913
1
#26006
26006-0001
FUSE,MINI BLADE,15A,BLUE
$5.75¢2 875
1
#26006A
26006-1078
FUSE,MINI BLADE,10A,RED
$4.02¢2 012
1
#26006B
26006-1080
FUSE,MINI BLADE,30A,GREEN
$4.66¢2 329
1
#26011
26011-0921
WIRE-LEAD,BATTERY(+)
$33.32¢16 658
1
#26011A
26011-0943
WIRE LEAD,BATTERY( )
$51.53¢25 766
1
#26012
26012-0564
BATTERY,YTZ10S,12V 8.6AH
No Disponible
1
#26031
26031-2114
HARNESS,MAIN | [CN]
No Disponible
1
#26031A
26031-2116
HARNESS,MAIN | [CA]
$1874.89¢937 445
1
#27002
27002-0027
RELAY-ASSY,HEAD LAMP
$44.62¢22 310
1
#27002B
27002-1097
RELAY Assembly,SIGNAL LAMP
$52.43¢26 214
1
#27002A
27002-1086
RELAY Assembly
$38.66¢19 332
1
#27003
27003-0113
HORN
$92.95¢46 477
1
#39156B
39156-1993
PAD,DIAG/DONGLE
$40.56¢20 280
1
#39156A
39156-1886
PAD,DIAG. CONNECTOR
$1.93¢966
1
#39156
39156-0389
PAD,HEAT GUARD
$1.93¢966
1
#49018A
49018-0007
DIODE
$52.34¢26 168
1
#49018
49018-0005
DIODE
$49.37¢24 685
1
#53044
53044-0018
TRIM
$4.45¢2 225
1
#56030A
56030-0957
LABEL,FUSE2
$3.78¢1 892
1
#56030
56030-0955
LABEL,FUSE1
$4.22¢2 110
1
#92015A
92015-1757
NUT,WELL,5MM
$6.68¢3 341
1
#92015
92015-1367
NUT,FLANGED,6MM
$3.02¢1 512
1
#92037
92037-1903
CLAMP,SPEED,L=80.5
$7.18¢3 588
1
#92072A
92072-3768
BAND,L=148
$3.59¢1 794
1
#92072
92072-0782
BAND,202X3.6
$1.81¢903
1
#92154A
92154-0774
BOLT,SOCKET,6X10
$1.55¢776
1
#92154B
92154-1864
BOLT,FLANGED,6X14
$1.87¢937
1
#92154
92154-0551
BOLT,FLANGED,6X16
$1.55¢776
1
#92171A
92171-0316
CLAMP,BRAKE HOSE
$3.51¢1 754
1
#92171B
92171-1279
CLAMP
$9.63¢4 813
1
#92171
92171-0068
CLAMP,CLIP,DIA=20
$2.46¢1 231
1
#92172A
92172-0262
SCREW,TAPPING,5X10
$1.24¢621
1
#92172B
92172-0335
SCREW,TAPPING,5X10
$1.87¢937
1
#92172
92172-0175
SCREW,TAPPING,5X16
$1.59¢793
1
#92173A
92173-0742
CLAMP
$8.38¢4 192
1
#92173B
92173-0791
CLAMP
$11.56¢5 779
1
#92173C
92173-0861
CLAMP
$2.53¢1 265
1
#92173D
92173-1009
CLAMP,68MM
$4.30¢2 151
1
#92173
92173-0736
CLAMP,12MM DIA.
$4.61¢2 306
1
#92173E
92173-1229
CLAMP,RUBBER PLATE
$3.83¢1 915
1
