CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

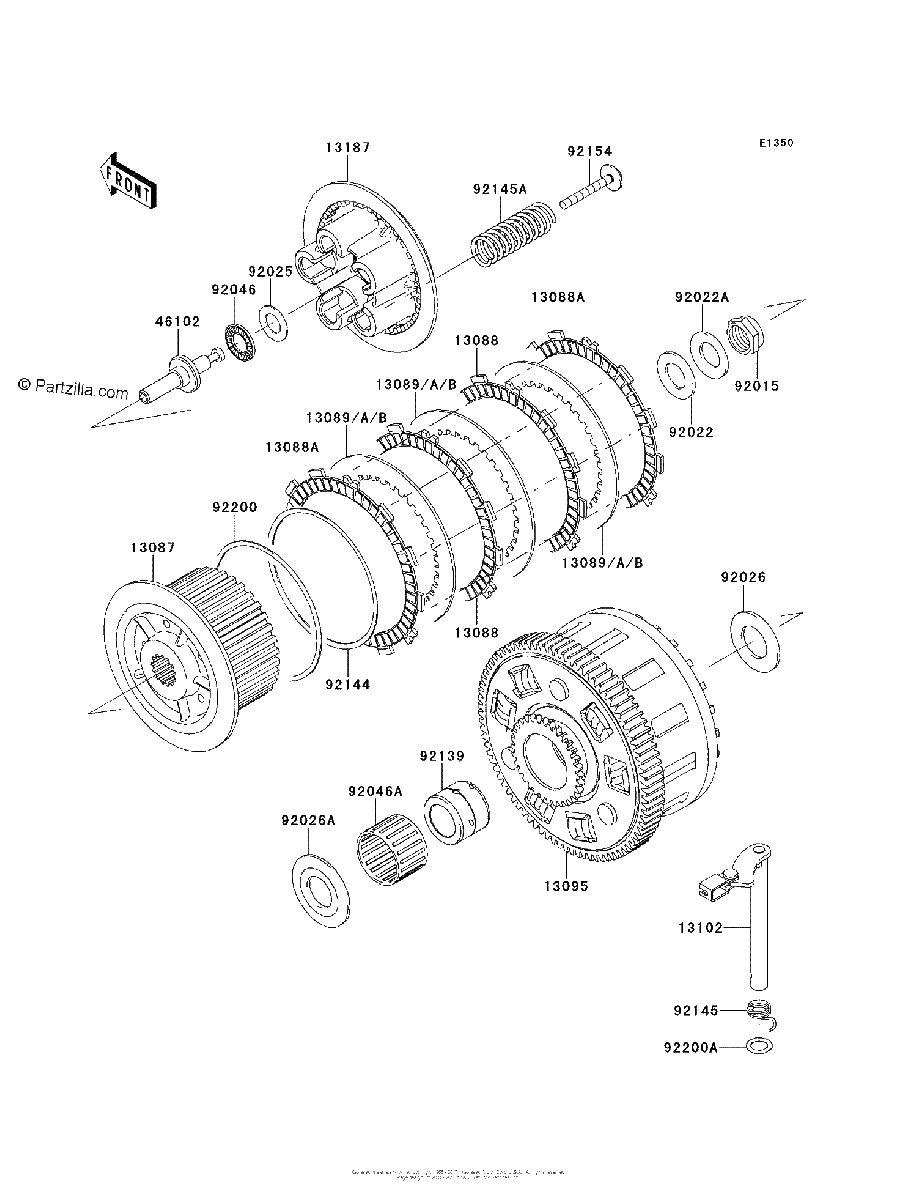

Diagrama de CLUTCH

Repuestos

#13087
13087-0051
HUB CLUTCH
$175.08¢87 538
1
#13088
13088-0049
PLATE-FRICTION
$20.16¢10 080
1
#13088A
13088-0052
PLATE-FRICTION
$20.16¢10 080
1
#13089
13089-0008
PLATE-CLUTCH,T=2.3
$11.49¢5 744
1
#13089
13089-0009
PLATE CLUTCH,T=2.6
$11.72¢5 859
1
#13089
13089-1093
PLATE-CLUTCH,T=2.9
$11.30¢5 652
1
#13089B
13089-1093
PLATE-CLUTCH,T=2.9
$11.30¢5 652
1
#13089A
13089-0009
PLATE CLUTCH,T=2.6
$11.72¢5 859
1
#13095
13095-0118
HOUSING COMP CLUTCH
$607.31¢303 657
1
#13102
13102-0038
RELEASE-COMP-CLUTCH
$66.42¢33 212
1
#13187
13187-0019
PLATE-CLUTCH OPERATING
$52.41¢26 203
1
#46102
46102-0083
ROD
$58.26¢29 129
1
#92015
92015-1555
NUT,20MM
$11.93¢5 963
1
#92022
92022-1116
WASHER,20.3X36X2.3
$7.84¢3 922
1
#92022A
92022-1868
WASHER,20.3X36X3.7
$8.68¢4 341
1
#92025
92025-1137
SHIM,15.3X27.5X1.20
$7.84¢3 922
1
#92026A
92026-1497
SPACER
$11.66¢5 831
1
#92026
92026-022
SPACER,25.5X47X2.5
$10.32¢5 158
1
#92046A
92046-1263
BEARING NEEDLE,K38X43X28.8X
$30.42¢15 209
1
#92046
92046-1052
BEARING-NEEDLE,AXK1102
$13.17¢6 584
1
#92139
92139-0067
BUSHING,25X38X29.05
$38.82¢19 412
1
#92144
92144-1854
SPRING,FRICTION PLATE
$8.13¢4 065
1
#92145A
92145-0736
SPRING
$6.76¢3 381
1
#92145
92145-0325
SPRING,RELEASE-COMP
$3.54¢1 771
1
#92154
92154-0352
BOLT,CLUTCH OPERATING
$5.36¢2 680
1
#92200
92200-1260
WASHER,FRICTION PLATE
$9.38¢4 692
1
#92200A
92200-1487
WASHER,12X18.5X0.5
$2.33¢1 167
1
