FRONT FORK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

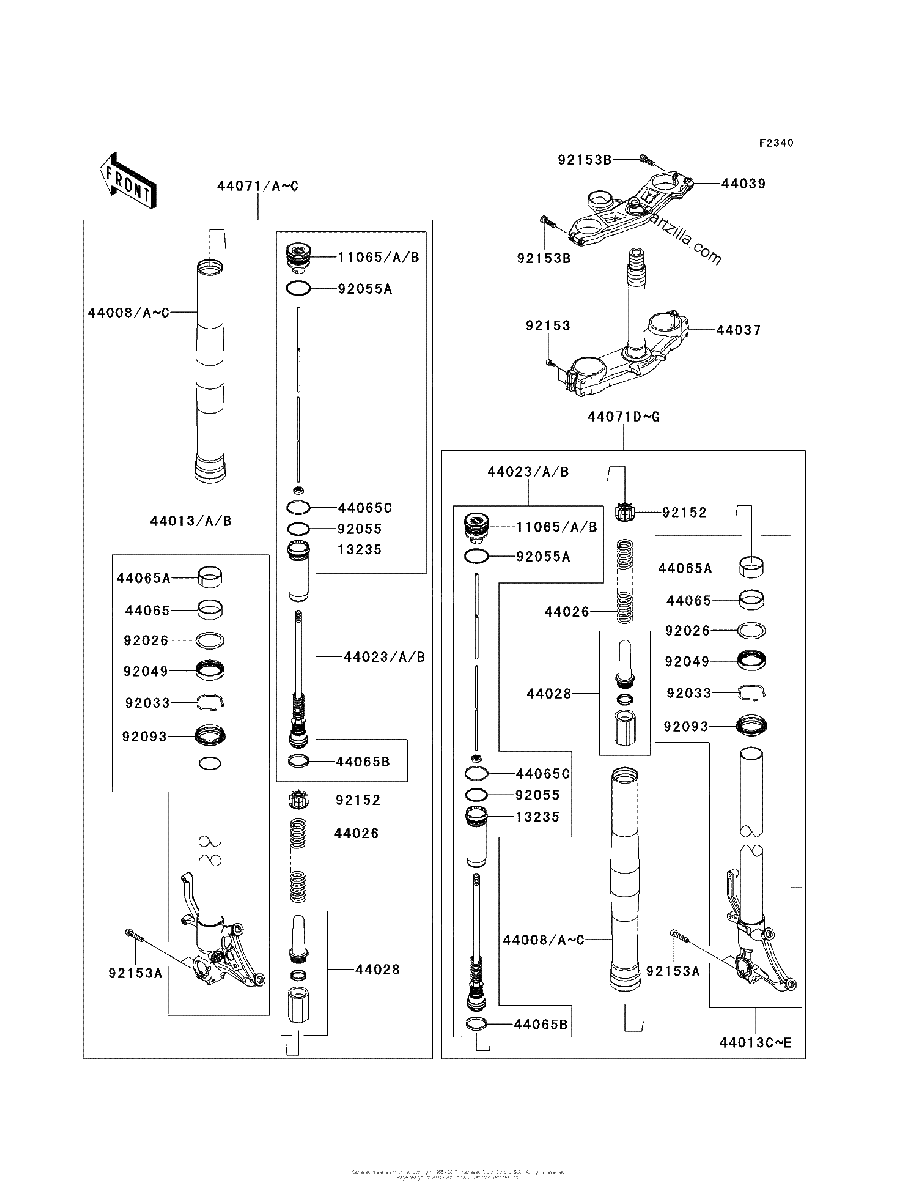

Diagrama de FRONT FORK

Repuestos

#11065
11065-0379-10B
CAP,FORK BOLT COMP,P RED
$129.71¢64 854
1
#11065
11065-0379-11G
CAP,FORK BOLT COMP,GRAY
$145.38¢72 691
1
#11065
11065-0379-39B
CAP,FORK BOLT COMP,BROWN
$148.07¢74 037
1
#11065B
11065-0379-39B
CAP,FORK BOLT COMP,BROWN
$148.07¢74 037
1
#13235
13235-0006
GUIDE COMP
$136.41¢68 206
1
#44008
44008-0054-499
PIPE FORK OUTER,A BLACK
$514.02¢257 008
1
#44008
44008-0054-484
PIPE FORK OUTER,R GOLD
$514.02¢257 008
1
#44008
44008-0054-39B
PIPE FORK OUTER,BROWN
$523.53¢261 763
1
#44008
44008-0054-11G
PIPE FORK OUTER,GRAY
$514.02¢257 008
1
#44008A
44008-0054-39B
PIPE FORK OUTER,BROWN
$523.53¢261 763
1
#44013
44013-0162-39B
PIPE FORK INNER,Left Hand,BROWN
$652.43¢326 215
1
#44013
44013-0162-11G
PIPE FORK INNER,Left Hand,GRAY
$640.66¢320 333
1
#44013
44013-0162-10B
PIPE FORK INNER,Left Hand,P RED
No Disponible
1
#44013B
44013-0162-39B
PIPE FORK INNER,Left Hand,BROWN
$652.43¢326 215
1
#44013C
44013-0163-10B
PIPE FORK INNER,Right Hand,P RED
No Disponible
1
#44013C
44013-0163-11G
PIPE FORK INNER,Right Hand,GRAY
$640.66¢320 333
1
#44013E
44013-0163-39B
PIPE FORK INNER,Right Hand,BROWN
$652.43¢326 215
1
#44013C
44013-0163-39B
PIPE FORK INNER,Right Hand,BROWN
$652.43¢326 215
1
#44023
44023-0092-39B
CYLINDER SET FORK,BROWN
$580.31¢290 157
1
#44023
44023-0092-11G
CYLINDER SET FORK,GRAY
$566.78¢283 389
1
#44023
44023-0092-10B
CYLINDER SET FORK,P RED
$566.78¢283 389
1
#44023B
44023-0092-39B
CYLINDER SET FORK,BROWN
$580.31¢290 157
1
#44026
44026-0154
SPRING FRONT FORK
$82.03¢41 015
1
#44028
44028-0005
GUIDE-FORK SPRING
$74.42¢37 208
1
#44037
44037-0114
HOLDER FORK UNDER
$640.06¢320 028
1
#44039
44039-0104-499
HOLDER FORK UPPER,A BLACK
$244.39¢122 193
1
#44065B
44065-0039
BUSHING FRONT FORK
$6.15¢3 076
1
#44065C
44065-0040
BUSHING-FRONT FORK
$19.29¢9 643
1
#44065A
44065-0038
BUSHING FRONT FORK,SLIDE
$8.80¢4 399
1
#44065
44065-0026
BUSHING FRONT FORK
$24.77¢12 385
1
#44071D
44071-0700-39U
DAMPER Assembly,FORK,Right Hand,GOLD
$1550.99¢775 497
1
#44071A
44071-0699-30X
DAMPER Assembly,FORK,Left Hand,BRONZE
$1579.81¢789 906
1
#44071D
44071-0700-30W
DAMPER Assembly,FORK,Right Hand,GRAY
$1550.99¢775 497
1
#44071E
44071-0700-30X
DAMPER Assembly,FORK,Right Hand,BRONZE
$1579.81¢789 906
1
#44071D
44071-0700-30X
DAMPER Assembly,FORK,Right Hand,BRONZE
$1579.81¢789 906
1
#44071D
44071-0700-48L
DAMPER Assembly,FORK,Right Hand,Black/GRY/GR
$1550.99¢775 497
1
#44071
44071-0699-48L
DAMPER Assembly,FORK,Left Hand,Black/GRY/GR
$1550.99¢775 497
1
#44071
44071-0699-39U
DAMPER Assembly,FORK,Left Hand,GOLD
$1550.99¢775 497
1
#44071
44071-0699-30X
DAMPER Assembly,FORK,Left Hand,BRONZE
$1579.81¢789 906
1
#44071
44071-0699-30W
DAMPER Assembly,FORK,Left Hand,GRAY
$1550.99¢775 497
1
#92026
92026-0165
SPACER
$3.45¢1 725
1
#92033
92033-1222
RING-SNAP
$5.85¢2 927
1
#92049
92049-0064
SEAL-OIL
$24.49¢12 247
1
#92055A
92055-1497
RING-O,FORK CAP
$5.36¢2 680
1
#92055
92055-0215
RING-O
$4.84¢2 421
1
#92093
92093-0042
SEAL,DUST
$24.29¢12 144
1
#92152
92152-0930
COLLAR
$11.01¢5 503
1
#92153A
92153-0854
BOLT,SOCKET,8X35
$7.16¢3 582
1
#92153
92153-0853
BOLT
$7.16¢3 582
1
#92153B
92153-1625
BOLT,SOCKET,8X25
$4.24¢2 122
1
