TAILLIGHT S

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

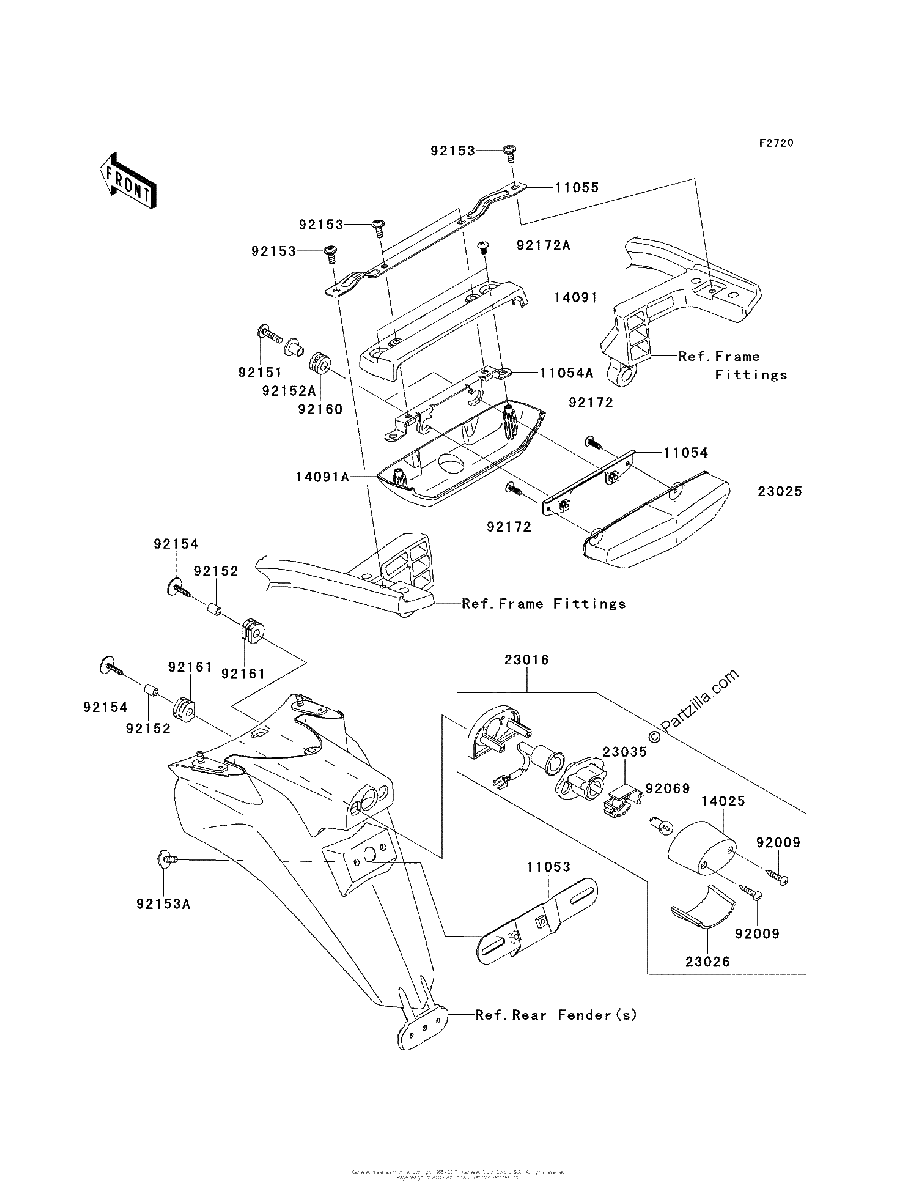

Diagrama de TAILLIGHT S

Repuestos

#11053
11053-0400
BRACKET,LICENSE
$15.04¢7 521
1
#11054
11054-0883
BRACKET,TAIL LAMP
$9.11¢4 554
1
#11054A
11054-1199
BRACKET
$33.94¢16 968
1
#11055
11055-0323
BRACKET,TAIL LAMP COVER
$17.16¢8 579
1
#14025
14025-1725
COVER,LICENSE LAMP
$18.53¢9 263
1
#14091
14091-0894
COVER,TAIL LAMP,UPP
$13.29¢6 647
1
#14091A
14091-0895
COVER,TAIL LAMP,Lower
$18.58¢9 292
1
#23016
23016-1200
LAMP-ASSY,LICENSE
No Disponible
1
#23025
23025-0035
LAMP TAIL
$330.67¢165 336
1
#23026
23026-1064
LENS,LICENSE LAMP
$26.39¢13 196
1
#23035
23035-1066
REFLECTOR-LAMP,LICENSE
$19.30¢9 649
1
#92009
92009-1378
SCREW,TAPPING,4X20
$3.75¢1 874
1
#92069
92069-1055
BULB,12V 5W
$4.74¢2 369
1
#92151
92151-1611
BOLT,SOCKET,6X25
$2.01¢1 006
1
#92152A
92152-0666
COLLAR
$6.06¢3 030
1
#92152
92152-0372
COLLAR,6X9X11.5
$2.32¢1 162
1
#92153A
92153-1423
BOLT,6X16
$1.24¢621
1
#92153
92153-0817
BOLT,SOCKET,6X16
$1.87¢937
1
#92154
92154-0261
BOLT,TAPPING,WASHER,5X25
$3.39¢1 696
1
#92160
92160-1167
DAMPER,10X20X12
$4.28¢2 139
1
#92161
92161-0776
DAMPER
$5.01¢2 507
1
#92172
92172-0175
SCREW,TAPPING,5X16
$1.59¢793
1
#92172A
92172-1061
SCREW,TAPPING,5X10
No Disponible
1
