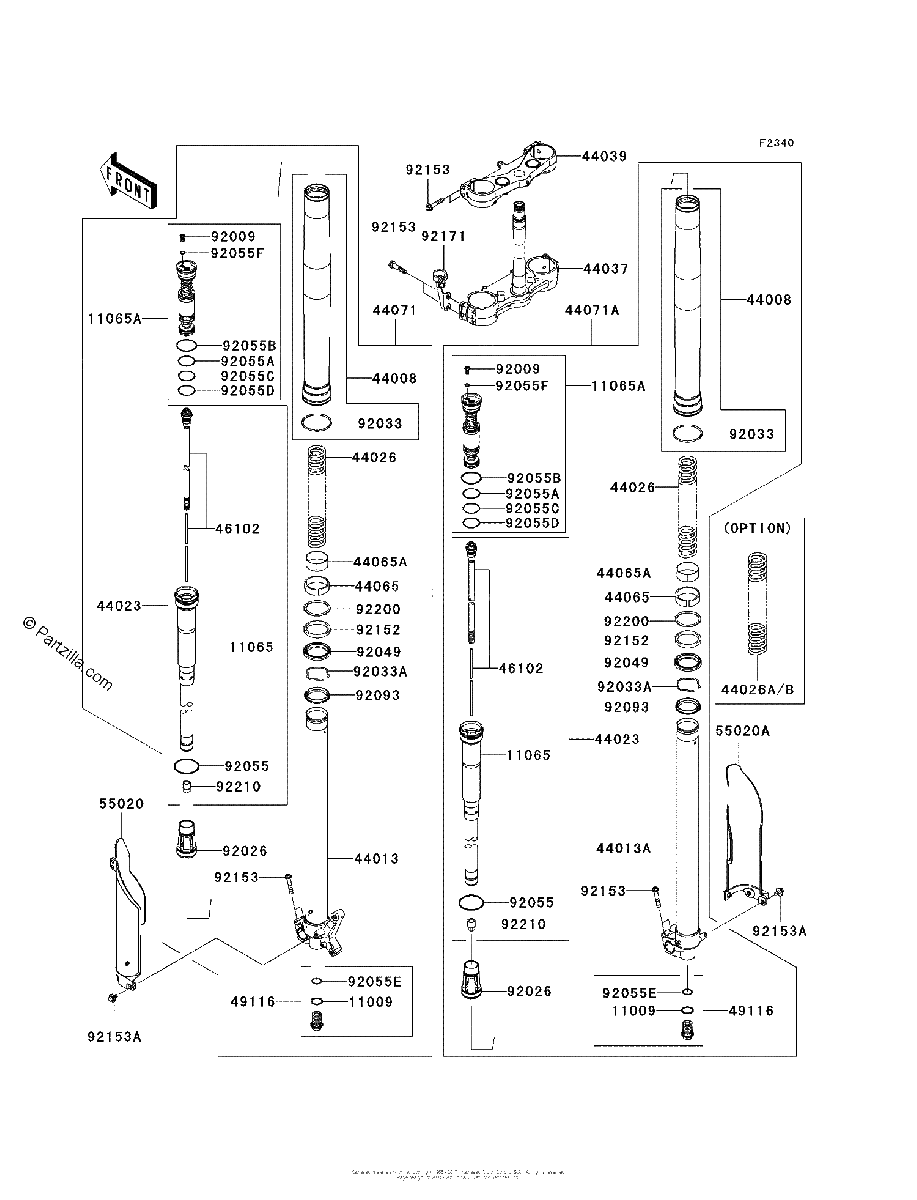

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#11009
GASKET,FORK CYLINDER BOLT
$6.04¢3 019
#11065
CAP,CYLINDER COMP
$327.04¢163 519
#11065A
CAP,BASE VALVE,BLUE
$327.04¢163 519
#44008
PIPE FORK OUTER
$813.50¢406 750
#44013
PIPE-FORK INNER,LH
$814.49¢407 244
#44013A
PIPE-FORK INNER,RH
$814.49¢407 244
#44023
CYLINDER-SET-FORK
$769.26¢384 631
#44026B
SPRING FRONT FORK,K=4.8N/MM
$113.81¢56 906
#44026
SPRING-FRONT FORK,K=4.7N/MM
$113.81¢56 906
#44026A
SPRING FRONT FORK,K=4.6N/MM
$113.81¢56 906
#44026A
SPRING FRONT FORK,K=4.8N/MM
$113.81¢56 906
#44037
HOLDER FORK UNDER,F BLACK
$768.91¢384 456
#44039
HOLDER FORK UPPER,F BLACK
$337.13¢168 563
#44065
BUSHING-FRONT FORK
$23.59¢11 794
#44065A
BUSHING-FRONT FORK
$24.64¢12 319
#44071
DAMPER Assembly,FORK,Left Hand
$2161.11¢1 080 556
#44071A
DAMPER-ASSY,FORK,RH
$2161.11¢1 080 556
#46102
ROD,PISTON
$552.75¢276 375
#49116
VALVE-ASSY
$252.13¢126 063
#55020A
GUARD,FORK,Right Hand,EBONY
$70.04¢35 019
#55020
GUARD,FORK,Left Hand,EBONY
$70.04¢35 019
#92009
SCREW
$7.66¢3 831
#92026
SPACER
$53.21¢26 606
#92033
RING SNAP
$4.80¢2 400
#92033A
RING SNAP
$6.71¢3 356
#92049
SEAL OIL
$27.63¢13 813
#92055D
RING O
$5.79¢2 894
#92055
RING O
$5.79¢2 894
#92055A
RING-O
$5.79¢2 894
#92055B
RING O
$5.79¢2 894
#92055C
RING O
$5.79¢2 894
#92055E
RING O
$1.41¢706
#92055F
RING O,2.8X6.6X1.9
$4.31¢2 156
#92093
SEAL,FORK OUTER TUBE
$21.88¢10 938
#92152
COLLAR
$8.38¢4 188
#92153
BOLT,8X40
$5.53¢2 763
#92153A
BOLT,FLANGED,6X14
$2.73¢1 363
#92171
CLAMP,BRAKE HOSE
$19.33¢9 663
#92200
WASHER
$5.46¢2 731
#92210
NUT
$25.21¢12 606
