FRONT FORK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

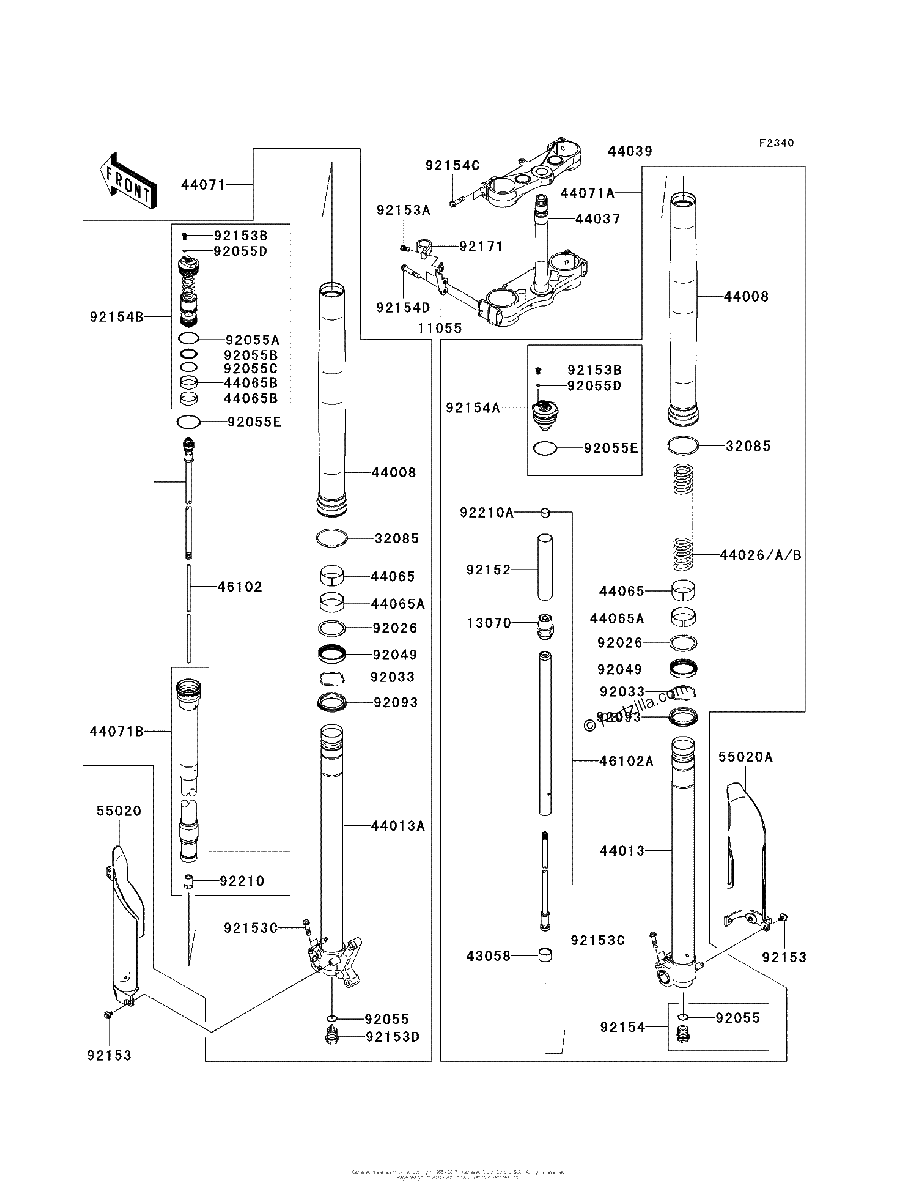

Diagrama de FRONT FORK

Repuestos

#11055
11055-1405
BRACKET,BRAKE HOSE
$15.38¢7 688
1
#13070
13070-0125
GUIDE
$69.05¢34 525
1
#32085
32085-0073
STOPPER,RING
$6.45¢3 225
1
#43058
43058-0037
RING
$12.63¢6 313
1
#44008
44008-0016
PIPE-FORK OUTER
$713.89¢356 944
1
#44013
44013-0164
PIPE FORK INNER
$782.17¢391 088
1
#44013A
44013-0165
PIPE-FORK INNER,LH
No Disponible
1
#44026
44026-0152
SPRING-FRONT FORK
$108.06¢54 031
1
#44026
44026-0156
SPRING-FRONT FORK,K=8.7N/MM | (OPTION)
$114.06¢57 031
1
#44026
44026-0157
SPRING-FRONT FORK,K=9.5N/MM | (OPTION)
$114.06¢57 031
1
#44026A
44026-0156
SPRING-FRONT FORK,K=8.7N/MM | (OPTION)
$114.06¢57 031
1
#44026B
44026-0157
SPRING-FRONT FORK,K=9.5N/MM | (OPTION)
$114.06¢57 031
1
#44037
44037-0113-21
HOLDER FORK UNDER,F BLACK
$770.79¢385 394
1
#44039
44039-0103-21
HOLDER FORK UPPER,F BLACK
$342.39¢171 194
1
#44065
44065-0027
BUSHING FRONT FORK,SLIDE
$21.66¢10 831
1
#44065B
44065-0029
BUSHING FRONT FORK,SLIDE
$9.59¢4 794
1
#44065A
44065-0028
BUSHING-FRONT FORK,GUIDE
$21.34¢10 669
1
#44071
44071-0695
DAMPER Assembly,FORK,Left Hand
$2112.39¢1 056 194
1
#44071A
44071-0696
DAMPER-ASSY,FORK,RH
$1770.85¢885 425
1
#44071B
44071-0708
DAMPER Assembly,FORK,Left Hand
$764.23¢382 113
1
#46102
46102-0107
ROD,PUSH
$27.29¢13 644
1
#46102A
46102-0153
ROD
$162.26¢81 131
1
#55020
55020-0441-6C
GUARD,FORK,Left Hand,EBONY
$70.04¢35 019
1
#55020A
55020-0442-6C
GUARD,FORK,Right Hand,EBONY
$70.04¢35 019
1
#92026
92026-0144
SPACER,SEAL
$14.96¢7 481
1
#92033
92033-0039
RING-SNAP
$6.13¢3 063
1
#92049
92049-0074
SEAL OIL
$23.82¢11 913
1
#92055D
92055-0094
RING O
$2.73¢1 363
1
#92055E
92055-0095
RING O
$5.41¢2 706
1
#92055B
92055-0092
RING O
$4.33¢2 163
1
#92055C
92055-0093
RING-O
$4.16¢2 081
1
#92055A
92055-0091
RING O
$4.33¢2 163
1
#92055
92055-0090
RING O,CENTER BOLT
$4.33¢2 163
1
#92093
92093-0059
SEAL,DUST
$17.65¢8 825
1
#92152
92152-0889
COLLAR
$22.84¢11 419
1
#92153C
92153-1399
BOLT,FLANGED,8X40
$4.84¢2 419
1
#92153A
92153-1397
BOLT,FLANGED
$4.11¢2 056
1
#92153B
92153-1398
BOLT,PLUG
$3.17¢1 588
1
#92153D
92153-1778
BOLT,CENTER
$59.96¢29 981
1
#92153
92153-0936
BOLT,FLANGED,6X14
$2.73¢1 363
1
#92154A
92154-0410-KW
BOLT,ADJ,BLUE
$208.72¢104 363
1
#92154B
92154-0411-KW
BOLT,FORK,COMP,BLUE
$303.20¢151 600
1
#92154C
92154-0463
BOLT
$4.60¢2 300
1
#92154D
92154-0464
BOLT
$3.75¢1 875
1
#92154
92154-0409
BOLT
$29.88¢14 938
1
#92171
92171-0506
CLAMP,BRAKE HOSE
$19.09¢9 544
1
#92210
92210-0430
NUT,LOCK
$15.18¢7 588
1
#92210A
92210-0619
NUT
$8.51¢4 256
1
