CHASSIS ELECTRICAL EQUIPMENT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

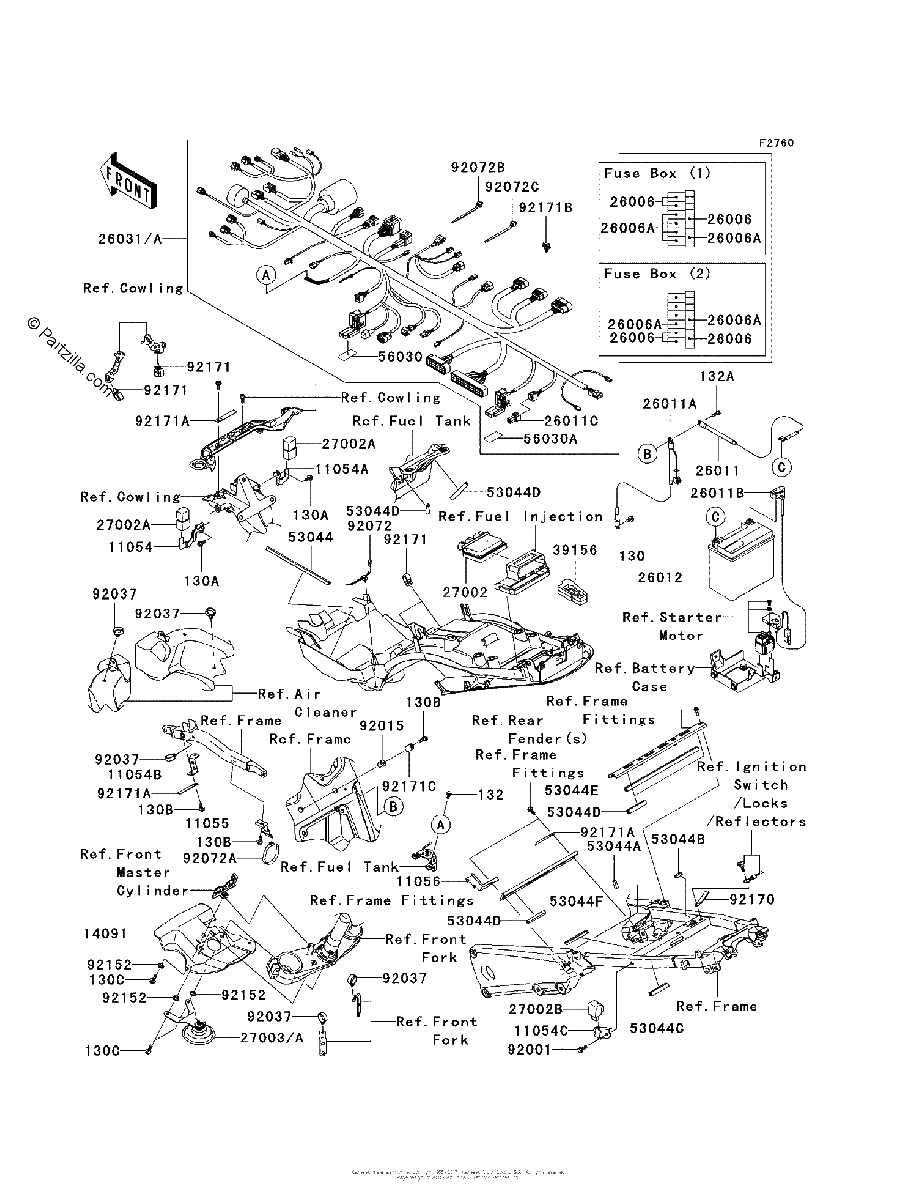

Diagrama de CHASSIS ELECTRICAL EQUIPMENT

Repuestos

#130
130BA0610
BOLT FLANGED,6X10
$1.26¢631
1
#130A
130BA0614
BOLT FLANGED,6X14
$1.26¢631
1
#130B
130BA0616
BOLT FLANGED,6X16
$1.26¢631
1
#130C
130BA0618
BOLT-FLANGED,6X18
$1.52¢763
1
#132
132BA0612
BOLT-FLANGED-SMALL,6X12
$1.26¢631
1
#132A
132BA0616
BOLT FLANGED SMALL,6X16
$1.51¢756
1
#11054
11054-0497
BRACKET,RELAY,Left Hand
$16.85¢8 425
1
#11054A
11054-0498
BRACKET,RELAY,RH
$16.85¢8 425
1
#11054B
11054-0551
BRACKET,HARNESS
$9.90¢4 950
1
#11054C
11054-0811
BRACKET,SIGNAL LAMP RELAY
$10.24¢5 119
1
#11055
11055-0411
BRACKET,HARNESS
$11.63¢5 813
1
#11056
11056-0040
BRACKET,HARNESS
$11.59¢5 794
1
#14091
14091-0624
COVER,RADIATOR
$49.56¢24 781
1
#26006
26006-0001
FUSE,MINI BLADE,15A,BLUE
$6.25¢3 125
1
#26006A
26006-1078
FUSE,MINI BLADE,10A,RED
$4.38¢2 188
1
#26011
26011-0087
WIRE LEAD,BATTERY( )
$35.34¢17 669
1
#26011A
26011-0093
WIRE-LEAD,BATTERY(-)
$39.26¢19 631
1
#26011B
26011-0120
WIRE LEAD,BATTERY(+)
$67.98¢33 988
1
#26011C
26011-0271
WIRE-LEAD,CAP
$16.38¢8 188
1
#26012
26012-1409
BATTERY,FTZ14 BS,12V 14AH
No Disponible
1
#26031
26031-0842
HARNESS,MAIN
$1311.07¢655 537
1
#26031
26031-1112
HARNESS,MAIN
$1242.08¢621 038
1
#26031A
26031-1112
HARNESS,MAIN
$1242.08¢621 038
1
#27002
27002-0007
RELAY-ASSY,BOX
No Disponible
1
#27002B
27002-1101
RELAY Assembly,TURN SIGNAL
$87.74¢43 869
1
#27002A
27002-1086
RELAY Assembly
$42.02¢21 013
1
#27003
27003-0069
HORN
$97.42¢48 713
1
#27003A
27003-0069
HORN
$97.42¢48 713
1
#27003
27003-0036
HORN
$103.35¢51 675
1
#39156
39156-0585
PAD,DIAG COUPLER
$13.17¢6 587
1
#53044A
53044-0025
TRIM,L=15
$3.17¢1 588
1
#53044B
53044-0031
TRIM,L=22
$3.17¢1 588
1
#53044C
53044-0032
TRIM,L=60
$8.69¢4 344
1
#53044D
53044-1249
TRIM,L=60
$6.69¢3 344
1
#53044E
53044-1265
TRIM,AIR DUCT COVER
$13.45¢6 725
1
#53044F
53044-1279
TRIM,L=75
$10.79¢5 394
1
#53044
53044-0022
TRIM,L=220
$15.16¢7 581
1
#56030A
56030-0112
LABEL,FUSE BOX
$4.29¢2 144
1
#56030
56030-0110
LABEL,FUSE BOX1
$4.09¢2 044
1
#92001
92001-1773
BOLT,6X20
$3.95¢1 975
1
#92015
92015-1700
NUT
$8.53¢4 263
1
#92037
92037-1827
CLAMP,HOSE
$7.41¢3 706
1
#92072A
92072-1293
BAND,L=140
$6.85¢3 425
1
#92072B
92072-1392
BAND
$3.70¢1 850
1
#92072C
92072-1414
BAND
$3.70¢1 850
1
#92072
92072-0066
BAND
$3.17¢1 588
1
#92152
92152-0445
COLLAR,6.5X10X5.6
$4.88¢2 438
1
#92170
92170-1925
CLAMP
$2.33¢1 163
1
#92171A
92171-0652
CLAMP,L=60
$2.41¢1 206
1
#92171B
92171-0741
CLAMP
$12.38¢6 188
1
#92171
92171-0068
CLAMP,CLIP,DIA=20
$2.68¢1 338
1
#92171C
92171-0813
CLAMP
$9.90¢4 950
1
