FUEL TANK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

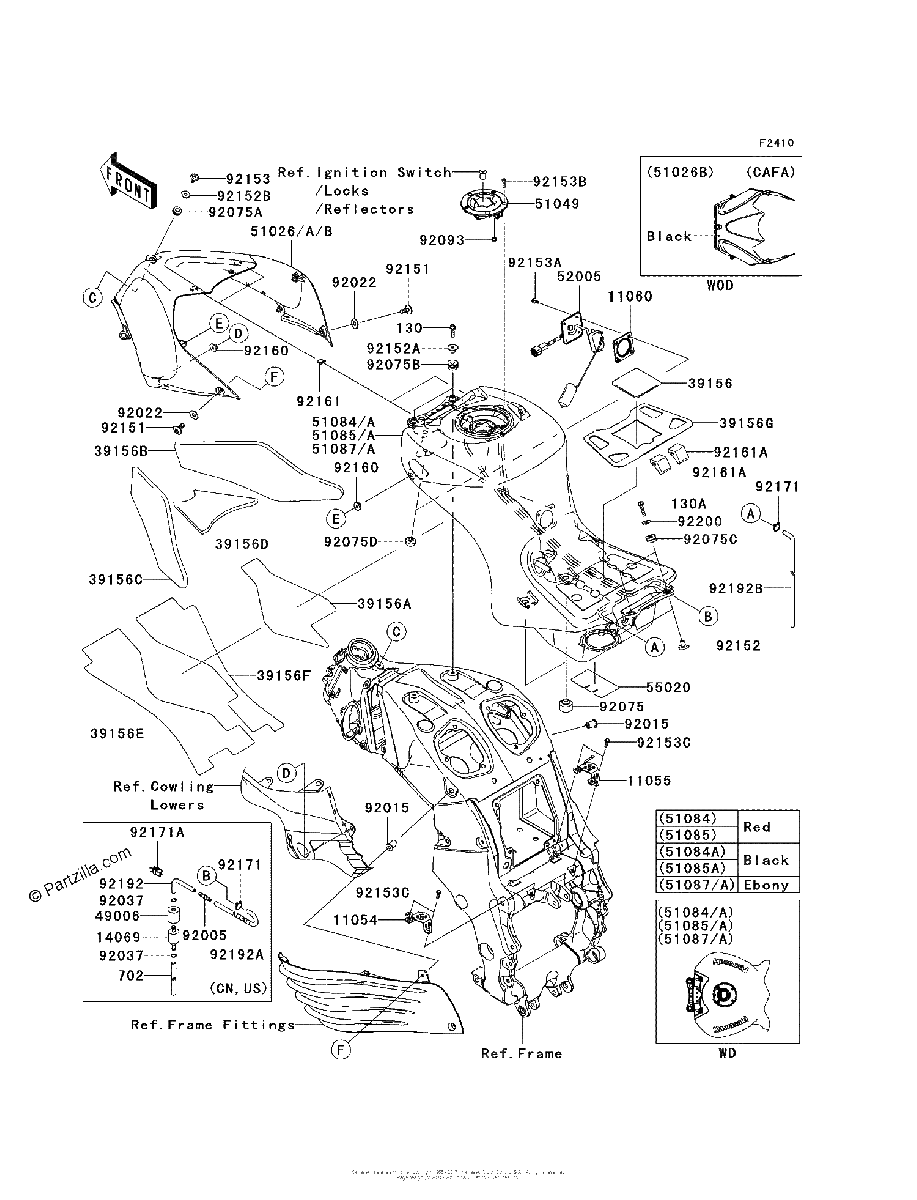

Diagrama de FUEL TANK

Repuestos

#130
130BA0625
BOLT FLANGED,6X25
$1.16¢581
1
#130A
130BA0630
BOLT-FLANGED,6X30
$1.36¢678
1
#702
702A07200
TUBE RUBBER,7X10X200
$12.11¢6 055
1
#11054
11054-0681
BRACKET,FUEL TANK,CNT,Left Hand
$10.10¢5 048
1
#11055
11055-0063
BRACKET,FUEL TANK,CNT,RH
$12.30¢6 152
1
#11060
11060-1952
GASKET,FUEL GAUGE
$20.55¢10 275
1
#14069
14069-1051
BREATHER
$9.30¢4 652
1
#39156
39156-0129
PAD,SEAT
$5.63¢2 818
1
#39156E
39156-0173
PAD,FUEL TANK,Left Hand
$48.99¢24 495
1
#39156A
39156-0147
PAD,FUEL TANK,CNT
$9.44¢4 721
1
#39156B
39156-0159
PAD,FUEL TANK COVER,Right Hand
$23.49¢11 747
1
#39156C
39156-0160
PAD,FUEL TANK COVER,LH
$23.49¢11 747
1
#39156D
39156-0161
PAD,FUEL TANK COVER,CNT
$16.35¢8 176
1
#39156F
39156-0174
PAD,FUEL TANK,RH
$48.99¢24 495
1
#39156G
39156-0592
PAD,FUEL TANK
$8.96¢4 479
1
#49006
49006-1267
BOOT,BREATHER
$7.97¢3 985
1
#51026
51026-0007-H8
COVER TANK,FUEL,EBONY
$342.10¢171 051
1
#51026
51026-0007-660
COVER TANK,FUEL,M S BLACK
$330.15¢165 077
1
#51026
51026-0007-A5
COVER TANK,FUEL,C P RED
$360.87¢180 435
1
#51026A
51026-0007-H8
COVER TANK,FUEL,EBONY
$342.10¢171 051
1
#51049
51049-0039
CAP TANK,FUEL
$159.95¢79 977
1
#51084
51084-5441-660
TANK COMP FUEL,M S BLACK
No Disponible
1
#51084
51084-5441-A5
TANK COMP FUEL,C P RED
$1475.70¢737 852
1
#51085
51085-5351-A5
TANK COMP FUEL,C P RED
$1479.27¢739 634
1
#51085
51085-5351-660
TANK COMP FUEL,M S BLACK
No Disponible
1
#51087
51087-5033-H8
TANK COMP FUEL,EBONY
No Disponible
1
#51087
51087-5034-H8
TANK COMP FUEL,EBONY
$1475.70¢737 852
1
#51087A
51087-5034-H8
TANK COMP FUEL,EBONY
$1475.70¢737 852
1
#52005
52005-0026
GAUGE,FUEL
$246.51¢123 257
1
#55020
55020-0551
GUARD,FUEL TANK
$17.27¢8 637
1
#92005
92005-0096
FITTING | [US]
$9.31¢4 658
1
#92015
92015-1692
NUT,RUBBER,6MM
$6.72¢3 358
1
#92022
92022-1143
WASHER,6.5X16X1
$3.59¢1 794
1
#92037
92037-147
CLAMP,TUBE | [CA]
$6.72¢3 358
1
#92075C
92075-209
DAMPER
$4.28¢2 139
1
#92075D
92075-281
DAMPER,9X24X14
$5.60¢2 800
1
#92075A
92075-1634
DAMPER
$4.28¢2 139
1
#92075B
92075-1690
DAMPER,10X24X12
$4.57¢2 283
1
#92075
92075-015
DAMPER
$4.57¢2 283
1
#92093
92093-1030
SEAL,FUEL TANK CAP
$7.11¢3 553
1
#92151
92151-1605
BOLT,SOCKET,6X30
$2.01¢1 006
1
#92152A
92152-0365
COLLAR
$1.24¢621
1
#92152B
92152-0424
COLLAR
$5.72¢2 858
1
#92152
92152-0364
COLLAR
$11.68¢5 842
1
#92153A
92153-1421
BOLT,FLANGED,5X12
$1.59¢793
1
#92153C
92153-1694
BOLT,FLANGED,6X20
$1.95¢977
1
#92153B
92153-1616
BOLT,SOCKET,5X16
$1.24¢621
1
#92153
92153-1267
BOLT,SOCKET,6X23
$2.37¢1 185
1
#92160
92160-1613
DAMPER
$3.40¢1 702
1
#92161A
92161-0458
DAMPER
$9.53¢4 767
1
#92161
92161-0365
DAMPER
$4.84¢2 421
1
#92171A
92171-1720
CLAMP | [CN,US]
$3.98¢1 989
1
#92171
92171-0573
CLAMP
$1.30¢650
1
#92192B
92192-0693
TUBE,DRAIN
$20.14¢10 068
1
#92192A
92192-0648
TUBE,BREATHER,UPP | [US]
$19.86¢9 930
1
#92192
92192-0615
TUBE,BREATHER,INNER
$6.24¢3 122
1
#92200
92200-0283
WASHER,6.5X20X1.6
$1.30¢650
1
