SIDE COVERS CHAIN COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

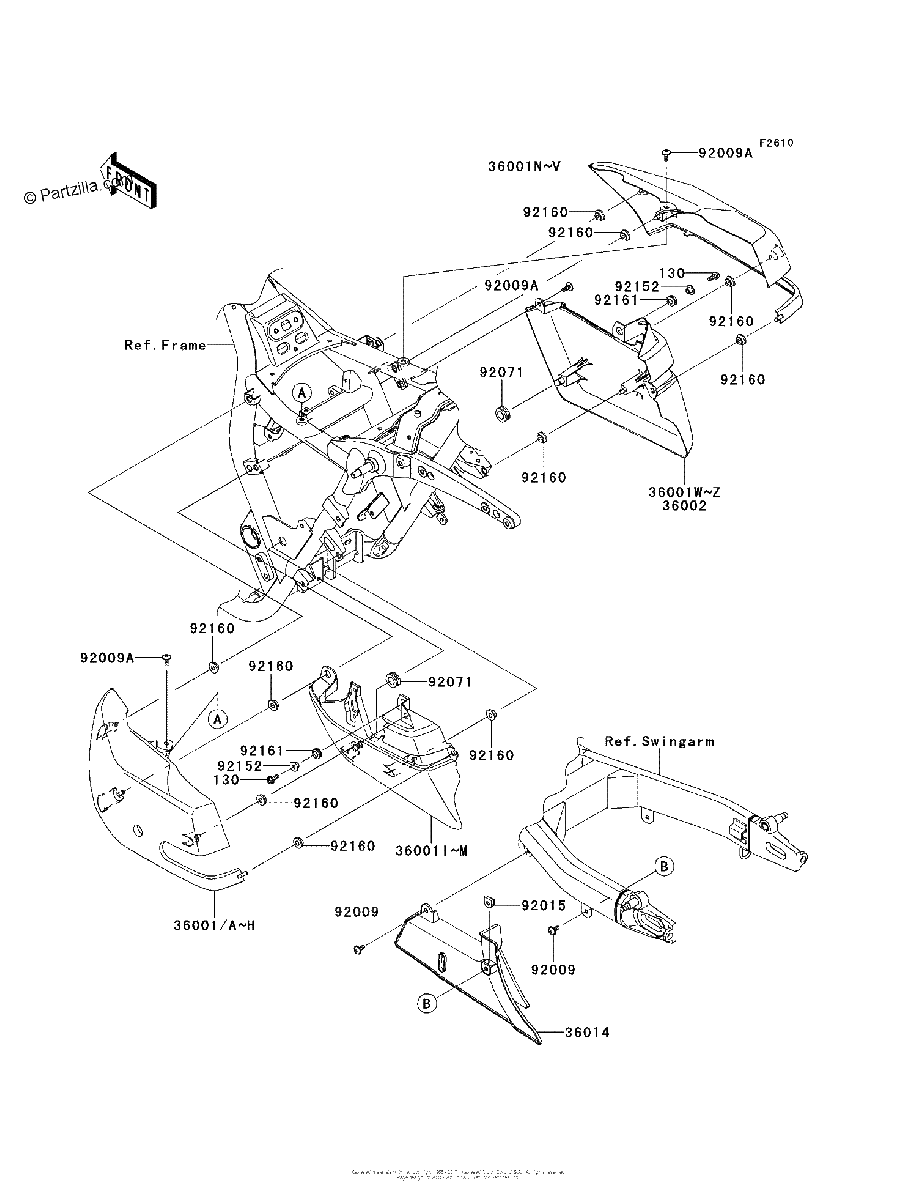

Diagrama de SIDE COVERS CHAIN COVER

Repuestos

#130
130BA0616
BOLT FLANGED,6X16
$1.16¢581
1
#36001W
36001-0142-19A
COVER SIDE,Right Hand,Lower,M M S BLUE
$285.46¢142 732
1
#36001N
36001-0141-25X
COVER SIDE,Right Hand,Upper,M M GRAY
$299.83¢149 914
1
#36001N
36001-0141-723
COVER SIDE,Right Hand,Upper,C P BLUE
$299.75¢149 874
1
#36001N
36001-0141-740
COVER SIDE,Right Hand,Upper,M TITANIUM
$269.77¢134 884
1
#36001N
36001-0141-C4
COVER SIDE,Right Hand,Upper,M GRAYSTONE
$285.46¢142 732
1
#36001N
36001-0141-R1
COVER SIDE,Right Hand,Upper,P A WHITE
$285.46¢142 732
1
#36001W
36001-0142-17K
COVER SIDE,Right Hand,Lower,M D,BLACK
$299.75¢149 874
1
#36001Y
36001-0142-17M
COVER SIDE,Right Hand,Lower,A SILVER
$285.46¢142 732
1
#36001W
36001-0142-17M
COVER SIDE,Right Hand,Lower,A SILVER
$285.46¢142 732
1
#36001S
36001-0141-25U
COVER SIDE,Right Hand,Upper,C I BLUE
$274.86¢137 431
1
#36001W
36001-0142-H8
COVER-SIDE,RH,LWR,EBONY
$285.46¢142 732
1
#36001N
36001-0141-25U
COVER SIDE,Right Hand,Upper,C I BLUE
$274.86¢137 431
1
#36001N
36001-0141-25T
COVER SIDE,Right Hand,Upper,C D RED
$299.75¢149 874
1
#36001
36001-0139-10H
COVER-SIDE,LH,UPP,P.M.GRAY
$274.86¢137 431
1
#36001
36001-0139-C4
COVER SIDE,Left Hand,Upper,M GRAYSTONE
$285.46¢142 732
1
#36001B
36001-0139-10H
COVER-SIDE,LH,UPP,P.M.GRAY
$274.86¢137 431
1
#36001
36001-0139-19J
COVER SIDE,Left Hand,Upper,M I RED
$285.46¢142 732
1
#36001
36001-0139-25T
COVER SIDE,Left Hand,Upper,C D RED
$299.75¢149 874
1
#36001
36001-0139-25U
COVER SIDE,Left Hand,Upper,C I BLUE
$274.86¢137 431
1
#36001E
36001-0139-25U
COVER SIDE,Left Hand,Upper,C I BLUE
$274.86¢137 431
1
#36001
36001-0139-25X
COVER SIDE,Left Hand,Upper,M M GRAY
$285.46¢142 732
1
#36001
36001-0139-723
COVER SIDE,Left Hand,Upper,C P BLUE
$299.75¢149 874
1
#36001
36001-0139-740
COVER SIDE,Left Hand,Upper,M TITANIUM
$269.77¢134 884
1
#36001
36001-0139-R1
COVER SIDE,Left Hand,Upper,P A WHITE
$285.46¢142 732
1
#36001N
36001-0141-19J
COVER SIDE,Right Hand,Upper,M I RED
$285.46¢142 732
1
#36001I
36001-0140-17K
COVER SIDE,Left Hand,Lower,M D,BLACK
$299.75¢149 874
1
#36001K
36001-0140-17M
COVER SIDE,Left Hand,Lower,A SILVER
$285.46¢142 732
1
#36001I
36001-0140-17M
COVER SIDE,Left Hand,Lower,A SILVER
$285.46¢142 732
1
#36001I
36001-0140-19A
COVER SIDE,Left Hand,Lower,M M S BLUE
$285.46¢142 732
1
#36001I
36001-0140-25T
COVER SIDE,Left Hand,Lower,C D RED
$299.75¢149 874
1
#36001I
36001-0140-H8
COVER-SIDE,LH,LWR,EBONY
$285.46¢142 732
1
#36001N
36001-0141-10H
COVER-SIDE,RH,UPP,P.M.GRAY
$274.86¢137 431
1
#36001P
36001-0141-10H
COVER-SIDE,RH,UPP,P.M.GRAY
$274.86¢137 431
1
#36002
36001-0142-25T
COVER SIDE,Right Hand,Lower,C D RED
$299.75¢149 874
1
#36014
36014-0042
CASE-CHAIN
$49.91¢24 955
1
#92009
92009-1555
SCREW,6X14
$3.22¢1 610
1
#92009A
92009-1621
SCREW,6X16
$3.42¢1 708
1
#92015
92015-1904
NUT,CLIP,6MM
$5.91¢2 956
1
#92071
92071-1131
GROMMET
$7.11¢3 553
1
#92152
92152-0295
COLLAR
$5.12¢2 559
1
#92160
92160-1613
DAMPER
$3.40¢1 702
1
#92161
92161-0266
DAMPER
$1.59¢793
1
