COWLING UPPER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

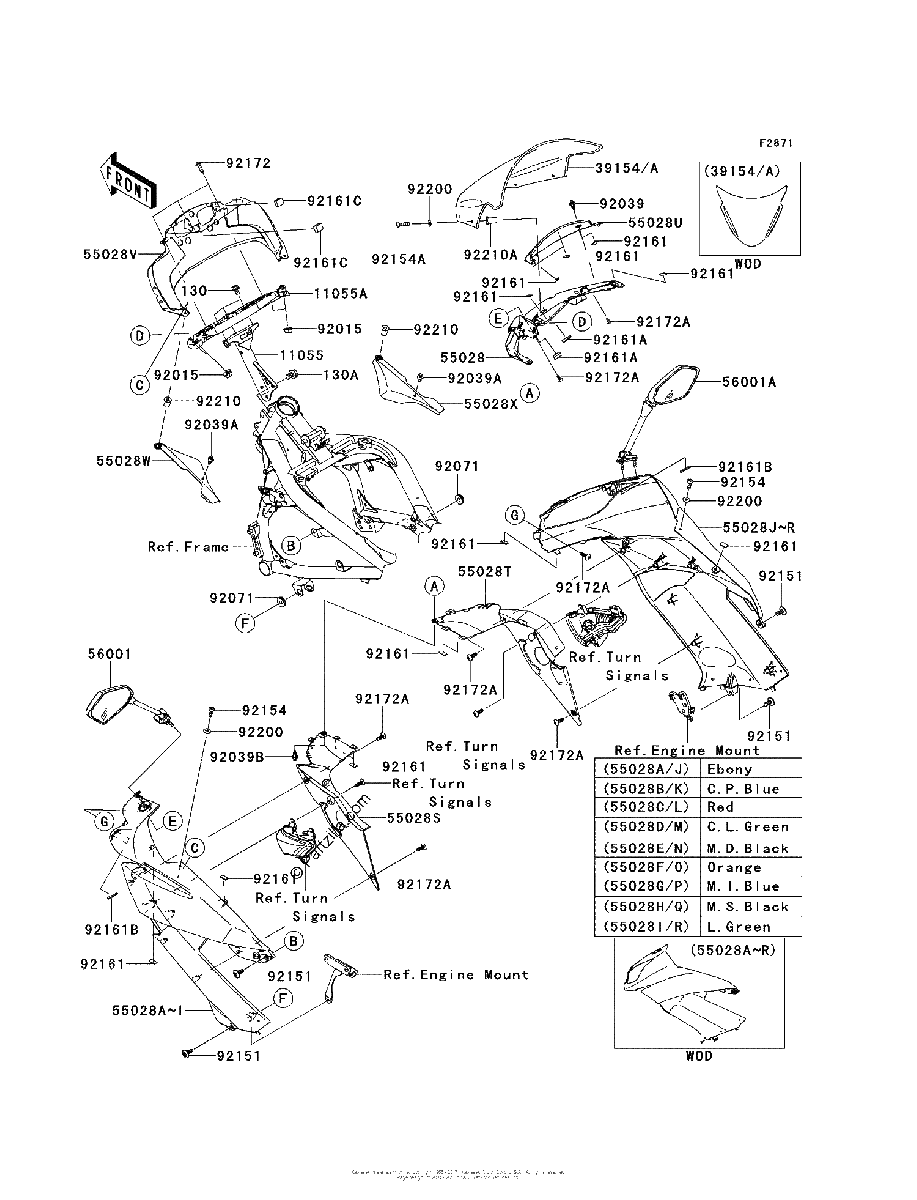

Diagrama de COWLING UPPER

Repuestos

#130
130BB0612
BOLT FLANGED,6X12
$2.01¢1 006
1
#130A
130BB0812
BOLT-FLANGED,8X12
$0.75¢374
1
#11055
11055-0948
BRACKET,MAIN COWLING
$65.89¢32 948
1
#11055A
11055-0949
BRACKET,METER&MIRROR STAY
$143.96¢71 979
1
#39154
39154-0040
WINDSHIELD
$169.64¢84 818
1
#39154A
39154-0055
WINDSHIELD
$169.64¢84 818
1
#39154
39154-0055
WINDSHIELD
$169.64¢84 818
1
#55028S
55028-0241
COWLING,INNER,Front,Left Hand
$75.68¢37 841
1
#55028T
55028-0242
COWLING,INNER,FR,RH
$75.68¢37 841
1
#55028U
55028-0243
COWLING,METER
$44.25¢22 126
1
#55028V
55028-0246
COWLING,INNER,CNT
$87.05¢43 527
1
#55028W
55028-0247
COWLING,INNER,Left Hand
$25.61¢12 805
1
#55028X
55028-0248
COWLING,INNER,RH
$25.61¢12 805
1
#55028J
55028-0235-777
COWLING,Upper,Right Hand,L GREEN
$583.63¢291 813
1
#55028J
55028-0235-H8
COWLING,Upper,Right Hand,EBONY
$611.87¢305 934
1
#55028J
55028-0235-15Z
COWLING,Upper,Right Hand,M S BLACK
$585.26¢292 629
1
#55028A
55028-0234-15T
COWLING,UPP,LH,C.B.ORANGE
$585.26¢292 629
1
#55028
55028-0233
COWLING,Upper,CNT
$87.05¢43 527
1
#55028A
55028-0234-15D
COWLING,Upper,Left Hand,C P BLUE
No Disponible
1
#55028A
55028-0234-15I
COWLING,Upper,Left Hand,P RED
No Disponible
1
#55028A
55028-0234-15P
COWLING,Upper,Left Hand,C L GREEN
$611.87¢305 934
1
#55028A
55028-0234-15Q
COWLING,Upper,Left Hand,M D BLACK
$611.87¢305 934
1
#55028F
55028-0234-15T
COWLING,UPP,LH,C.B.ORANGE
$585.26¢292 629
1
#55028A
55028-0234-15W
COWLING,Upper,Left Hand,M I BLUE
$611.87¢305 934
1
#55028Q
55028-0235-15Z
COWLING,Upper,Right Hand,M S BLACK
$585.26¢292 629
1
#55028H
55028-0234-15Z
COWLING,Upper,Left Hand,M S BLACK
$585.26¢292 629
1
#55028A
55028-0234-15Z
COWLING,Upper,Left Hand,M S BLACK
$585.26¢292 629
1
#55028A
55028-0234-777
COWLING,Upper,Left Hand,L GREEN
$583.63¢291 813
1
#55028A
55028-0234-H8
COWLING,Upper,Left Hand,EBONY
$611.87¢305 934
1
#55028J
55028-0235-15D
COWLING,Upper,Right Hand,C P BLUE
No Disponible
1
#55028J
55028-0235-15I
COWLING,Upper,Right Hand,P RED
No Disponible
1
#55028J
55028-0235-15P
COWLING,Upper,Right Hand,C L GREEN
$611.87¢305 934
1
#55028J
55028-0235-15Q
COWLING,Upper,Right Hand,M D BLACK
$611.87¢305 934
1
#55028J
55028-0235-15T
COWLING,UPP,RH,C.B.ORANGE
$549.81¢274 907
1
#55028O
55028-0235-15T
COWLING,UPP,RH,C.B.ORANGE
$549.81¢274 907
1
#55028J
55028-0235-15W
COWLING,Upper,Right Hand,M I BLUE
$611.87¢305 934
1
#56001
56001-0142
MIRROR-ASSY,LH
$84.36¢42 182
1
#56001A
56001-0143
MIRROR-ASSY,RH
$87.89¢43 947
1
#92015
92015-1233
NUT,FLANGED,6MM,BLACK
$5.01¢2 507
1
#92039B
92039-1283
RIVET
$2.37¢1 185
1
#92039
92039-0023
RIVET
$2.51¢1 254
1
#92039A
92039-0051
RIVET
$4.24¢2 122
1
#92071
92071-056
GROMMET
$3.90¢1 949
1
#92151
92151-1654
BOLT,SOCKET,6X14
$1.49¢747
1
#92154
92154-0182
BOLT,SOCKET,5X16
$2.17¢1 087
1
#92154A
92154-0216
BOLT,SOCKET,5X20
$1.84¢920
1
#92161
92161-0726
DAMPER
$2.17¢1 087
1
#92161A
92161-0731
DAMPER,Upper CNT COWLING
$3.85¢1 926
1
#92161B
92161-0740
DAMPER,Upper SIDE COWLING
$3.36¢1 679
1
#92161C
92161-0835
DAMPER,20X20X10
$3.52¢1 759
1
#92172
92172-0004
SCREW,6X14
$2.37¢1 185
1
#92172A
92172-0427
SCREW,TAPPING,5X16
$2.17¢1 087
1
#92200
92200-0006
WASHER,NYLONE,5.3X11.5X0.5
$1.63¢816
1
#92210
92210-0498
NUT,WELL,5MM
$6.68¢3 341
1
#92210A
92210-1227
NUT,POP,5MM
$2.58¢1 288
1
