FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

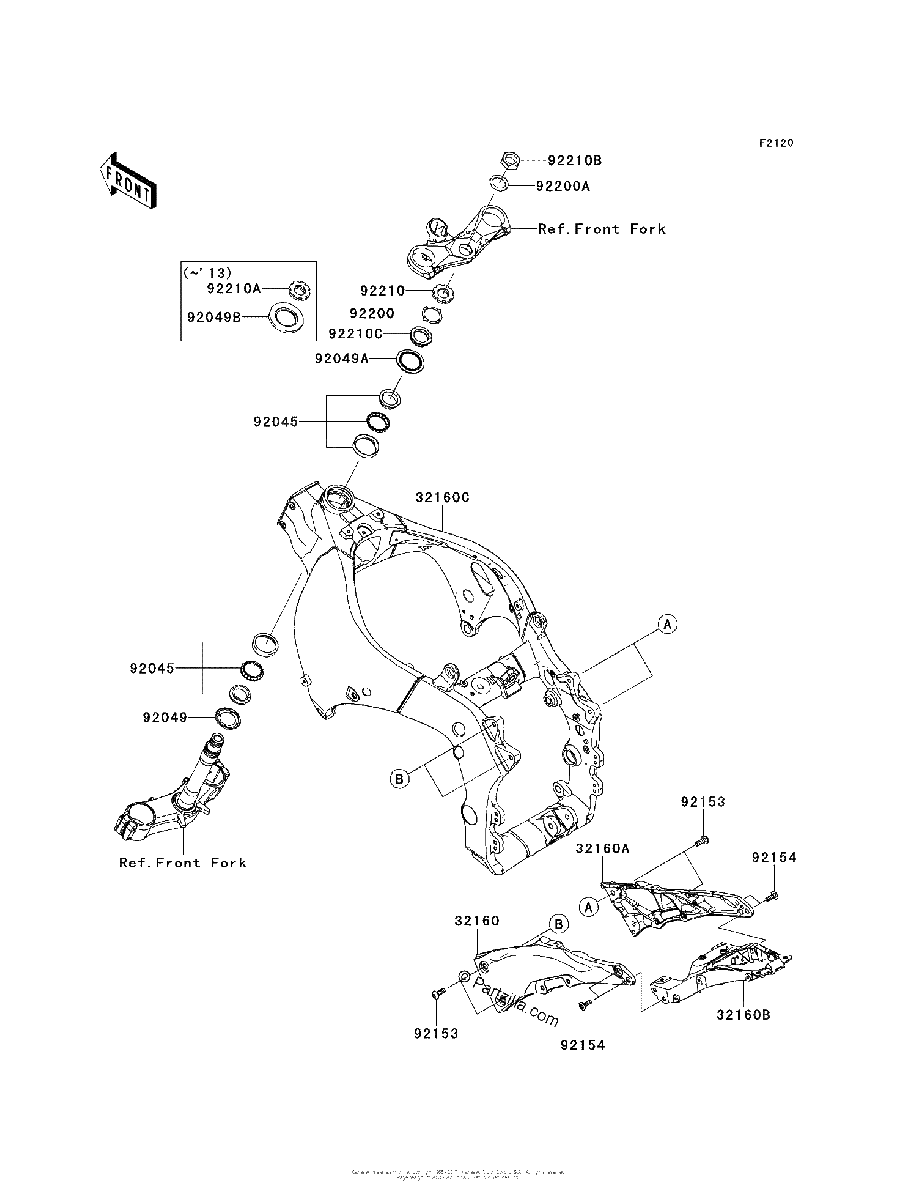

Diagrama de FRAME

Repuestos

#32160
32160-0506-18R
FRAME-COMP,RR,LH,F.S.BLACK
$285.89¢142 945
1
#32160A
32160-0507-18R
FRAME-COMP,RR,RH,F.S.BLACK
$285.89¢142 945
1
#32160B
32160-0508
FRAME COMP,Rear
$245.32¢122 659
1
#32160C
32160-0574-18R
FRAME COMP,Front,F S BLACK
$2584.96¢1 292 479
1
#92045
92045-1384
BEARING BALL,SF07A17PX1V1
$47.85¢23 926
1
#92049
92049-0022
SEAL-OIL,DS35X55X4
$15.72¢7 860
1
#92049A
92049-0742
SEAL-OIL,43X55.5X8.6
$18.07¢9 033
1
#92049B
92049-1382
SEAL OIL,XMH 43 75 6.4J
$23.74¢11 868
1
#92153
92153-1136
BOLT,SOCKET,10X25
$4.53¢2 266
1
#92154
92154-0077
BOLT,SOCKET,8X23
$3.29¢1 644
1
#92200
92200-0036
WASHER
$4.57¢2 283
1
#92200A
92200-0595
WASHER,28.5X40X1.6
$3.96¢1 978
1
#92210
92210-0095
NUT,35MM
$16.50¢8 251
1
#92210A
92210-0096
NUT,35MM
$19.93¢9 965
1
#92210B
92210-0209
NUT,28MM
$18.73¢9 367
1
#92210C
92210-0823
NUT,35MM
$24.59¢12 293
1
