HEADLIGHT S

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

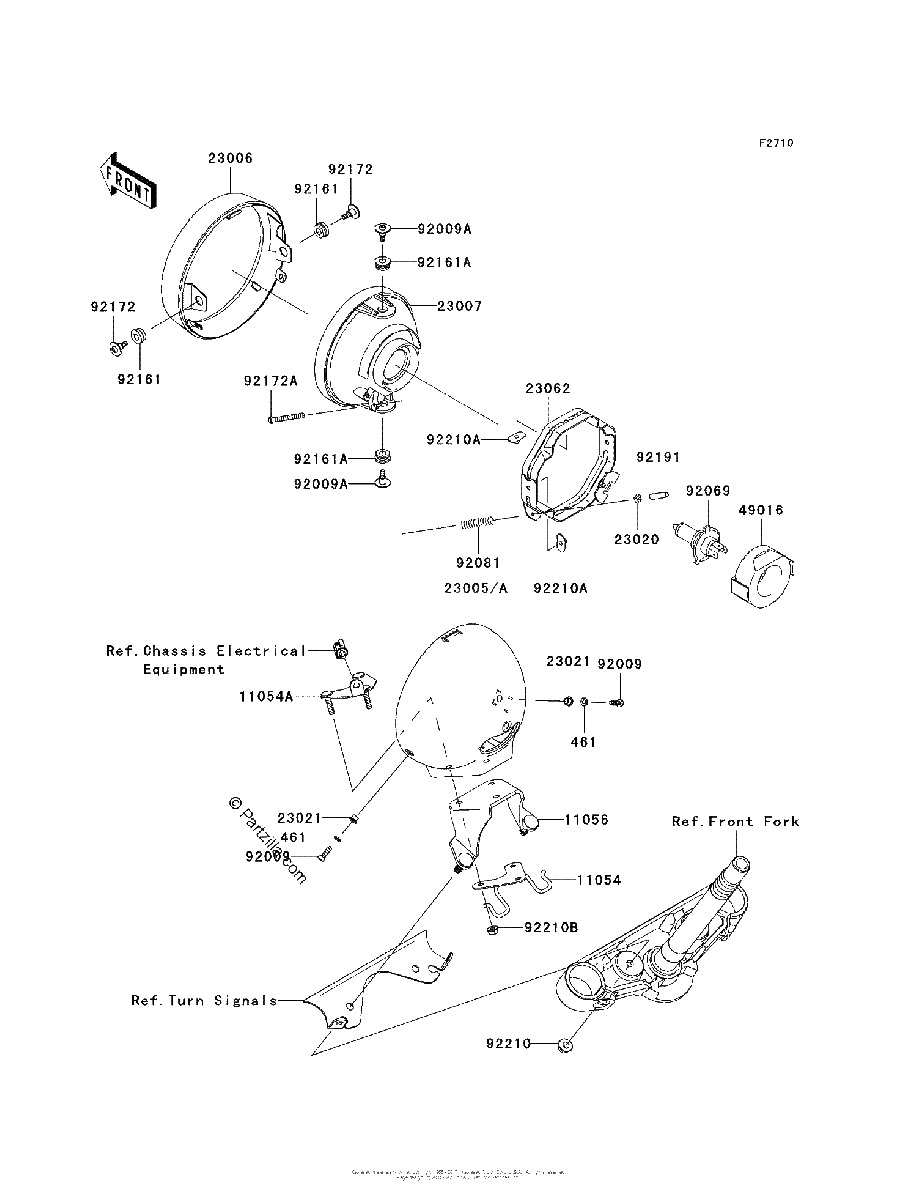

Diagrama de HEADLIGHT S

Repuestos

#461
461S0500
WASHER-SPRING,5MM
$0.60¢299
1
#11054
11054-1173
BRACKET,SIGNAL LAMP HARNESS
$15.50¢7 751
1
#11054A
11054-1391
BRACKET,HEAD LAMP
$15.50¢7 751
1
#11056
11056-0045
BRACKET,HEAD LAMP
$61.46¢30 728
1
#23005
23005-0021
BODY-COMP-HEAD LAMP
$190.97¢95 485
1
#23005
23005-0036
BODY COMP HEAD LAMP
$155.25¢77 625
1
#23006
23006-0013
RIM-LAMP
$96.75¢48 375
1
#23007
23007-0081
LENS-COMP,HEAD LAMP
$183.10¢91 551
1
#23020
23020-018
NUT,4MM,FOCUS ADJUST
$4.24¢2 122
1
#23021
23021-010
WASHER
$3.94¢1 972
1
#23062
23062-0048
BRACKET-COMP,HEAD LAMP
$55.86¢27 928
1
#49016
49016-1210
COVER SEAL,HEAD LAMP SOCKET
$12.71¢6 354
1
#92009
92009-1947
SCREW,5MM
$2.18¢1 092
1
#92009A
92009-1956
SCREW,5MM
$2.43¢1 213
1
#92069
92069-1002
BULB,12V 60/55W,H4
No Disponible
1
#92081
92081-1701
SPRING,FOCUS ADJUSTING
$4.42¢2 208
1
#92161A
92161-1188
DAMPER
$2.33¢1 167
1
#92161
92161-1187
DAMPER
$2.33¢1 167
1
#92172A
92172-0294
SCREW,FOCUS ADJUST,4X55
$3.78¢1 892
1
#92172
92172-0293
SCREW
$2.32¢1 162
1
#92191
92191-1217
TUBE,3.5X5.5X19
$2.17¢1 087
1
#92210A
92210-0364
NUT,5MM
$2.92¢1 461
1
#92210
92210-0004
NUT,FLANGED,8MM
$4.88¢2 438
1
#92210B
92210-0368
NUT,FLANGED,6MM
$1.24¢621
1
