CHASSIS ELECTRICAL EQUIPMENT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

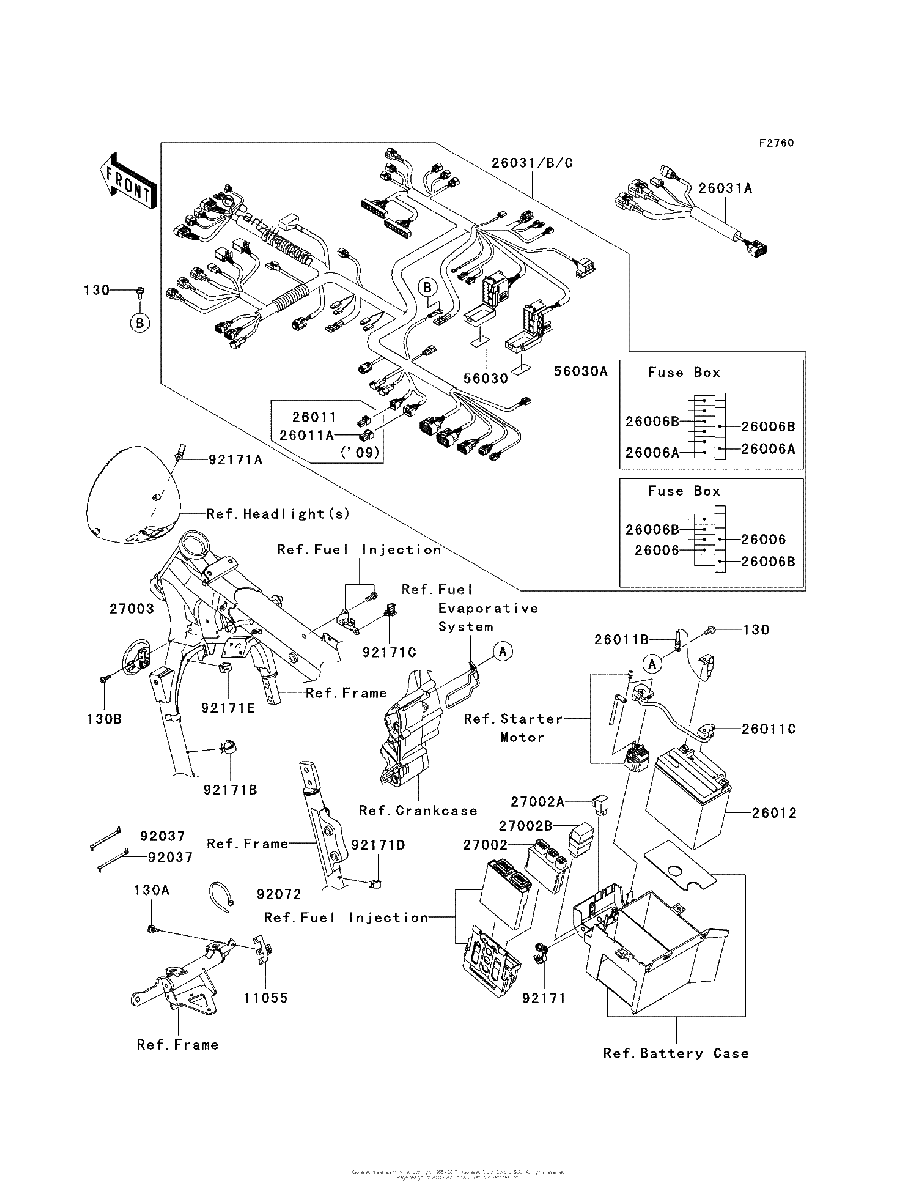

Diagrama de CHASSIS ELECTRICAL EQUIPMENT

Repuestos

#130
130BA0614
BOLT FLANGED,6X14
$1.26¢631
1
#130A
130BB0612
BOLT FLANGED,6X12
$2.19¢1 094
1
#130B
130BB0618
BOLT FLANGED,6X18
$1.74¢869
1
#11055
11055-0613
BRACKET,CONNECTOR
$9.66¢4 831
1
#26006
26006-0001
FUSE,MINI BLADE,15A,BLUE
$6.25¢3 125
1
#26006A
26006-1077
FUSE,MINI BLADE,5A,TAN
$5.06¢2 531
1
#26006B
26006-1078
FUSE,MINI BLADE,10A,RED
$4.38¢2 188
1
#26011
26011-0082
WIRE LEAD
$27.50¢13 750
1
#26011A
26011-0146
WIRE LEAD
$41.04¢20 519
1
#26011B
26011-0180
WIRE-LEAD,BATTERY(-)
$67.58¢33 788
1
#26011C
26011-0217
WIRE LEAD,BATTERY(+)
$70.77¢35 387
1
#26012
26012-1371
BATTERY,MF,FTZ16 BS,12V 18AH
No Disponible
1
#26031C
26031-1167
HARNESS,MAIN
$1447.29¢723 644
1
#26031
26031-1167
HARNESS,MAIN
$1447.29¢723 644
1
#26031
26031-0886
HARNESS,MAIN
$1419.39¢709 694
1
#26031A
26031-0651
HARNESS,Rear,SUB
$139.77¢69 887
1
#26031
26031-0650
HARNESS,MAIN
$892.40¢446 200
1
#27002B
27002-1113
RELAY Assembly,SIGNAL LAMP
$147.95¢73 975
1
#27002A
27002-1062
RELAY-ASSY
$51.68¢25 838
1
#27002
27002-0007
RELAY-ASSY,BOX
No Disponible
1
#27003
27003-0055
HORN
$97.76¢48 881
1
#56030A
56030-0295
LABEL,FUSE BOX
$8.68¢4 338
1
#56030
56030-0177
LABEL,FUSE BOX
$6.96¢3 481
1
#92037
92037-1903
CLAMP,SPEED,L=80.5
$7.80¢3 900
1
#92072
92072-1195
BAND,L=202
$1.51¢756
1
#92171D
92171-1423
CLAMP,10MM DIA.
$4.39¢2 194
1
#92171C
92171-1415
CLAMP,13MM DIA.
$1.99¢994
1
#92171B
92171-0081
CLAMP,20MM DIA.
$4.39¢2 194
1
#92171A
92171-0069
CLAMP,20MM DIA.
$2.68¢1 338
1
#92171
92171-0068
CLAMP,CLIP,DIA=20
$2.68¢1 338
1
#92171E
92171-1424
CLAMP,15MM DIA.
$4.16¢2 081
1
