FRONT FORK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

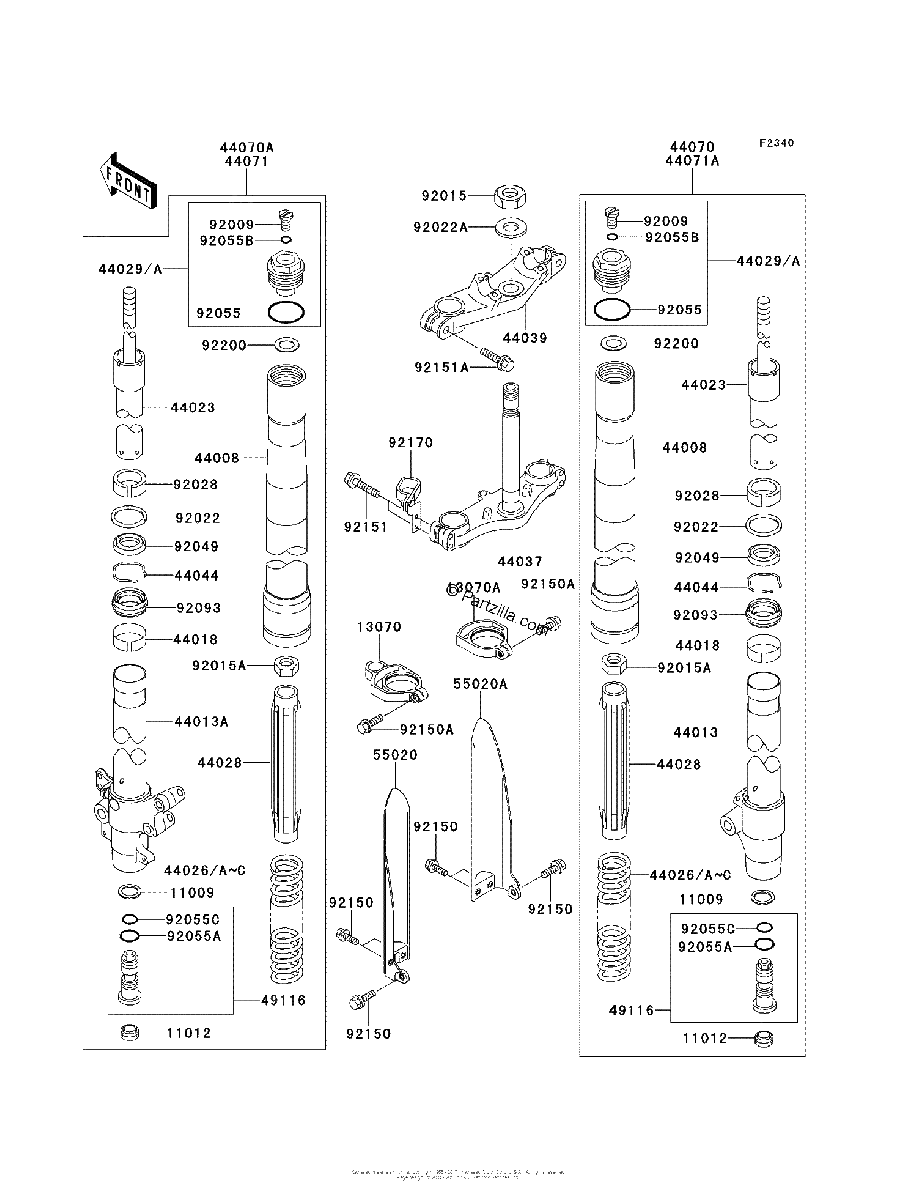

Diagrama de FRONT FORK

Repuestos

#11009
11009-1592
GASKET,FORK CYLINDER BOLT
$5.55¢2 777
1
#11012
11012-1692
CAP
$5.78¢2 892
1
#13070
13070-0049-6D
GUIDE,PROTECTOR,Left Hand,BLACK
$21.76¢10 879
1
#13070A
13070-0050-6D
GUIDE,PROTECTOR,Right Hand,BLACK
$21.76¢10 879
1
#44008
44008-1041-828
PIPE FORK OUTER,GOLD
$546.64¢273 321
1
#44013
44013-1442
PIPE-FORK INNER,RH
$358.34¢179 170
1
#44013A
44013-1484
PIPE FORK INNER,Left Hand
$317.46¢158 729
1
#44018
44018-1058
PISTON-FORK
$21.57¢10 787
1
#44023
44023-1119
CYLINDER-SET-FORK
$434.12¢217 062
1
#44026A
44026-1634
SPRING-FRONT FORK,K=2.84N/MM
$66.48¢33 241
1
#44026
44026-1633
SPRING-FRONT FORK,K=2.75N/MM
$66.48¢33 241
1
#44026
44026-1634
SPRING-FRONT FORK,K=2.84N/MM
$66.48¢33 241
1
#44026B
44026-1635
SPRING-FRONT FORK,K=2.94N/MM
$66.48¢33 241
1
#44026
44026-1635
SPRING-FRONT FORK,K=2.94N/MM
$66.48¢33 241
1
#44026C
44026-1671
SPRING-FRONT FORK,K=2.65N/MM
$72.43¢36 213
1
#44026
44026-1671
SPRING-FRONT FORK,K=2.65N/MM
$72.43¢36 213
1
#44028
44028-1090
GUIDE-FORK SPRING
$45.44¢22 718
1
#44029
44029-0056-KW
SEAT FORK SPRING,BLUE
$79.86¢39 928
1
#44029
44029-1152
SEAT-FORK SPRING
$75.66¢37 829
1
#44029A
44029-1152
SEAT-FORK SPRING
$75.66¢37 829
1
#44037
44037-0032-21
HOLDER FORK UNDER,F BLACK
$375.66¢187 830
1
#44039
44039-0023-21
HOLDER FORK UPPER,F BLACK
$168.89¢84 445
1
#44044
44044-015
RING-SNAP,FORK OIL
$13.59¢6 797
1
#44070A
44070-1849-828
DAMPER Assembly,FORK,Left Hand,GOLD
$1104.77¢552 385
1
#44070
44070-1631-828
DAMPER Assembly,FORK,Right Hand,GOLD
$1104.77¢552 385
1
#44071
44071-5131
DAMPER Assembly,FORK,Left Hand
$1088.05¢544 025
1
#44071A
44071-5132
DAMPER Assembly,FORK,Right Hand
$1088.05¢544 025
1
#49116
49116-1153
VALVE Assembly,FORK
$165.94¢82 973
1
#55020
55020-1611-6D
GUARD,FORK,Left Hand,BLACK
$33.59¢16 796
1
#55020A
55020-1612-6D
GUARD,FORK,Right Hand,BLACK
$33.59¢16 796
1
#92009
92009-1568
SCREW
$6.60¢3 301
1
#92015
92015-1653
NUT,STEERING STEM,22MM
$15.18¢7 590
1
#92015A
92015-1839
NUT
$19.75¢9 873
1
#92022
92022-1275
WASHER,FRONT FORK
$7.81¢3 904
1
#92022A
92022-1873
WASHER,STEERING STEM
$6.82¢3 410
1
#92028
92028-1656
BUSHING
$16.47¢8 234
1
#92049
92049-1394
SEAL OIL,FORK OUTER TUBE
$19.75¢9 873
1
#92055
92055-1123
RING-O
$5.60¢2 800
1
#92055A
92055-1156
RING O
$1.30¢650
1
#92055B
92055-1441
RING O,2.8X6.6X1.9
$3.97¢1 984
1
#92055C
92055-1502
RING O,FORK VALVE
$7.92¢3 962
1
#92093
92093-1426
SEAL,FORK OUTER TUBE
$23.09¢11 546
1
#92150
92150-1340
BOLT,6X14
$4.62¢2 311
1
#92150A
92150-1802
BOLT,5X16
$4.76¢2 380
1
#92151
92151-1877
BOLT-FLANGED-SMALL,8X40
$5.59¢2 794
1
#92151A
92151-1878
BOLT-FLANGED-SMALL,8X35
$4.35¢2 173
1
#92170
92170-1810
CLAMP
$8.66¢4 330
1
#92200
92200-1655
WASHER
$5.47¢2 737
1
