FUEL TANK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

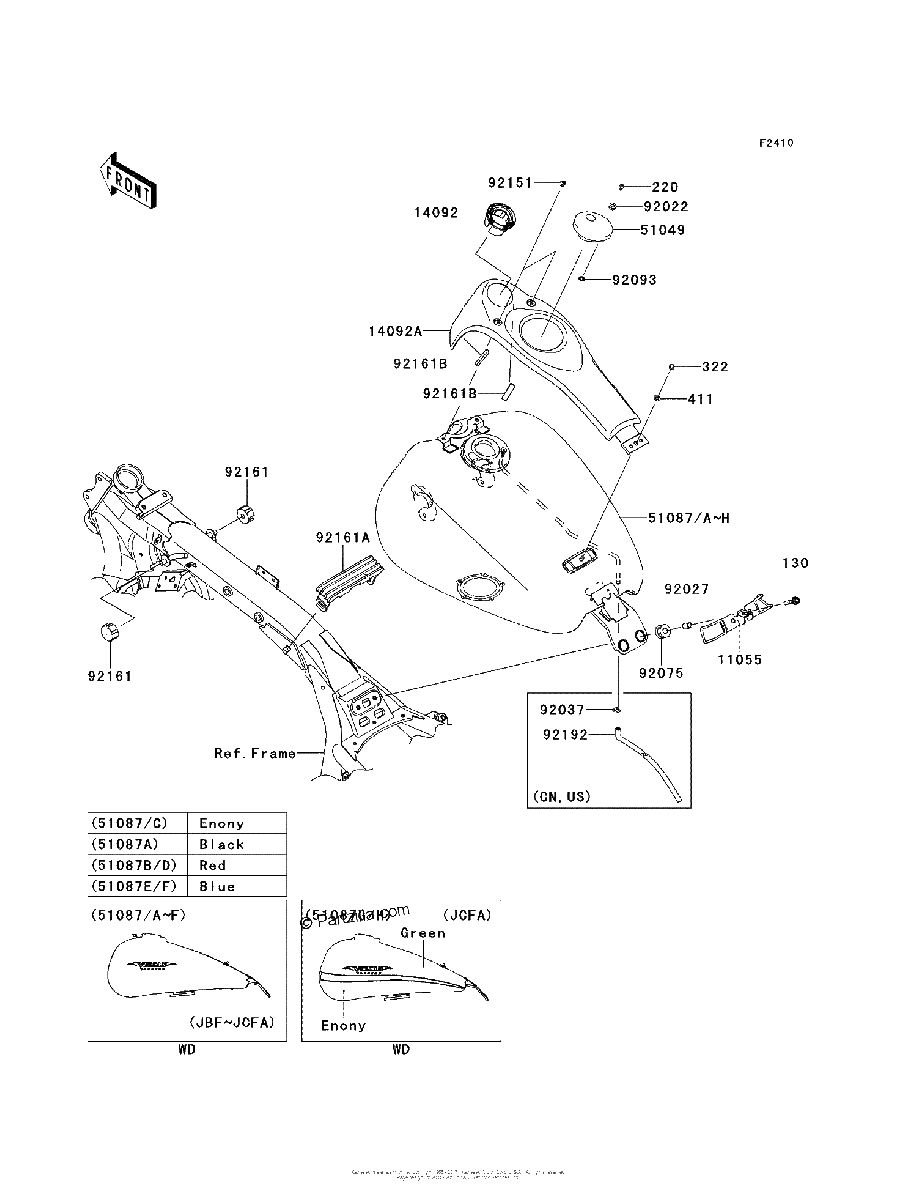

Diagrama de FUEL TANK

Repuestos

#130
130BA0830
BOLT-FLANGED,8X30
$1.72¢862
1
#220
220AA0510
SCREW-PAN-CROS,5X10
$0.77¢385
1
#322
322AB0600
NUT CAP,6MM
$2.37¢1 185
1
#411
411S0600
WASHER PLAIN,6MM
$1.78¢891
1
#11055
11055-1552
BRACKET,SEAT
$41.02¢20 510
1
#14092
14092-0046
COVER,IGNITION SWITCH
$57.94¢28 969
1
#14092A
14092-0217-19U
COVER,B BLACK
$260.18¢130 088
1
#51049
51049-0003
CAP TANK,FUEL
$114.99¢57 494
1
#51087
51087-5280-32G
TANK COMP FUEL,GREEN/EBONY
$2217.69¢1 108 847
1
#51087
51087-5279-32G
TANK COMP FUEL,GREEN/EBONY
$2217.69¢1 108 847
1
#51087
51087-5270-723
TANK COMP FUEL,C P BLUE
$1909.29¢954 644
1
#51087
51087-5269-723
TANK COMP FUEL,C P BLUE
$1909.29¢954 644
1
#51087
51087-5127-816
TANK COMP FUEL,C F RED
$1909.29¢954 644
1
#51087
51087-5126-H8
TANK COMP FUEL,EBONY
$1909.29¢954 644
1
#51087C
51087-5126-H8
TANK COMP FUEL,EBONY
$1909.29¢954 644
1
#51087
51087-5108-816
TANK COMP FUEL,C F RED
$1909.29¢954 644
1
#51087
51087-5107-H8
TANK COMP FUEL,EBONY
$1909.29¢954 644
1
#51087
51087-5107-660
TANK COMP FUEL,M S BLACK
No Disponible
1
#92022
92022-1977
WASHER,5.1X10X1.0
$3.31¢1 656
1
#92027
92027-034
COLLAR,8.8X12X17
$7.70¢3 852
1
#92037
92037-147
CLAMP,TUBE | [CA]
$6.72¢3 358
1
#92075
92075-1736
DAMPER
$5.91¢2 956
1
#92093
92093-1030
SEAL,FUEL TANK CAP
$7.11¢3 553
1
#92151
92151-1449
BOLT,SOCKET,6X10
$1.87¢937
1
#92161B
92161-0804
DAMPER,TANK COVER
$1.84¢920
1
#92161A
92161-0577
DAMPER,FUEL TANK
$31.34¢15 669
1
#92161
92161-0293
DAMPER,FUEL TANK
$7.16¢3 582
1
#92192
92192-0668
TUBE,BREATHER
$19.30¢9 649
1
