GEAR CHANGE MECHANISM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

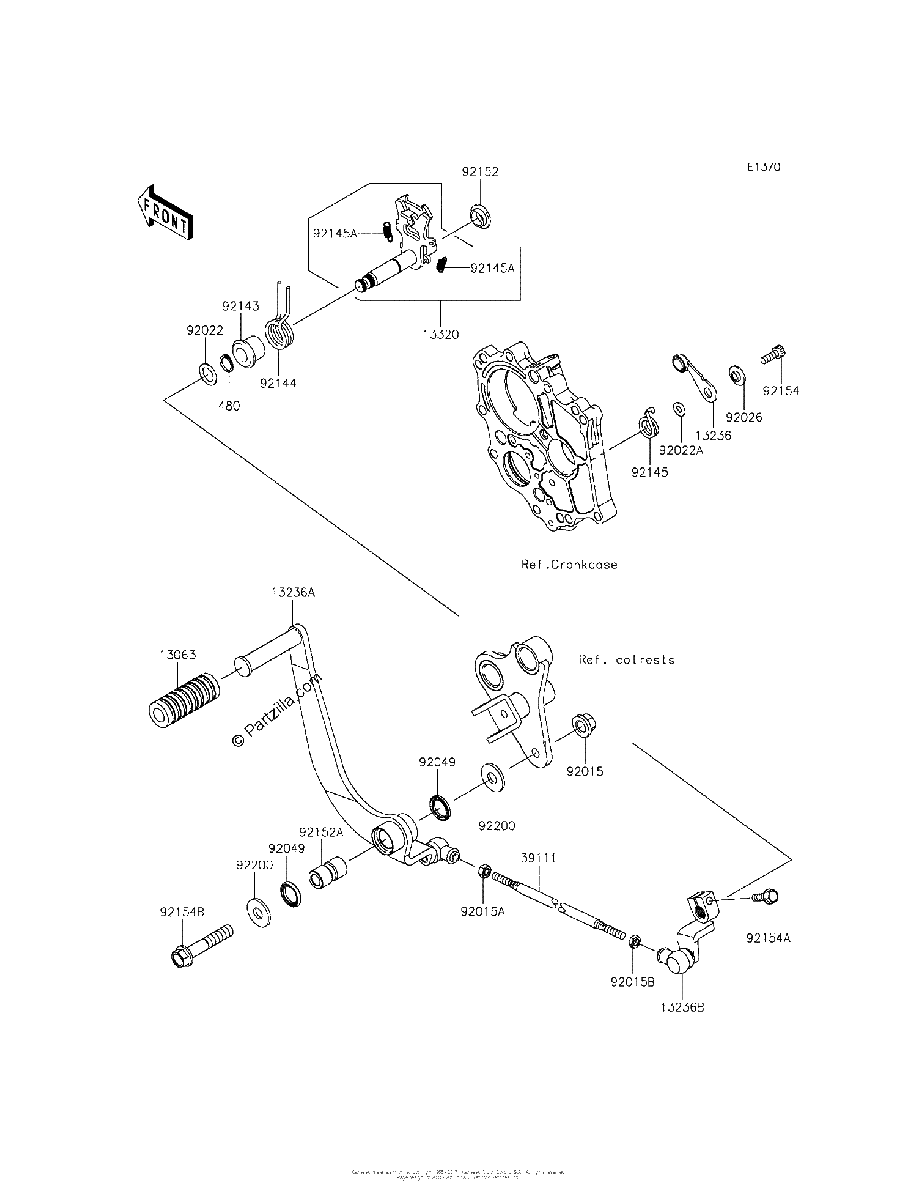

Diagrama de GEAR CHANGE MECHANISM

Repuestos

#480
480J1300
CIRCLIP-TYPE-C,13MM
$3.90¢1 950
1
#13063
13063-002
DAMPER,PEDAL
$4.47¢2 238
1
#13236
13236-0170
LEVER-COMP,POSITION
$10.58¢5 288
1
#13236B
13236-0756
LEVER COMP
$126.76¢63 381
1
#13236A
13236-0755
LEVER COMP,CHANGE PEDAL
$96.11¢48 056
1
#13320
13320-0032
LEVER Assembly,CHANGE SHAFT
$78.58¢39 288
1
#39111
39111-0332
ROD-TIE,L=205MM
$10.31¢5 156
1
#92015
92015-077
NUT,10MM
$4.65¢2 325
1
#92015B
92015-1444
NUT,LEFT HANDED,6MM
$4.65¢2 325
1
#92015A
92015-1443
NUT,6MM
$3.90¢1 950
1
#92022
92022-1496
WASHER,13.3X20X1
$3.90¢1 950
1
#92022A
92022-1827
WASHER,6X12.8X1.2
$4.65¢2 325
1
#92026
92026-1217
SPACER
$5.45¢2 725
1
#92049
92049-0093
SEAL OIL
$5.56¢2 781
1
#92143
92143-1498
COLLAR,RETURN SPRING
$10.55¢5 275
1
#92144
92144-1628
SPRING,CHANGE SHAFT RETURN
$10.70¢5 350
1
#92145A
92145-0703
SPRING,5.5X0.7X18
$3.79¢1 894
1
#92145
92145-0304
SPRING,POSITION
$3.85¢1 925
1
#92152A
92152-1883
COLLAR
$18.65¢9 325
1
#92152
92152-1075
COLLAR
$4.16¢2 081
1
#92154B
92154-1730
BOLT,FLANGED,10X54
$4.33¢2 163
1
#92154A
92154-0786
BOLT,FLANGED,6X20
$2.75¢1 375
1
#92154
92154-0235
BOLT,SOCKET,6X16
$2.71¢1 356
1
#92200
92200-0352
WASHER,11X26X2.6
$3.05¢1 525
1
