FRAME FITTINGS

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

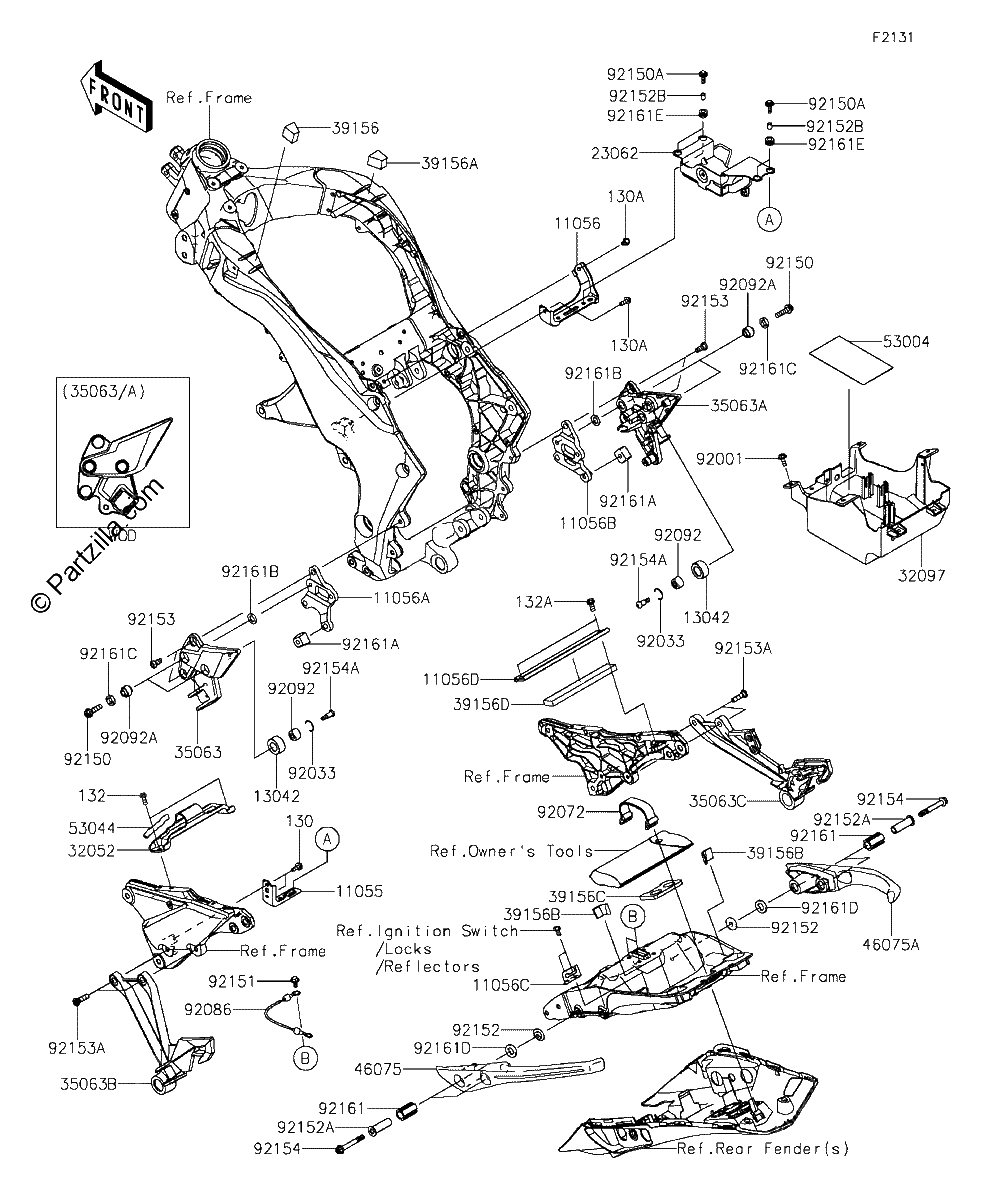

Diagrama de FRAME FITTINGS

Repuestos

#130
130BA0614
BOLT FLANGED,6X14
$1.26¢631
1
#130A
130BA0616
BOLT FLANGED,6X16
$1.26¢631
1
#132
132BA0616
BOLT FLANGED SMALL,6X16
$1.51¢756
1
#132A
132BA0816
BOLT FLANGED SMALL,8X16
$4.50¢2 250
1
#11055
11055-1951
BRACKET,REGULATOR
$9.59¢4 794
1
#11056
11056-0169
BRACKET,REGULATOR
$27.66¢13 831
1
#11056A
11056-0358
BRACKET,FR,LH
$54.26¢27 131
1
#11056B
11056-0359
BRACKET,FR,RH
$51.33¢25 663
1
#11056C
11056-2657
BRACKET,HELMET LOCK
$8.75¢4 375
1
#11056D
11056-3890
BRACKET,CROSS
$6.59¢3 294
1
#13042
13042-0709
WEIGHT
$20.75¢10 375
1
#23062
23062-0785
BRACKET-COMP,ABS
$79.76¢39 881
1
#32052
32052-0719
BRACKET TANK
$47.24¢23 619
1
#32097
32097-0042
CASE BATTERY
$138.81¢69 406
1
#35063
35063-0726-18R
STAY,Front,Left Hand,F S BLACK
$158.64¢79 319
1
#35063A
35063-0905-18R
STAY,Front,Right Hand,F S BLACK
$183.38¢91 688
1
#35063B
35063-0906-18R
STAY,Rear,Left Hand,F S BLACK
$164.40¢82 200
1
#35063C
35063-0907-18R
STAY,Rear,Right Hand,F S BLACK
$141.06¢70 531
1
#39156
39156-0660
PAD,LH
$10.94¢5 469
1
#39156A
39156-0661
PAD,RH
$10.94¢5 469
1
#39156B
39156-0749
PAD,20X30X3
$2.54¢1 269
1
#39156C
39156-0752
PAD,TOOL BOTTOM
$4.26¢2 131
1
#39156D
39156-1780
PAD,25X170X10
$5.78¢2 888
1
#46075A
46075-0098
GRIP,TANDEM,RH
$139.59¢69 794
1
#46075
46075-0097
GRIP,TANDEM,LH
$139.59¢69 794
1
#53004
53004-0560
MAT,BATTERY
$10.36¢5 181
1
#53044
53044-0565
TRIM
$3.14¢1 569
1
#92001
92001-1342
BOLT,6X18
No Disponible
1
#92033
92033-1102-SP
RING-SNAP,OD=22.2
$3.88¢1 938
1
#92072
92072-071
BAND,L=100
$10.81¢5 406
1
#92086
92086-0019
WIRE,HELMET LOCK
$20.75¢10 375
1
#92092
92092-0554
BUSHING-RUBBER
$24.98¢12 488
1
#92092A
92092-1018-SP
BUSHING RUBBER,8.4X20X18
$15.77¢7 887
1
#92150
92150-1156
BOLT,SOCKET,8X30
$6.47¢3 238
1
#92150A
92150-1339
BOLT,6X20
$4.36¢2 181
1
#92151
92151-1703
BOLT,FLANGED,6X13
$3.93¢1 963
1
#92152
92152-0980
COLLAR,8X25X4.6
$17.90¢8 950
1
#92152A
92152-1629
COLLAR,9.2X13.8X38.5
$7.28¢3 638
1
#92152B
92152-1782
COLLAR,6.1X8.1X9
$5.64¢2 819
1
#92153
92153-1621
BOLT,SOCKET,8X20
$2.04¢1 019
1
#92153A
92153-1624
BOLT,SOCKET,8X30
$3.89¢1 944
1
#92154
92154-0259
BOLT,SOCKET,8X60
$8.82¢4 413
1
#92154A
92154-0800
BOLT,SOCKET,6MM
$6.14¢3 069
1
#92161
92161-0663
DAMPER
$3.70¢1 850
1
#92161A
92161-0942
DAMPER,STEP STAY
$5.21¢2 606
1
#92161B
92161-0943
DAMPER,12.5X21X2
$2.46¢1 231
1
#92161C
92161-0944
DAMPER,12.5X20X4
$2.75¢1 375
1
#92161D
92161-0959
DAMPER,14.5X25X3.5
$4.64¢2 319
1
#92161E
92161-1584
DAMPER,8.2X16X8.3
$1.72¢862
1
