FUEL TANK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

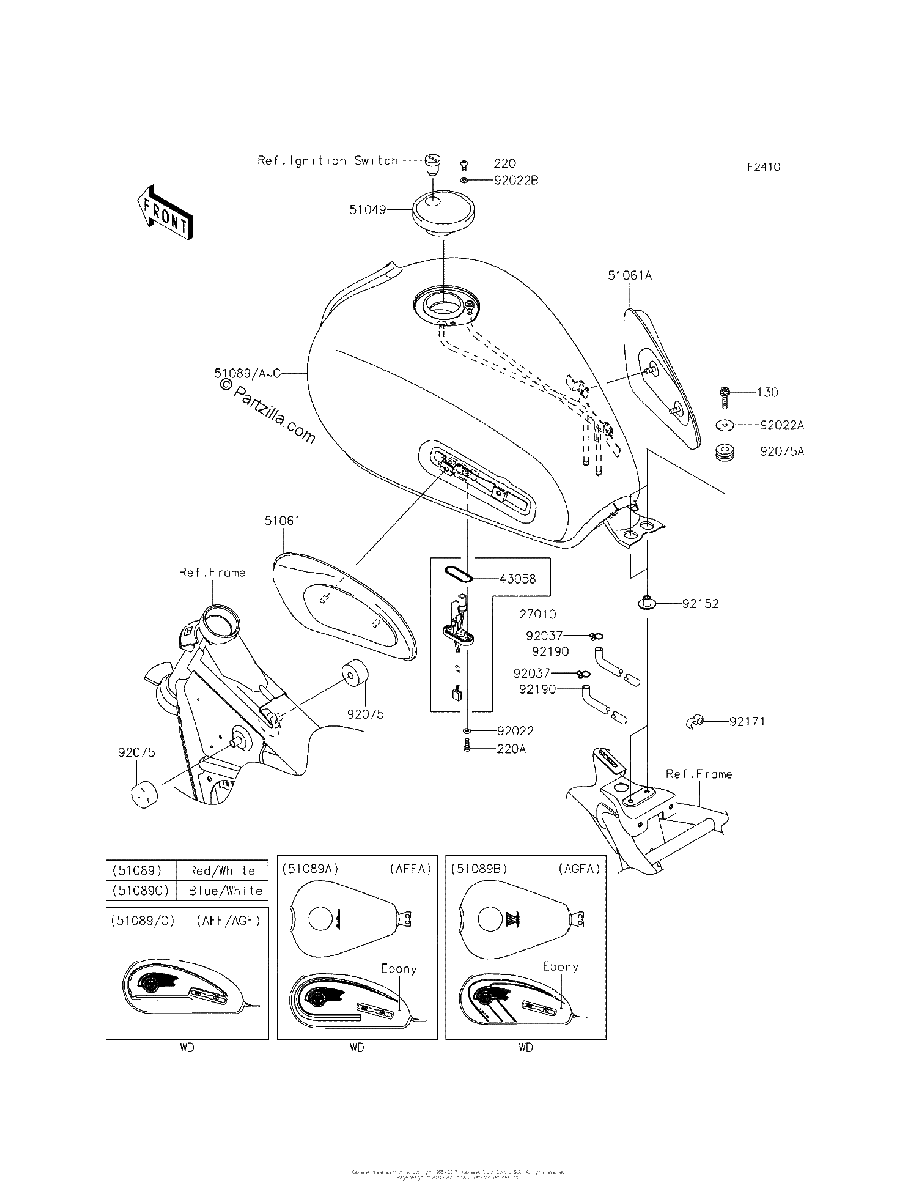

Diagrama de FUEL TANK

Repuestos

#130
130BA0625
BOLT FLANGED,6X25
$1.26¢631
1
#220
220AA0510
SCREW-PAN-CROS,5X10
$0.84¢419
1
#220A
220AA0514
SCREW-PAN-CROS,5X14
$4.40¢2 200
1
#27010
27010-0718
SWITCH,FUEL LEVEL
$150.85¢75 425
1
#43058
43058-1004
RING,FUEL LEVEL SWITCH
$7.99¢3 994
1
#51049
51049-1132
CAP-TANK,FUEL
$140.96¢70 481
1
#51061
51061-1057
PAD-KNEE,LH
$63.14¢31 569
1
#51061A
51061-1058
PAD KNEE,Right Hand
$63.14¢31 569
1
#51089C
51089-5426-54F
TANK COMP FUEL,BLUE/WHITE
$2709.05¢1 354 525
1
#51089
51089-5426-54F
TANK COMP FUEL,BLUE/WHITE
$2709.05¢1 354 525
1
#51089
51089-5403-H8
TANK COMP FUEL,EBONY
$2324.84¢1 162 419
1
#51089
51089-5130-H8
TANK COMP FUEL,EBONY
$2708.84¢1 354 419
1
#51089
51089-5129-51U
TANK COMP FUEL,RED/WHITE
$2180.15¢1 090 075
1
#92022B
92022-1977
WASHER,5.1X10X1.0
$3.60¢1 800
1
#92022A
92022-1690
WASHER,6.5X24X2
$3.90¢1 950
1
#92022
92022-1023
WASHER,5.2X10X1.5
$3.90¢1 950
1
#92037
92037-147
CLAMP,TUBE | [CA]
$7.30¢3 650
1
#92075A
92075-1690
DAMPER,10X24X12
$4.96¢2 481
1
#92075
92075-125
DAMPER,FUEL TANK
$6.09¢3 044
1
#92152
92152-0365
COLLAR
$1.35¢675
1
#92171
92171-1184
CLAMP | [CA]
$2.38¢1 188
1
#92190
92190-1453
TUBE,DRAIN
$23.41¢11 706
1
