COWLING CENTER EFF EJF

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

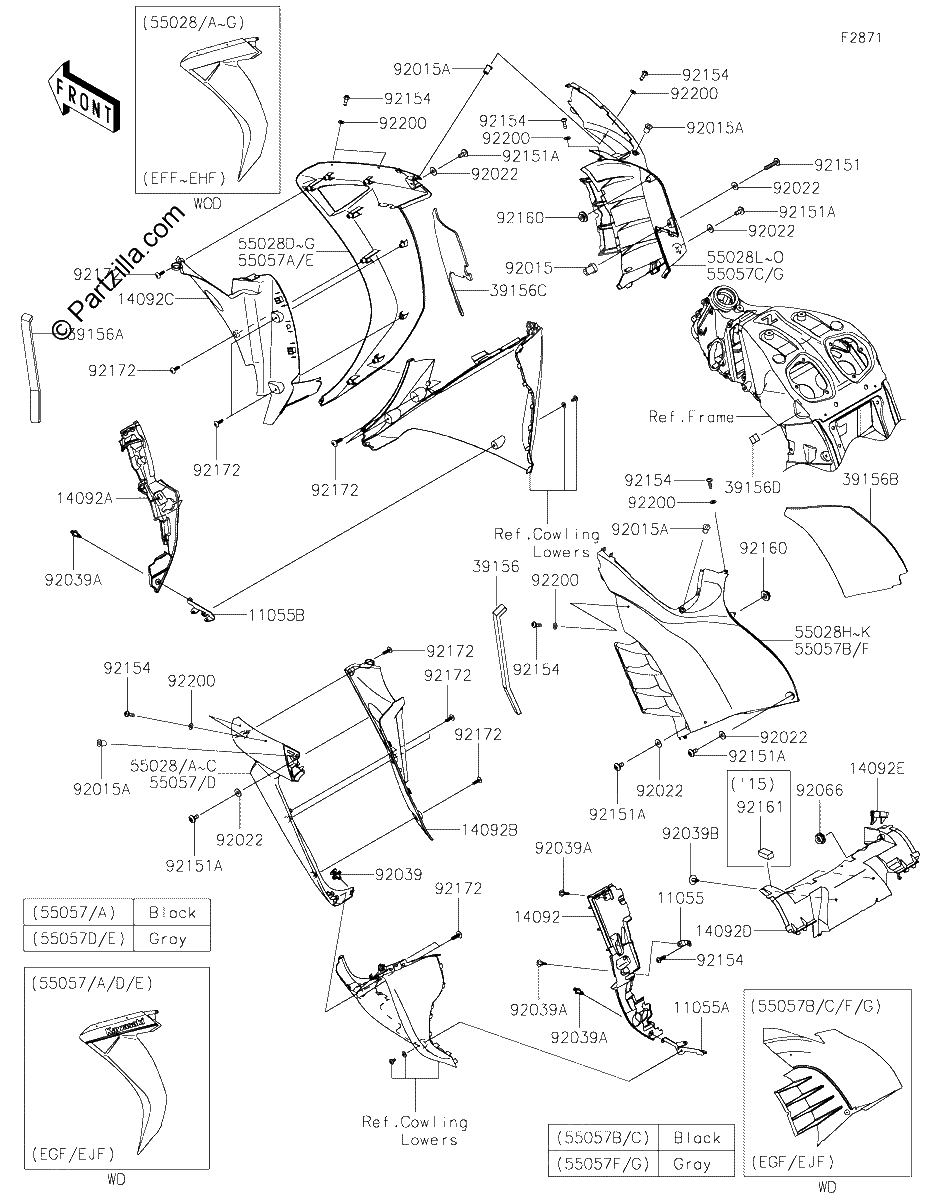

Diagrama de COWLING CENTER EFF EJF

Repuestos

#11055
11055-1837
BRACKET,RESERVOIR
$3.79¢1 897
1
#11055A
11055-1838
BRACKET,Lower COWLING,Left Hand
$12.67¢6 336
1
#11055B
11055-1839
BRACKET,Lower COWLING,Right Hand
$6.19¢3 093
1
#14092
14092-0098
COVER,HEAT GUARD,Left Hand
$62.35¢31 176
1
#14092A
14092-0099
COVER,HEAT GUARD,Right Hand
$62.35¢31 176
1
#14092B
14092-0102
COVER,SHROUD,Left Hand
$84.41¢42 205
1
#14092C
14092-0103
COVER,SHROUD,Right Hand
$84.41¢42 205
1
#14092D
14092-0135
COVER,HEAT GUARD,Front
$97.16¢48 582
1
#14092E
14092-0136
COVER,RADIATOR CAP
$12.41¢6 204
1
#39156C
39156-0596
PAD,CNT COWLING,Right Hand
$23.40¢11 701
1
#39156
39156-0591
PAD,SHROUD,Left Hand
$2.99¢1 495
1
#39156A
39156-0593
PAD,SHROUD,Right Hand
$2.99¢1 495
1
#39156B
39156-0595
PAD,CNT COWLING,Left Hand
$23.40¢11 701
1
#39156D
39156-1852
PAD,20X20X14
$2.99¢1 495
1
#55028L
55028-0389-660
COWLING,CNT,Right Hand,M S BLACK
$508.78¢254 391
1
#55028L
55028-0389-25X
COWLING,CNT,Right Hand,M M GRAY
$508.10¢254 052
1
#55028L
55028-0389-51P
COWLING,CNT,Right Hand,C L GREEN
$508.78¢254 391
1
#55028L
55028-0389-25U
COWLING,CNT,Right Hand,C I BLUE
$508.10¢254 052
1
#55028H
55028-0388-660
COWLING,CNT,Left Hand,M S BLACK
$508.78¢254 391
1
#55028
55028-0320-25U
COWLING,SIDE,Left Hand,C I BLUE
$344.93¢172 466
1
#55028
55028-0320-25X
COWLING,SIDE,Left Hand,M M GRAY
$344.93¢172 466
1
#55028
55028-0320-51P
COWLING,SIDE,Left Hand,C L GREEN
$345.39¢172 695
1
#55028
55028-0320-660
COWLING,SIDE,Left Hand,M S BLACK
$345.39¢172 695
1
#55028D
55028-0321-25U
COWLING,SIDE,Right Hand,C I BLUE
$307.77¢153 887
1
#55028D
55028-0321-25X
COWLING,SIDE,Right Hand,M M GRAY
$344.93¢172 466
1
#55028D
55028-0321-51P
COWLING,SIDE,Right Hand,C L GREEN
$345.39¢172 695
1
#55028D
55028-0321-660
COWLING,SIDE,Right Hand,M S BLACK
$345.39¢172 695
1
#55028H
55028-0388-25U
COWLING,CNT,Left Hand,C I BLUE
$508.10¢254 052
1
#55028H
55028-0388-25X
COWLING,CNT,Left Hand,M M GRAY
$508.10¢254 052
1
#55028H
55028-0388-51P
COWLING,CNT,Left Hand,C L GREEN
$508.78¢254 391
1
#55057
55057-5002-660
COWLING,SIDE,Left Hand,M S BLACK
$612.77¢306 383
1
#55057A
55057-5003-660
COWLING,SIDE,Right Hand,M S BLACK
$612.77¢306 383
1
#55057B
55057-5004-660
COWLING,CNT,Left Hand,M S BLACK
$627.29¢313 645
1
#55057C
55057-5005-660
COWLING,CNT,Right Hand,M S BLACK
$627.29¢313 645
1
#55057
55057-5474-51A
COWLING,SIDE,Left Hand,M C GRAY
$612.77¢306 383
1
#55057A
55057-5475-51A
COWLING,SIDE,Right Hand,M C GRAY
$612.77¢306 383
1
#55057B
55057-5476-51A
COWLING,CNT,Left Hand,M C GRAY
$627.29¢313 645
1
#55057C
55057-5477-51A
COWLING,CNT,Right Hand,M C GRAY
$658.50¢329 251
1
#92015A
92015-1757
NUT,WELL,5MM
$6.68¢3 341
1
#92015
92015-1692
NUT,RUBBER,6MM
$6.72¢3 358
1
#92022
92022-1143
WASHER,6.5X16X1
$3.59¢1 794
1
#92039
92039-0014
RIVET,HOLE 8MM
$2.74¢1 368
1
#92039A
92039-0051
RIVET
$4.24¢2 122
1
#92039B
92039-1289
RIVET
$2.37¢1 185
1
#92066
92066-1306
PLUG
$4.97¢2 484
1
#92151
92151-1605
BOLT,SOCKET,6X30
$2.01¢1 006
1
#92151A
92151-1654
BOLT,SOCKET,6X14
$1.49¢747
1
#92154
92154-0209
BOLT,SOCKET,5X16
$2.33¢1 167
1
#92160
92160-1613
DAMPER
$3.40¢1 702
1
#92161
92161-1608
DAMPER,20X40X15
$1.43¢713
1
#92172
92172-0238
SCREW,TAPPING,5X16
$1.00¢500
1
#92200
92200-0006
WASHER,NYLONE,5.3X11.5X0.5
$1.63¢816
1
