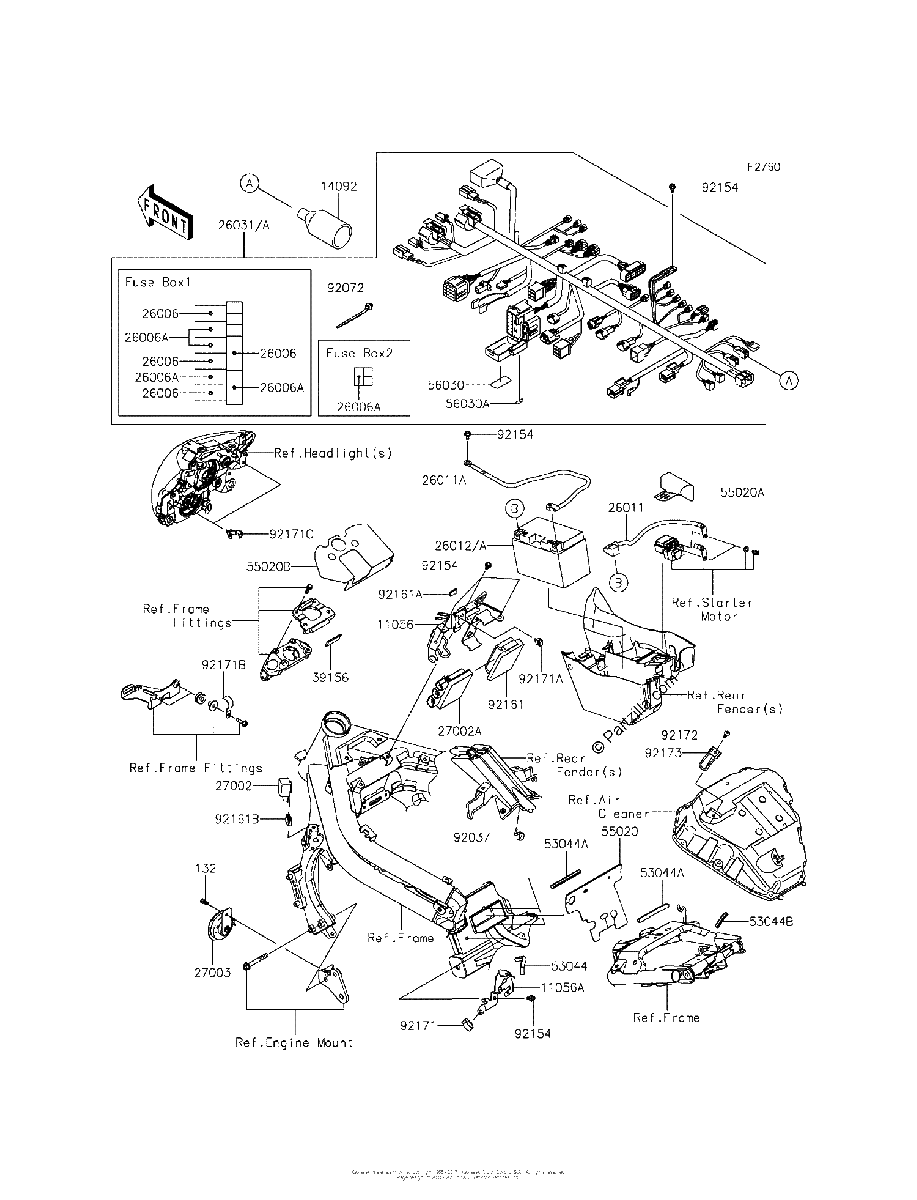

CHASSIS ELECTRICAL EQUIPMENT
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#132
BOLT-FLANGED-SMALL,6X12
$1.78¢891
#11056
BRACKET,RELAY Assembly
$34.47¢17 233
#11056A
BRACKET,PIVOT,UPP,LH
$23.38¢11 690
#14092
COVER
$11.37¢5 687
#26006
FUSE,MINI BLADE,15A,BLUE
$5.75¢2 875
#26006A
FUSE,MINI BLADE,10A,RED
$4.02¢2 012
#26011
WIRE-LEAD,BATTERY(+)
$46.38¢23 190
#26011A
WIRE LEAD,BATTERY( )
$40.65¢20 326
#26012A
BATTERY,YT12A BS,12V 10AH
No Disponible
#26012
BATTERY,YT12A-BS,12V
No Disponible
#26012
BATTERY,YT12A BS,12V 10AH
No Disponible
#26031
HARNESS,MAIN
$934.41¢467 205
#26031A
HARNESS,MAIN
$908.78¢454 388
#26031
HARNESS,MAIN
$908.78¢454 388
#27002
RELAY Assembly,SIGNAL LAMP
$60.36¢30 182
#27002A
RELAY-ASSY,BOX
No Disponible
#27003
HORN
$76.27¢38 134
#39156
PAD,20X40X3
$1.14¢569
#53044B
TRIM,L=48
$3.51¢1 754
#53044A
TRIM,L=85
$11.45¢5 727
#53044
TRIM
$4.45¢2 225
#55020A
GUARD,MG. SWITCH
$9.31¢4 658
#55020B
GUARD,FUSE BOX
$14.33¢7 165
#55020
GUARD,AIR CLEANER
$7.30¢3 651
#56030A
LABEL,FUSE BOX2
$4.22¢2 110
#56030
LABEL,FUSE BOX1
$4.22¢2 110
#92037
CLAMP,SPEED,L=58
$5.91¢2 956
#92072
BAND
$3.40¢1 702
#92154
BOLT,FLANGED,6X12
$1.81¢903
#92161A
DAMPER,20X20,T1.0
$0.91¢454
#92161B
DAMPER,15X25X8.5
$1.79¢897
#92161
DAMPER,RELAY BOX
$10.79¢5 394
#92171
CLAMP,BRAKE HOSE
$3.51¢1 754
#92171A
CLAMP
$3.78¢1 892
#92171B
CLAMP,L=60
$2.22¢1 110
#92171C
CLAMP,13MM DIA.
$1.83¢914
#92172
SCREW,TAPPING,5X16
$1.71¢857
#92173
CLAMP,AIR CLEANER
$5.32¢2 662
