COWLING

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

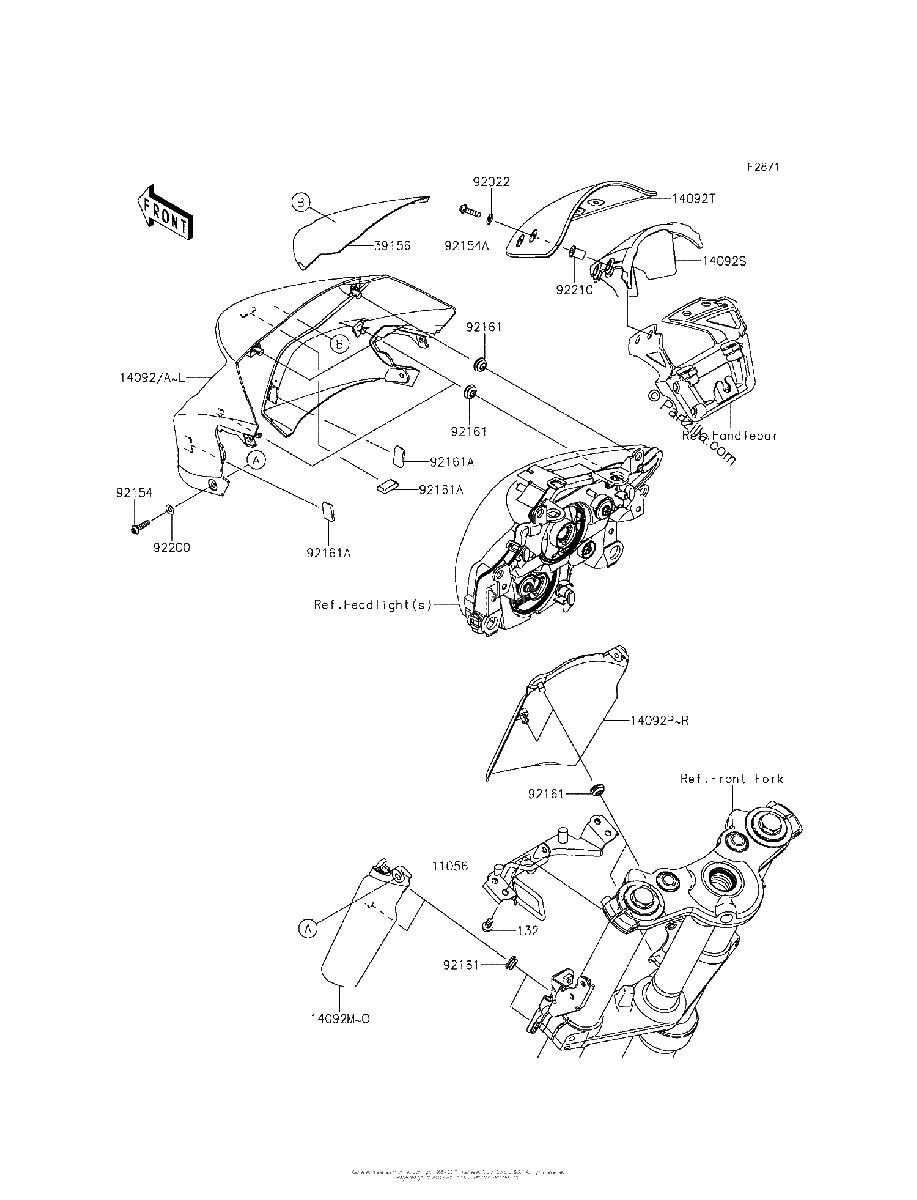

Diagrama de COWLING

Repuestos

#132
132BA0612
BOLT-FLANGED-SMALL,6X12
$1.16¢581
1
#11056
11056-0794
BRACKET,HEAD LAMP
No Disponible
1
#14092S
14092-0737
COVER,METER,LWR
No Disponible
1
#14092O
14092-0735-739
COVER,FORK,Left Hand,M F S BLACK
$96.88¢48 438
1
#14092P
14092-0736-15V
COVER,FORK,Right Hand,M F S BLACK
No Disponible
1
#14092Q
14092-0736-660
COVER,FORK,Right Hand,M S BLACK
$96.88¢48 438
1
#14092P
14092-0736-660
COVER,FORK,Right Hand,M S BLACK
$96.88¢48 438
1
#14092P
14092-0736-739
COVER,FORK,RH,M.F.S.BLACK
$96.88¢48 438
1
#14092R
14092-0736-739
COVER,FORK,RH,M.F.S.BLACK
$96.88¢48 438
1
#14092T
14092-0771
COVER,METER,Upper
No Disponible
1
#14092M
14092-0735-660
COVER,FORK,Left Hand,M S BLACK
$96.88¢48 438
1
#14092M
14092-0735-739
COVER,FORK,Left Hand,M F S BLACK
$96.88¢48 438
1
#14092N
14092-0735-660
COVER,FORK,Left Hand,M S BLACK
$96.88¢48 438
1
#14092
14092-0734-51A
COVER,HEAD LAMP,M.C.GRAY
$220.31¢110 153
1
#14092
14092-0734-15S
COVER,HEAD LAMP,P S WHITE
$224.69¢112 343
1
#14092
14092-0734-15Z
COVER,HEAD LAMP,M S BLACK
$220.60¢110 302
1
#14092
14092-0734-25Y
COVER,HEAD LAMP,P S WHITE
$210.40¢105 202
1
#14092
14092-0734-35E
COVER,HEAD LAMP,P S YELLOW
$220.60¢110 302
1
#14092
14092-0734-35K
COVER,HEAD LAMP,C F B GREEN
$220.60¢110 302
1
#14092
14092-0734-35P
COVER,HEAD LAMP,C L GREEN
$214.39¢107 197
1
#14092
14092-0734-40X
COVER,HEAD LAMP,P F S WHITE
$220.60¢110 302
1
#14092H
14092-0734-51A
COVER,HEAD LAMP,M.C.GRAY
$220.31¢110 153
1
#14092M
14092-0735-15V
COVER,FORK,Left Hand,M F S BLACK
$97.00¢48 501
1
#14092I
14092-0734-51P
COVER,HEAD LAMP,C L GREEN
$210.14¢105 070
1
#14092
14092-0734-51P
COVER,HEAD LAMP,C L GREEN
$210.14¢105 070
1
#14092
14092-0734-53Q
COVER,HEAD LAMP,U.C.WHITE
$220.31¢110 153
1
#14092J
14092-0734-53Q
COVER,HEAD LAMP,U.C.WHITE
$220.31¢110 153
1
#14092
14092-0734-660
COVER,HEAD LAMP,M S BLACK
$220.60¢110 302
1
#14092
14092-0734-739
COVER,HEAD LAMP,M F S BLACK
No Disponible
1
#14092
14092-0734-B1
COVER,HEAD LAMP,F RED
$220.60¢110 302
1
#39156
39156-0844
PAD
No Disponible
1
#92022
92022-1521
WASHER,NYLON,5.3X11.5X1.5
$3.59¢1 794
1
#92154
92154-0210
BOLT,SOCKET,5X20
$1.84¢920
1
#92154A
92154-0919
BOLT,SOCKET,5X20
No Disponible
1
#92161
92161-0631
DAMPER
$6.75¢3 375
1
#92161A
92161-1367
DAMPER,12X23
$1.14¢569
1
#92200
92200-1480
WASHER,NYLON,5.3X11.5X0.5
$1.44¢719
1
#92210
92210-0498
NUT,WELL,5MM
$6.68¢3 341
1
