FRONT FORK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

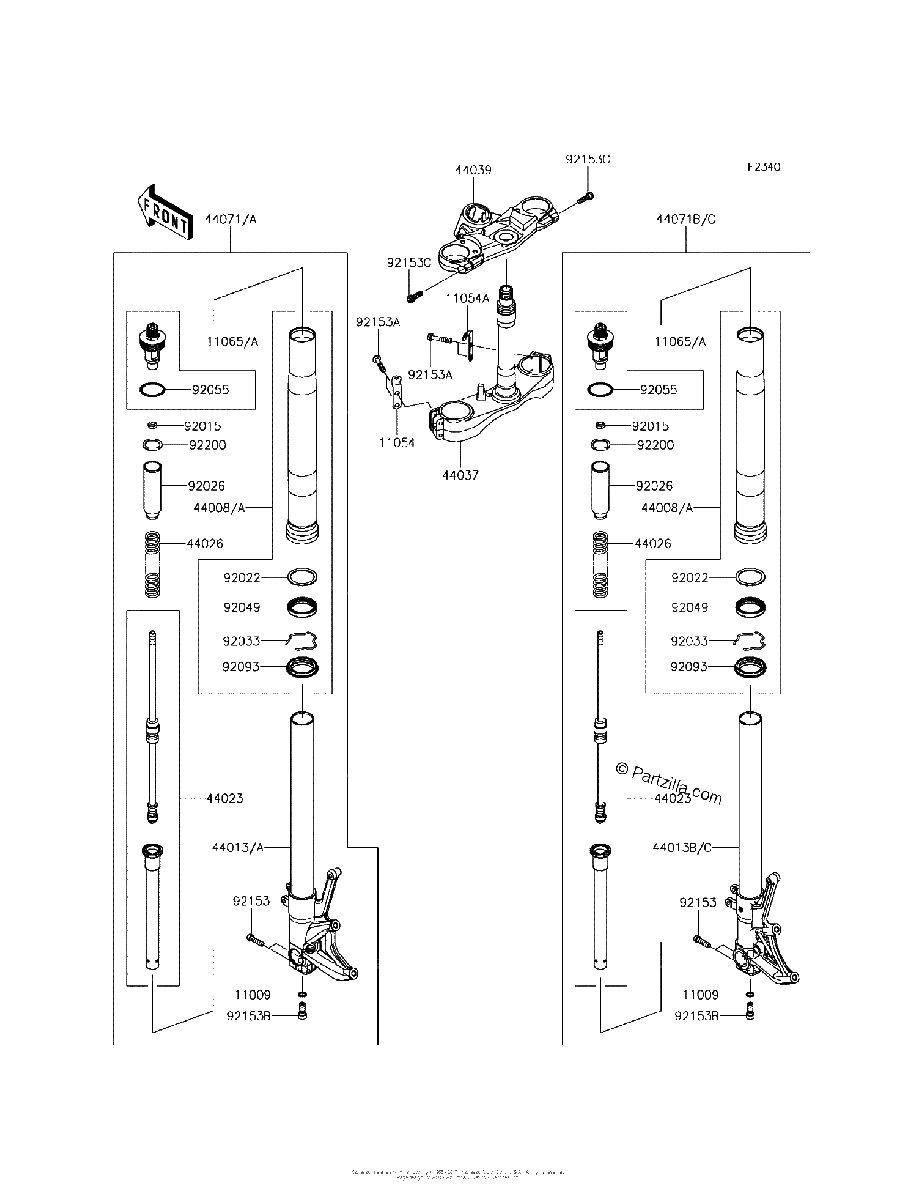

Diagrama de FRONT FORK

Repuestos

#11009
11009-1325
GASKET,FORK CYLINDER
No Disponible
1
#11054
11054-0480
BRACKET,HARNESS CLAMP,Left Hand
$10.70¢5 348
1
#11054A
11054-0481
BRACKET,UNDER BRACKET,Right Hand
$10.70¢5 348
1
#11065
11065-0757-58F
CAP,SILVER
$255.55¢127 776
1
#11065
11065-0757-58R
CAP,SILVER
$260.35¢130 174
1
#11065A
11065-0757-58R
CAP,SILVER
$260.35¢130 174
1
#44008
44008-0052-11G
PIPE FORK OUTER,GRAY
$561.06¢280 531
1
#44008
44008-0052-499
PIPE FORK OUTER,A BLACK
$561.60¢280 801
1
#44008A
44008-0052-499
PIPE FORK OUTER,A BLACK
$561.60¢280 801
1
#44013
44013-0271-56J
PIPE FORK INNER,Left Hand,F S BLACK
$728.12¢364 061
1
#44013
44013-0271-58N
PIPE FORK INNER,Left Hand,F S BLACK
$728.12¢364 061
1
#44013C
44013-0272-58N
PIPE FORK INNER,Right Hand,F S BLACK
$728.12¢364 061
1
#44013A
44013-0271-58N
PIPE FORK INNER,Left Hand,F S BLACK
$728.12¢364 061
1
#44013B
44013-0272-56J
PIPE FORK INNER,Right Hand,F S BLACK
$728.12¢364 061
1
#44013B
44013-0272-58N
PIPE FORK INNER,Right Hand,F S BLACK
$728.12¢364 061
1
#44023
44023-0096
CYLINDER SET FORK
$522.40¢261 200
1
#44026
44026-0160
SPRING-FRONT FORK
$137.41¢68 707
1
#44037
44037-0039
HOLDER FORK UNDER
$859.06¢429 531
1
#44039
44039-0113-18R
HOLDER FORK UPPER,F S BLACK
$347.43¢173 713
1
#44071C
44071-1142-58Q
DAMPER Assembly,FORK,Right Hand,BLACK
$1372.26¢686 130
1
#44071A
44071-1141-58Q
DAMPER Assembly,FORK,Left Hand,BLACK
$1372.26¢686 130
1
#44071B
44071-1142-56L
DAMPER Assembly,FORK,Right Hand,GRAY
$1398.00¢698 999
1
#44071B
44071-1142-58Q
DAMPER Assembly,FORK,Right Hand,BLACK
$1372.26¢686 130
1
#44071
44071-1141-56L
DAMPER Assembly,FORK,Left Hand,GRAY
$1398.00¢698 999
1
#44071
44071-1141-58Q
DAMPER Assembly,FORK,Left Hand,BLACK
$1372.26¢686 130
1
#92015
92015-1905
NUT
$19.75¢9 873
1
#92022
92022-1299
WASHER
$7.84¢3 922
1
#92026
92026-0736
SPACER
$16.10¢8 050
1
#92033
92033-1077
RING SNAP
$4.53¢2 266
1
#92049
92049-1522
SEAL OIL,FORK OUTER TUBE
$22.39¢11 195
1
#92055
92055-1333
RING-O,FORK,AIR TUBE
$5.43¢2 714
1
#92093
92093-1480
SEAL,FORK OUTER TUBE
$16.80¢8 401
1
#92153A
92153-0484
BOLT,FLANGED,8X40
$2.85¢1 426
1
#92153B
92153-0548
BOLT,SOCKET,10X25
$5.28¢2 639
1
#92153C
92153-1625
BOLT,SOCKET,8X25
$4.24¢2 122
1
#92153
92153-0006
BOLT,SOCKET,8X40
$2.73¢1 363
1
#92200
92200-0085
WASHER
$8.08¢4 042
1
